Moog Minimoog Model D 2022
5.979,00 €*
Verfügbarkeit: Bitte kontaktieren Sie uns in dringenden Fällen.
Hersteller:
Moog
Produktinformationen "Moog Minimoog Model D 2022"

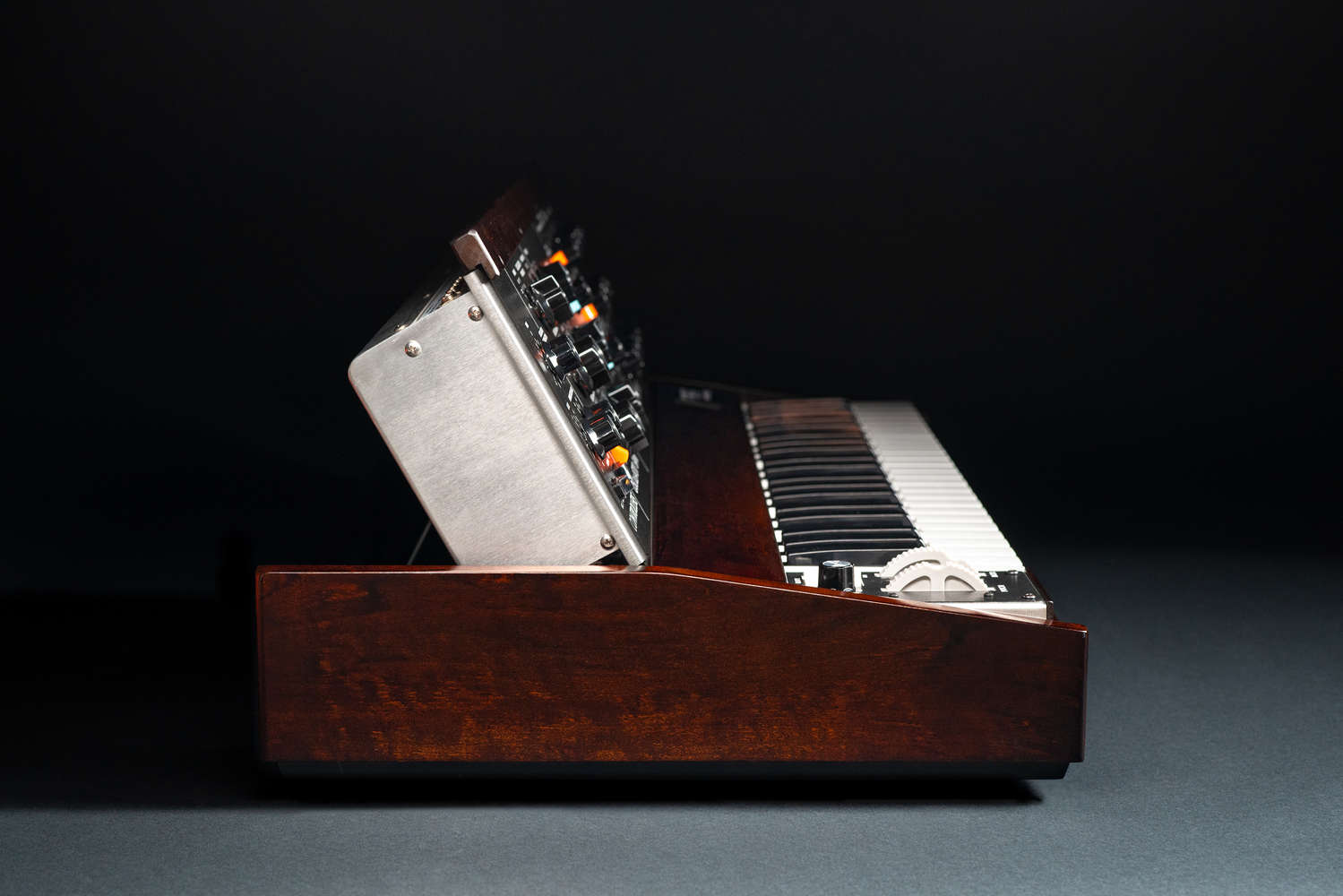

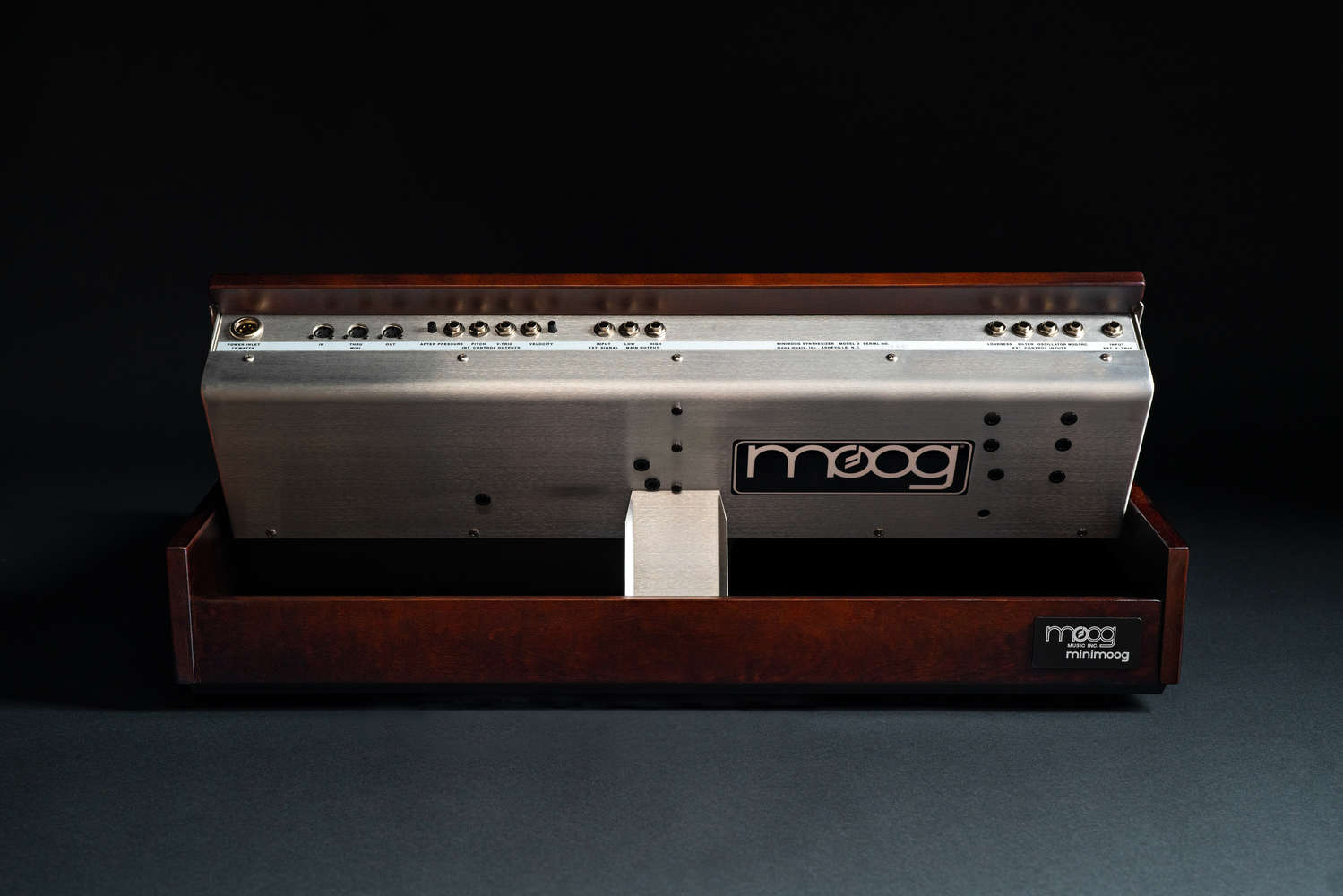

Minimoog Model D
Built to last a lifetime, each new Minimoog Model D delivers the revered quality, undefinable feel, and authentic sound of a pristine vintage Moog.
Placing the utmost importance on high-quality materials, all components are carefully sourced and crafted to capture the indescribable feeling of the original Minimoog Model D.
This reissue features the identical sound engine and signal path of the 1970s Model D plus a series of popular modifications.
Sounding as vibrant as ever, the Model D retains the exact component placement and through-hole design of a 1970s-era Minimoog Model D.
Specifications
- Number of Keys: 44
- Keyboard Range: F0 to C4
- Keyboard Action: Synthesizer (Spring)
- Note Priority: (Low, High, Last): User Selectable
- Sound Sources: 3x Oscillators, Noise Generator and External Audio Input
- Oscillators Frequency Range: 0.1 to 20 kHz (In Six Overlapping Ranges)
- Oscillator Stability: (short term) > 0.25 %
- Oscillator Waveforms: Triangle, Triangle-Sawtooth (Oscillator-1, Oscillator-2), Reverse Sawtooth (Oscillator-3), Sawtooth, Rectangle, Wide Pulse and Narrow Pulse.
- Noise Generator: White and Pink
- LFO Rate: 0.05Hz to 200 Hz
- LFO Waveform: Triangle (knob down); Square (knob up)
- External Modulation Input Range: +10 millivolts to +2 volts
- External Modulation Input Impedance: 1MEG Ohms
- Filter Type: Voltage Controlled Low Pass (Ladder Filter)
- Filter Frequency Range: 10 Hz to 20 kHz
- Filter Slope: 24 dB per Octave
- Filter Keyboard Tracking: ⅓, ⅔, 1:1
- Contour Attack Time: 1 millisecond to 10 seconds
- Contour Decay Time: 4 milliseconds to >35 seconds
- Contour Sustain Level: 0 to 100% of Contour peak
- Filter Contour Width: 0 to 4 Octaves
- Voltage Controlled Amplifier: Loudness Contour Dynamic Range 80 dB
- External Audio Input Voltage: +10 millivolts (min); +10 volt (max.)
- External Audio Input Nominal Impedance: 1000K Ohms
- High Audio Output: Typical Voltage: 0.5 volts / Maximum Voltage: 4.2 volts (peak-to-peak)
- High Audio Output Nominal Impedance: 3K Ohms
- Low Audio Output: (30 dB below High level): Typical Voltage: 15 millivolts
- Low Audio Output Nominal Impedance: 1K Ohms
- Headphone Output Voltage: Maximum 0.3 volts
- Headphone Output Impedance: 8 Ohms
- Glide Rate: 1 millisecond to 10 seconds
- Pitch bend range: (+/-) Perfect 5th
- After PRessure CV Output (¼”TS): 0 to +5 volts with user adjustable trimpot
- Pitch CV Output (¼”TS): -3 volts to +7 volts (C=0 volts)
- Gate Output (¼”TS): 0 to +5 volts
- Velocity Output (¼”TS): Selectable 0 to +5 volts or 0 to +10 volts with user adjustable trimpot.
- Loudness Input (¼”TRS): 0 to +5 volts; +5 volts = Unity Gain (Works with Moog EP-3 Expression Pedal)
- Filter Cutoff Input (¼”TRS): 1 volt per octave of change (Works with Moog EP-3 Expression Pedal)
- Oscillator Pitch Input (¼”TRS): 1 volt per octave of change (Works with Moog EP-3 Expression Pedal)
- Modulation Source Input (¼”TRS): Ring=Noise Send; Tip=Modulation Receive (This jack makes a normalled connection with no cable present.)
- Trigger Input (¼”TS): +5 volt V-Trigger Activates both Contour Generators
- Midi Input (5-Pin DIN): Note On, Note #, Pitch Wheel, Mod Wheel
- Midi Output (5-Pin DIN): Note On, Note #, Pitch Wheel, Mod Wheel, Velocity, Aftertouch
- MIDI THRU (5-pin DIN): Mirror of the MIDI In signal
- External Power Supply: Self-Switching; 100-240 volts; 50/60 Hz; <12 Watt nominal consumption. (Locking XLR-4 connector.)
- Dimensions: (with panel lowered): Width: 28.625" / 727 mm, Depth: 17.125" / 435 mm, Height: 5.75" / 146 mm.
- Net Weight: 32 lbs. / 14.5 kg.
- Storage Temperatur: 5F to 140F (2C to 60C)
- Nominal Operating Temperatur: 10 - 35 C (50 -95 F)
- Operating Temperatur: 10 - 50 C (50 - 122 F)
Specifications Subject To Change Without Notice
