Grenzflächenmikrofone

With room acoustics in mind, a classic PZM microphone that may be laid on the floor in front of the source was developed. The microphone performs over a wide voltage range (from 10 to 48 V) has a symmetrical design and includes an XLR connector. This product imparts excellent transient response plus extremely wide, smooth frequency response.         Press: DRUM! Magazine June 2001 MBNM 622:ìIt (MBNM 622) was pretty incredible.î K. Stackpole specifications frequency response10 - 26.000 Hz directional characteristic omni-directional sensitivity of field idling 1 k at 1 kHz 5 mV / Pa electrical impedance200 ? nominal load impedance = 800 max. spl - 0,5 % THD at 1 k 130 dB phantom power DIN 45596 16 - 48 V feed current0,5 mA connector XLR DIN 45599 Pin 1 shield, Pin 2+, Pin 3-

An MBHO original, the MBNM 622 PZM is based on the Jecklin disc. The Jecklin disc provides a natural stereophony, combining the hemispherical attributes of the planer (PZM). The MBNM 622 has become a standard for recording high quality samples. In many cases this stereo PZM can replace the need for con-ventional microphones. Voltages from 10 to 48 V are accommodated with XLR connectors on each output.Performance that truly belies the entry-level price,point and shoot! specifications frequency response10 - 26.000 Hz directional characteristicomni-directional sensitivity of field idling 1 k? at 1 kHz 5 mV / Pa electrical impedance200 nominal load impedance = 800 max. spl - 0,5 % THD at 1 k? 130 dB phantom power DIN 45596 16 - 48 V feed current 2 x 0,5 mA connector XLR DIN 45599 / Pin 1 shield / Pin 2 NF+ /Pin 3 NF-

The MBNM 630 is a half-cardioid true con-denser PZM in an ultra compact sleek Nextel finish. The two component mat finish is non reflective. In addition to the non-skid pad on the bottom, the unit has a screwable housing made of solid brass.This model exhibits extreme stability and very low noise by any known reference. The MBNM 630 is essential in discrete settings where the highest quality is needed. specifications directional characteristic half cardioid / axial signal to noise ratio DIN 454051,5 µV phantom power / feed current                 48 V / ca. 1,8 mA frequency response20 - 20.000 Hz sensitivity of field idling                                   0,7 mV/µbar at 1 k? at 1 kHz7 mV/Pa signal to noise ratio rated at 1 Pa. CCIR                   74 dB equivalent SPLrated at DIN / IEC 20 dB signal to noise ratio rated DIN / IEC at 1 Pa.         87 dB-A equivalent SPLrated at DIN / IEC 7 dB-A max. spl at 1 k? 130 dB electrical impedance200 ? connector / size / weight           XLR / ¯ 70 x 21 mm / 440 g

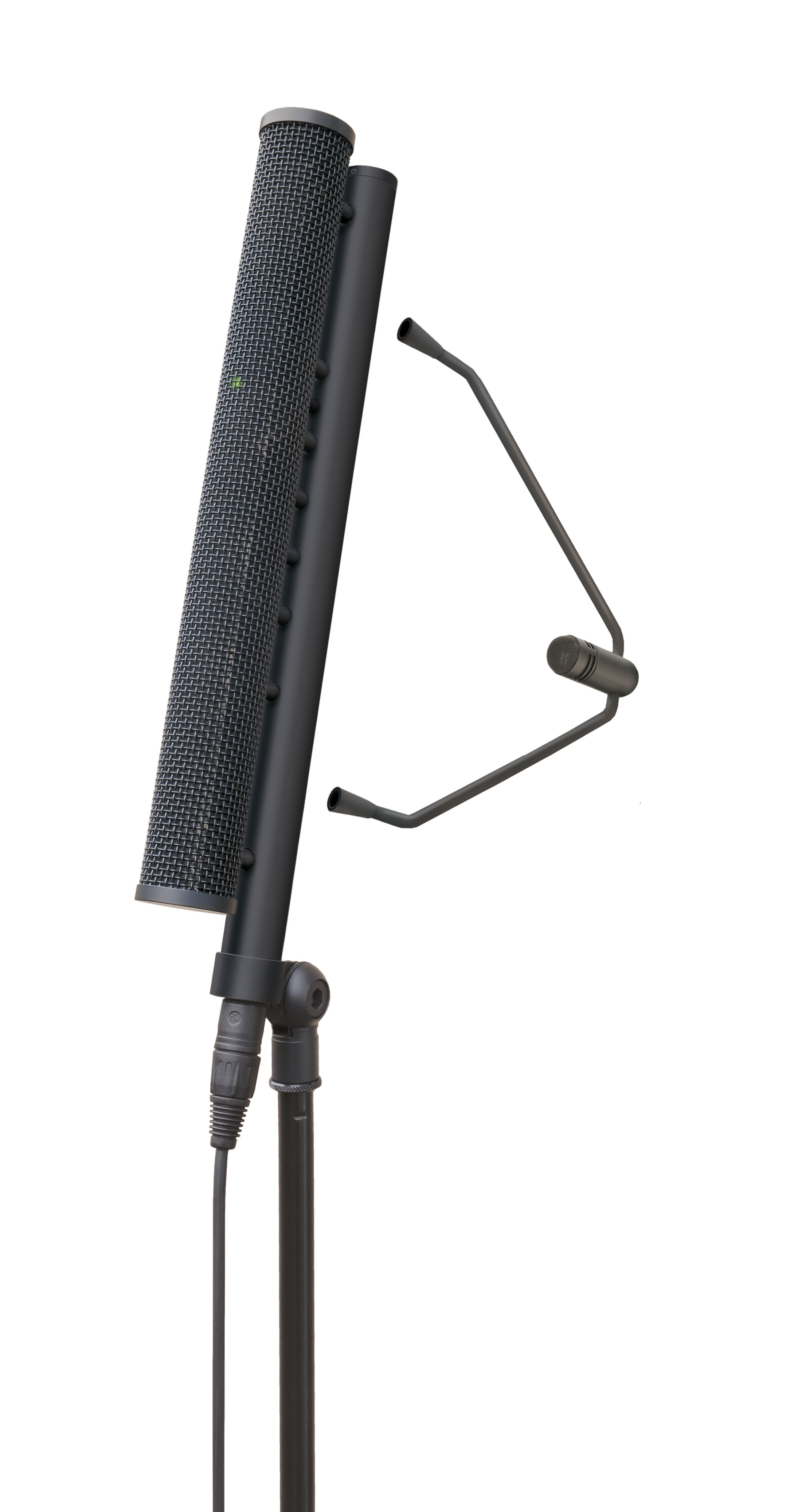

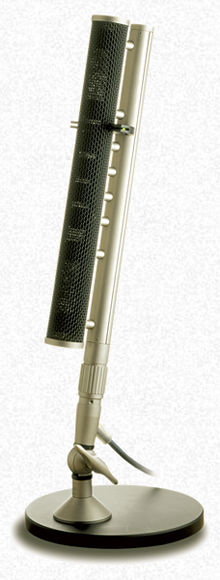

Cardioid Plane Microphone KEM 975 with Delta-Capsule The Cardioid Plane Microphone KEM 975 is a new design of the patented instantaneous line array microphone principle, which is already in use in the KEM 970. A completely new circuit design has been developed; besides the well-proven ceramic capsules of the M 300 series, Microtech Gefell have developed a low-noise preamplifier system for the KEM 975. Also, the construction of the housing has been completely revised without changing any of the critical dimensions of the Line Array itself; as the capsule positioning and relationship is an integral part of the design. The result of the revision is a shorted overall body length. Compared to the KEM 970, the KEM 975 Cardioid Plane Microphone has an increased dynamic range. There are 5 switch settings covering the entire Line level. Microtech Gefell’s well-proven optical principle to generate the capsule polarisation voltage is also used in the KEM 975 – this eliminates any “nasties” on the power line getting into the audio circuit.   Delta-Capsule IRT München (Institut für Rundfunktechnik), who originally designed and patented the line-array microphone and licensed Microtech Gefell to manufacture it, have significantly enhanced the directivity at low frequencies by the addition of a patented assembly that adds an extra microphone capsule mounted at the rear. This additional capsule assembly is available as an optional accessory. The advantage of this new construction, coupled with the improvements in lowering the noise floor, mean that the new KEM 975 is also suitable for music recordings as well as sound reinforcement, broadcast and video conferencing applications. By using an optimised filter system, the sound of the rear capsule is summed with the sound of the Microphone Line Array. The output of the complete arrangement is provided at the 3-pin XLR output connector of the N 975 power supply. Signal integration is automatically enabled (“plug and play principle”) when the Delta-Capsule system is connected to the KEM 975 microphone.   Power supply The N 975 power supply is connected to the microphone by a 5-pin XLR cable. The new power supply is available either as a half width 19” – 1U rack unit or, alternatively, as table-top variant.

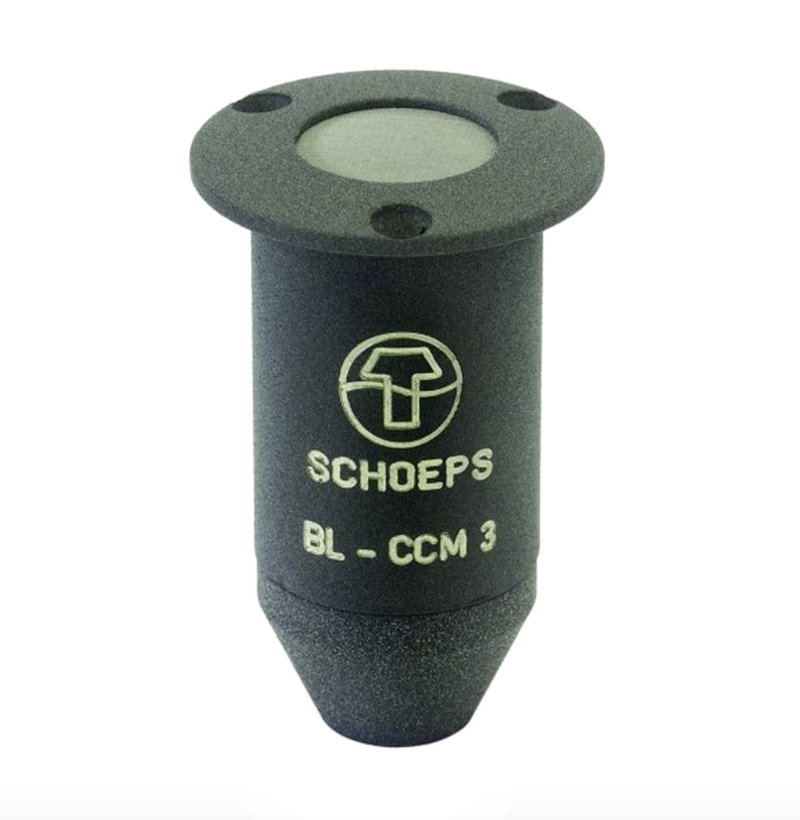

hemispherical pickup pattern for building in to the surface of a table or lectern unobtrusive avoids comb filter effect This special version of the CCM 2XS L compact microphone is equipped with a flange enabling it to be built into the surface of a table or speaker's rostrum. This makes the microphone nearly invisible, and at the same time improves the sound quality by eliminating comb filter effects. The BL CCM 3 is often used as a redundancy microphone in speaker tables.

Schoeps BLM 03 Cg Boundary Layer Capsulepressure transducer with hemispherical pattern active miniature version of the BLM 3gunobtrusive, universally applicablepreferred applications: on speaker's podiums, altars, ambient sound recording or for recording orchestrasdiameter: only 80 mmBoundary Layer Capsule BLM 03 CAn Active Cable hard-wired to the BLM 03 Cg allows it to be joined to any microphone amplifier of the Colette series (except the battery-operated model CMBI) to become a complete microphone. The BLM 03 Cg offers all the recognized advantages of the BLM 3g.It is recommended in those cases where the BLM 3g is too large (e.g. for TV or film sound) or too heavy, e.g. for mounting in the interior of a car under the roof, or beneath the lid of a piano.The CUT 1 and CUT 2 active low-cut filters can be used with the BLM 03 Cg.Frequency range 20 Hz - 20 kHzSensitivity 19 mV/PaEquivalent noise level (A-weighted) 12 dB-AEquivalent noise level (CCIR) 23 dBSignal-to-noise ratio (A-weighted) 82 dB-AMaximum sound pressure level at 0.5% THD 128 dB-SPLWeight 233 gDiameter 80 mmHeight 8.6 mmSurface finish matte gray For more information, please visit this products webpage

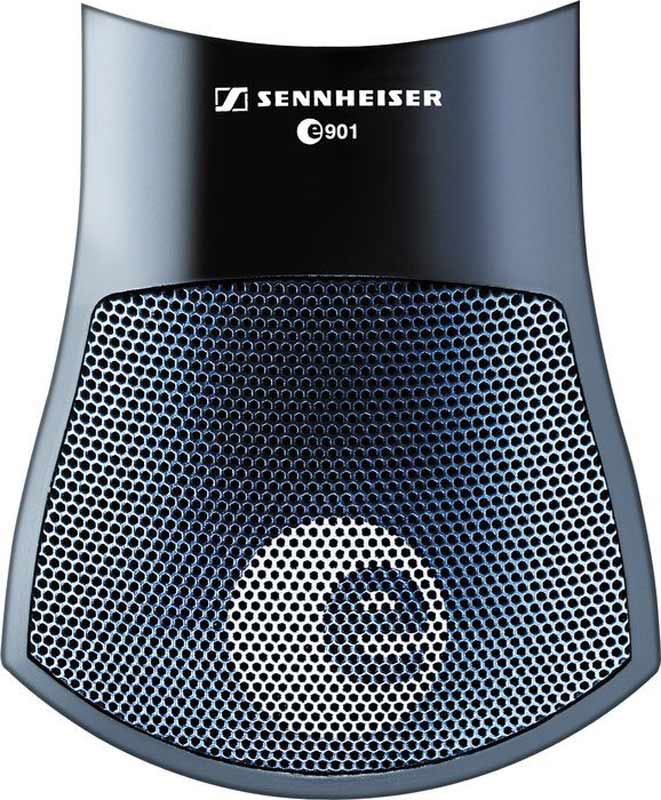

A balanced kick sound to set and forget. The e 901 is a rugged boundary microphone that handles high sound pressure levels extraordinarily well. Tailored to give the kick drum a highly precise, very dry sound character, the e 901 makes every attack lightning fast and realistic. The positioning of the e 901 in a bass drum couldn't be simpler: just put it in – done. The integrated preamp and gold-plated XLR connector have proven themselves to be exceptionally practical on stage. Features Condenser microphone Highly precise and dry kick drum sound Natural sound, fast transient response Designed especially for high sound pressure levels Integrated preamp and gold-plated XLR connector Slip-free, damping rubber pad underneath Extremely rugged metal housing
