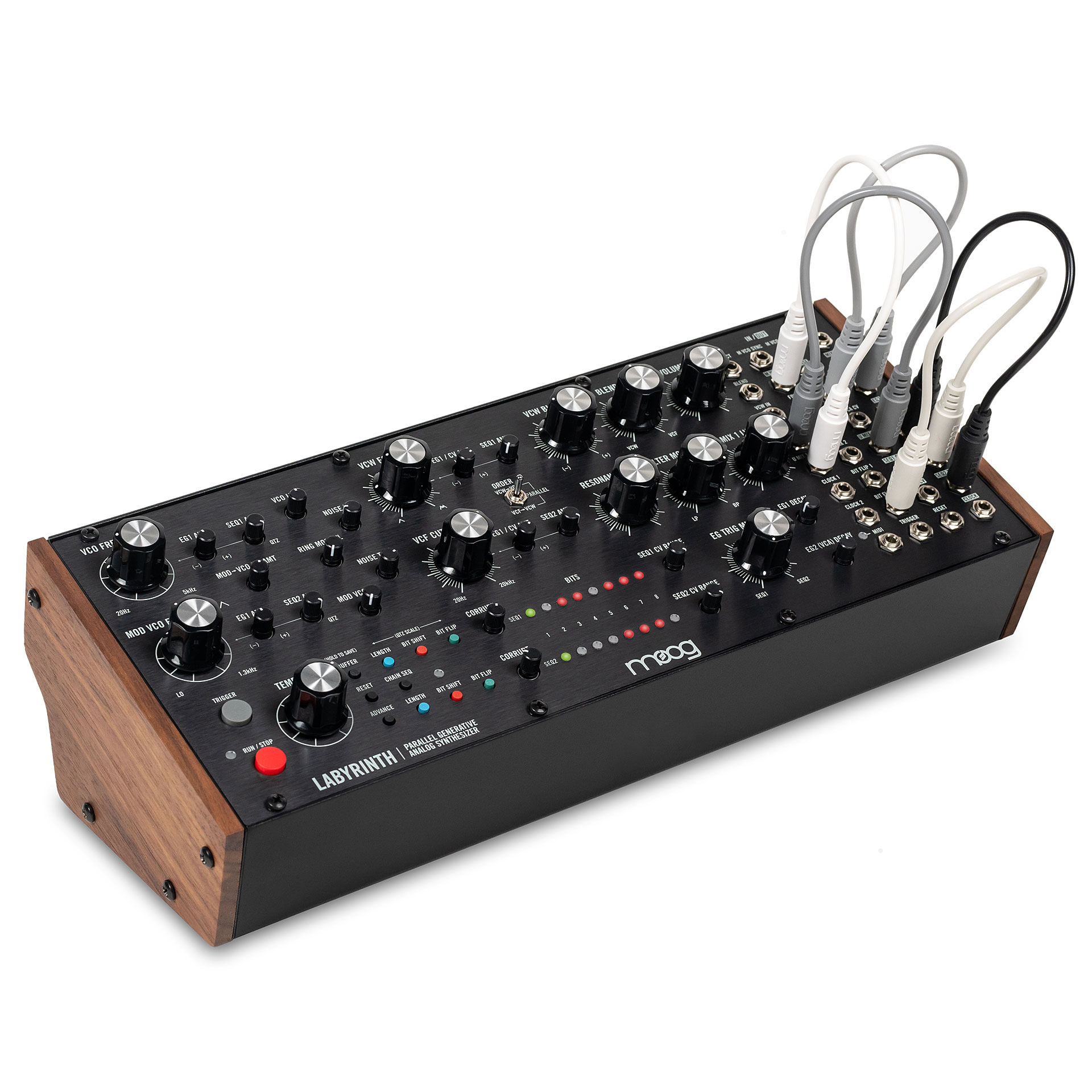

Moog Labyrinth

699,00 €*

Verfügbarkeit: Bitte kontaktieren Sie uns in dringenden Fällen.

Hersteller: Moog

Produktinformationen "Moog Labyrinth"

How deep does the rabbit hole go? Meet Labyrinth, an idea machine that aims to answer that very question. Two generative sequencers bring to life sounds that bloom over time, letting you control their evolution and scale, then play them off of each other for striking polymetric melodies. With parallel analog signal paths, this unique instrument shines when adding color to the steady backdrop of a drum pattern or bassline. Fully capable of standing on its own, or adding flavor to your existing rack, Labyrinth is the lightning in a bottle that drives your compositions into undiscovered creative caverns.

Dual generative sequencers create intertwining melodies that mutate over time. It’s a fountain of inspiration that uncovers patterns you can capture, return to, and evolve.
A fresh approach to the signature sound of classic Moog synthesizers with a smooth West Coast-style voltage-controlled wavefolder. Two oscillators drive duophonic melodic counterpoints, metallic FM tones, and analog synthetic drums.
State variable resonant voltage-controlled filters that morph between lowpass and bandpass responses let you experiment with smooth command over complex tonal shapes.
A parallel voice processing path with a voltage-controlled blending allows you to morph sounds over time.
A comprehensive patch bay for integration with a wide variety of other modules in your rack and studio.

ANALOG SYNTHESIS ENGINE

SOURCES: VCO, MOD VCO, RING MOD, NOISE Generator
SIGNAL PROCESSORS: 1x Voltage-Controlled Wavefolder, 1x
Voltage-Controlled State-Variable Filter, 2x Voltage-Controlled Amplifiers
MODULATORS: 2x Decay-only envelope generators

DUAL GENERATIVE SEQUENCER

2x 8-step Generative Digital Sequencers

PATCH BAY

JACKS: 32 x 3.5mm
INPUTS: 20 Input Jacks
OUTPUTS: 12 Output Jacks

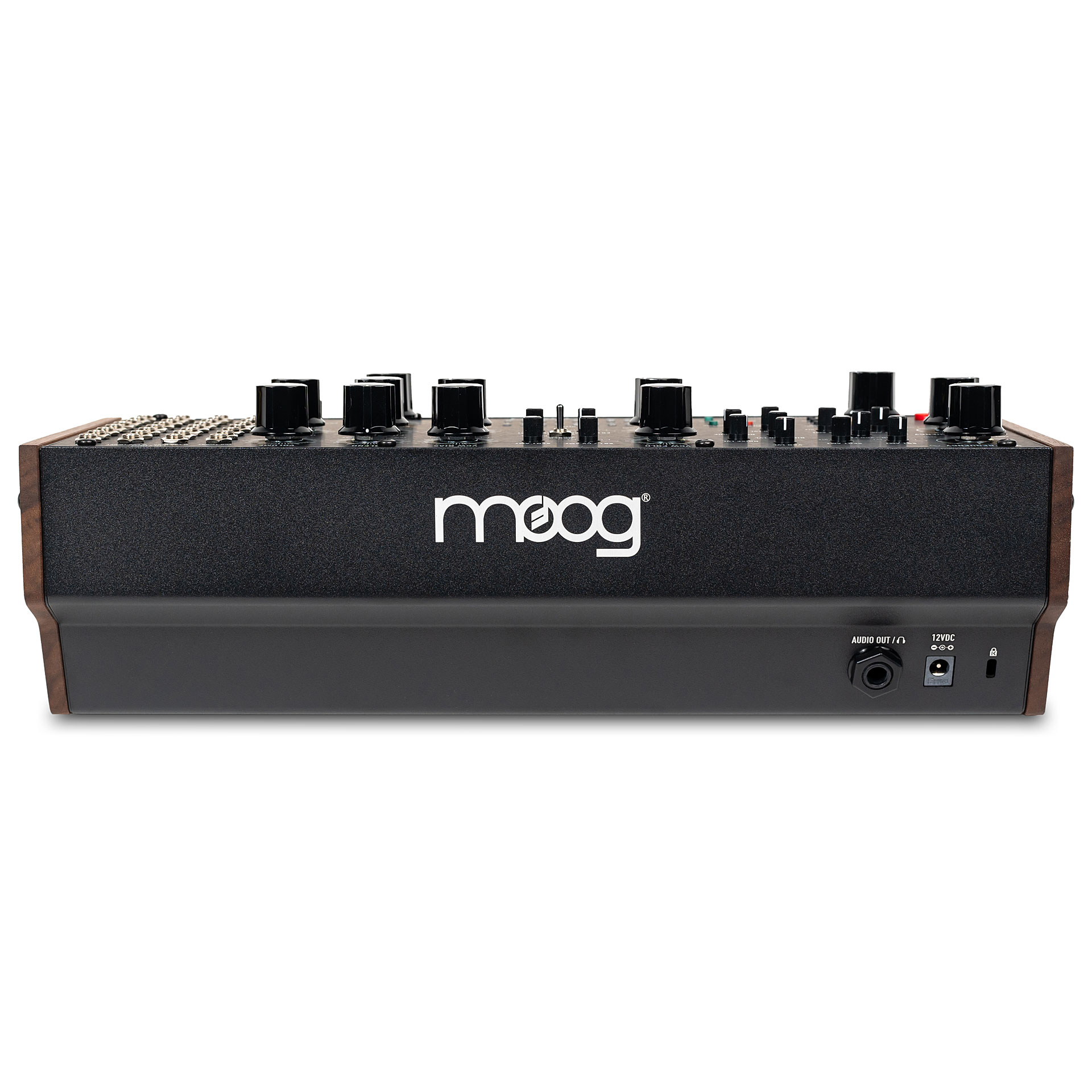

REAR PANEL

AUDIO: 1⁄4” TRS Headphone or 1⁄4” TS Instrument
POWER: Power Supply connection
SECURITY: Kensington Lock slot

POWER SUPPLY (INCLUDED)

STYLE: Wall adapter; barrel connection; center-pin positive
INPUT: 100 – 240VAC; 50 Hz – 60 Hz
OUTPUT: +12VDC; 1200mA

POWER CONSUMPTION

TYPICAL: 4.0 W

EURORACK SPECS

CURRENT DRAW: 290 mA (maximum) from +12VDC (10-pin header)
MOUNTING DIMS: 60HP (18mm Module Depth)

IN THE BOX

Labyrinth Semi-Modular Parallel Generative Analog Synthesizer

Power Supply

Patch Sheet Overlays

Patch Cables (5x 12")

Registration Card

Quickstart Guide

Cheat Codes

Safety & Warranty Manual
