RTW 1162 Multicore-Kabel für Analog und Digital Audio (AES3)z.B. für RTW TouchMonitor TM3, TM3-SOLO, TM3-6CH- D-Sub 25-polig (m) auf 2x XLR (f) analoge Eingänge, 3x XLR (f) digitale Eingänge & 3x XLR (m) digitale Ausgänge- Tascam-Belegung- Länge: 2 m

RTW 1163 Adapter cable, 4 m, up from 25p Sub-D connector eight M-XLR cable connector, for surround 11900, SurroundControl 31900, 31960, touch monitor series ..

RTW 1167 Adapter cable, 4 m, from 25p Sub-D plug to 4 x XLR-F, 4 x M-XLR cable connector, for "Digital I / O" D-sub connectors

RTW 1186 Adapter cable, 4 m, up from 25p Sub-D connector eight XLR-F cable couplings, "Analog In-Sub-D connectors.

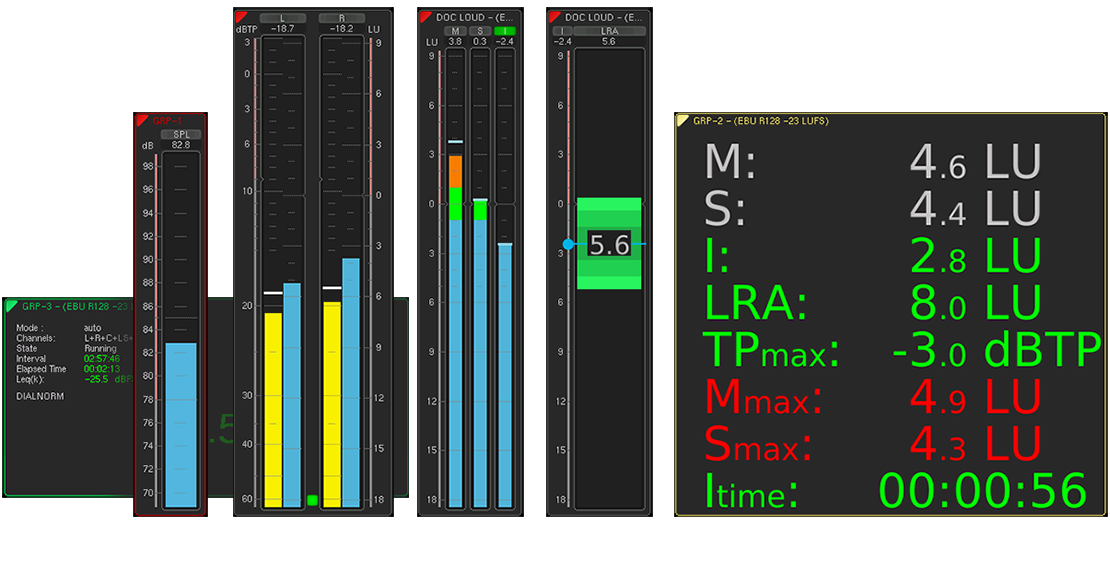

The Loudness and SPL Display license expands the basic 4-channel PPM with graphical and numerical instruments for Loudness measurements as described in current guidelines (EBU R128, ITU-R BS.1770-4/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM, LEQ(M), TASA, SAWA), and the LRA instrument for the graphical display of the Loudness Range. A customer-specific mode allows the user to modify parameters.In addition, the license provides the SPL display mode with various weighting filters and integration times as well as reference level adjust to calculate an SPL value from an electrical signal. Dialnorm values can be meausred with activated Multichannel Mode license.If you additionally activate the Timecode Reader license, you are able to execute timecode-based loudness measurements and loudness recalculation. Full implementations of the latest loudness standards and recommendationsBargraphs for summed Loudness with Momentary, Shortterm, Integrated values, and Loudness Range (LRA)Numerical display of all relevant values like M, S, I, LRA, TPmax, Mmax, Smax, ItimePractical UseControl your program according to the requirements resp. the delivery standards and be loudness compliantKeep your eyes on the summed, maximum, and true peak valuesMonitor indivdual program parts, complete programs, or the whole broadcastEvaluate the dynamic of your program in regard to the distribution pathIdentify, if the program needs or has seen processingGet information for normalizing dialog loudness level in film sound mixingRequirementsTouchMonitor TM7, TMR7 or TM9Optional on TM7 or TM9 software license SW20001: Multichannel Mode for the display of more than 4 channels and Dialnorm

Professional Loudness, True Peak and PPM metering at an affordable price: TM3 Smart4.3" Desktop TouchMonitor for editorial offices, edit suites, small control roomsFeatures4.3“ capacitve touch screen for vertical or horizontal use (Dimensions: 82.5 x 138 x 21/50 mm, W x H x D)Flexible display layout with scalable instrumentsSeparate interface box with audio I/O, USB, GPIO, low voltage connector (Dimensions: 146 x 27 x 85 mm, W x H x D)Audio: analog balanced (D-Sub) or unbalanced (RCA), S/PDIF (RCA), 3 x AES3 (D-Sub)2-channel Stereo (analog, digital), multichannel (digital), 5.1 (digital), input sources alternatively selectable, max. 6 channels at a timeUSB 2.0 connector (Mini-B), GPIO connector (RJ-12)Moving Coil instrumentsLoudness: EBU R128, ITU-R BS.1770-4/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM Act, customer specificSingle channel and summing loudness bargraphsLoudness Test Time ControlLoudness range (LRA) with MagicLRALoudness chartTimecode ReaderPPM & True PeakSPL & DialnormCorrelationNumerical displayComprehensive set of presetsPersonalization with Devicer DC1The Device Configurator software for Windows® and Mac OS X® is available in the download area For more Information please visit manufacturers webpage

Professional Loudness, True Peak and PPM metering for 3G-SDI audio: TM3-3G Smart 4.3" Desktop TouchMonitor for metering, deembedding and monitoring of 3G-SDI audio signalsFeatures4.3“ capacitve touch screen for vertical or horizontal use (Dimensions: 82.5 x 138 x 50 mm, W x H x D)Flexible display layout with scalable instrumentsSeparate 3G-SDI interface box with audio I/O, USB, GPIO, low voltage connector (Dimensions: 146 x 27 x 85 mm, W x H x D)Audio: 3G/HD/SD-SDI In/Through (BNC), max. 8 digital channels at a timeUSB 2.0 connector (Mini-B), GPIO connector (RJ-12)2-channel Stereo up to 8-channel level and loudness display, 3G-SDI signals alternatively selectable16-channel 3G-SDI deembedder with 8 x AES3 outMonitoring controller with onscreen level faderAnalog Stereo Line Out and Stereo headphone outMoving Coil instrumentsLoudness: EBU R128, ITU-R BS.1770-4/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM Act, customer specificFor more Information please visit manufacturers webpage

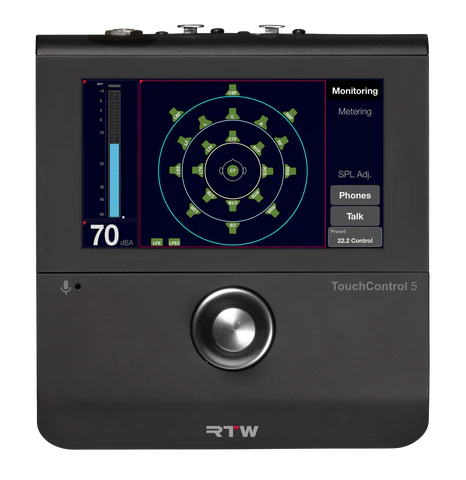

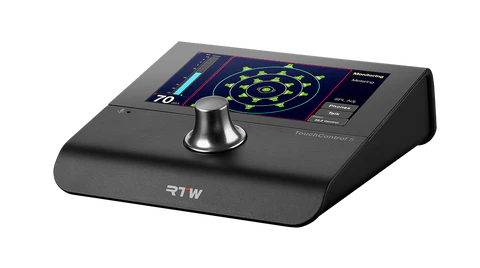

TouchControl 5 Monitor Control & Meter Dante® based immersive monitor controller with metering. User customizable table-top device with 5” touch display and 32 Dante®-channels for stereo- surround and -immersive speaker formats including 5.1 and 7.1.4. Comprehensive feature set with speaker calibration, SPL measurement and bass management as well as an RTW precision metering section with loudness. Toolbox with independent leveling and talkback. Main Bullets • Immersive table-top monitor controller and meter with 5” touch display and 32 Dante®-channels, with support for stereo- surround and -immersive speaker formats including 5.1 and 7.1.4 • Comprehensive monitor control feature set with speaker calibration, SPL measurement, bass management and up to 4 sources/destinations • RTW precision metering with customizable bargraphs and support for international loudness standards All Bullets • Immersive table-top monitor controller and meter with 5” touch display and 32 Dante®-channels, with support for stereo- surround and -immersive speaker formats including 5.1 and 7.1.4 • Comprehensive monitor control feature set with speaker calibration, SPL measurement, bass management and up to 4 sources/destinations • RTW precision metering with customizable bargraphs and support for international loudness standards • Toolbox with independently routable leveling and talkback • Customizable view pages • Built-in microphone preamp with +48 V phantom power • Built-in calibrated microphone for talkback and SPL measurement • Powerful headphone output: 1/4 inch Headphone output with the option of monitoring a user-defined downmix • Analog speaker output: 3.5mm speaker output with the option of monitoring a user defined downmix • Easy setup with web-based user interface • Power supply via Power Over Ethernet (IEEE 802.3af compliant) • Sample rate up to 96 kHz • Lockable operation mode: Fool-proof setup with access only to relevant controls. Prevents unintentional operation during showtime DETAILS Meet TouchControl 5, our Dante® based immersive monitor controller with metering. Built on our long and proud legacy of making broadcast-ready monitor controllers, it features a 5” intuitive touchscreen and a small footprint that preserves valuable space at your desktop. It even features RTW standard precision metering with loudness and includes SPL, measured using the built-in microphone. Stereo, Surround, Immersive With support for up to 32 Dante® channels in and out, TouchControl 5 can handle channel formats from stereo to 22.2. Among the many supported formats you will find 5.1 and 7.1 surround as well as 7.1.4 and 9.1.6 immersive. Monitor Control. Tried. Tested. Approved. Tried, tested, and approved by many broadcast engineers around the world, you find the very same monitor control engine that you might know from our legacy surround monitor controllers. The list is long, but let’s emphasize downmix, DSP-powered speaker calibration (using the internal microphone OR manual set), SPL readout, 4 input sources, speaker set selection (up to 4), solo, cut, swap, phase, mono, dim, mute and test tone generator. The source compare feature lets you toggle between sources for easy comparison and lets you set individual delays for each of the sources. On the output side, you can set up four speaker sets and easily switch between them or you can listen to your work with your favorite headphones using the headphones output. Controls and meters on your monitor page The SPL meter shows the measured sound pressure level in your room, and you can show SPL either as a bar graph or as a number – or both. The downmix instrument outputs your surround or immersive mix in stereo and mono. The downmixed signal can be monitored on speakers or phones or sent to any destination in your audio network. Each speaker can be muted or soloed, and you can invert polarity. The talkback feature lets you talk to speakers or any destination in your Dante network. LF Boost lets you boost your LFE channels with 10 dB and Surr. Att. attenuates the surround channels with 3dB. Speaker Calibration The speakers in your setup can be calibrated with regards to level, delay and EQ. The support for measurement microphones, the built-in test tone generator and the live-input SPL meter is the optimal tool combination for calibrating your speaker levels to ensure they are perfectly aligned. Each speaker has a DSP section for ultimate control. You can set individual delay, gain and polarity, and a 4-band EQ is available for each speaker in your setup. Calibrated speaker levels can easily be recalled by the press of a knob. Bass Management Up to two LFE channels with adjustable crossover frequencies can be adapted to your requirements using the bass management. Full-range speakers and smaller speakers can be finely tuned to each other and operated in the same system, while LP filters for bass-controlled speakers, all-pass filters for other speakers and an additional SUB output channel for formats without LFE is also available. RTW Metering Inside As you know, metering plays a significant role in any RTW device, and so it does in the TouchControl 5. The PPM metering engine is taken from our high-end TouchMonitor meters, and you get a wealth of ways to tailor your own metering experience, including scales, color settings and more. True Peak metering is of course part of the metering story, as well as VU and ‘British PPM’. Loudness, SPL and LRA For many years, RTW has taken part of forming the international loudness standards in ITU and EBU. Loudness is key to us, so in TouchControl 5 we have implemented the full loudness engine known from our high end broadcast meters. TouchControl 5 supports all international loudness standards such as EBU R128, ITU-R BS.1770-4/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM, LEQ(M), TASA and SAWA. The Toolbox The Fader instrument allows level control of any Dante® channel in your network, and you can freely configure each fader to control the number of channels you wish.
More faders can be combined, so you can control multiple groups of channels, and if you do so, levels are controlled relatively, using TouchControl 5's knob. TouchControl 5's touch screen can of course also be used to control each fader, and you can create up to 4 faders each controlling single channels, stereo-, surround- or immersive formats. Toolbox instruments also include a Talkback feature that lets you talk to any audio channel in you network. Talkback sources include the built-in mic, the external XLR input or any audio network channels.   Design Your Own View Pages TouchControl 5 lets you design your own view pages. For each instrument you can decide on size, ratio and placement, and several instruments can be rotated to fit your needs. Buttons can be placed anywhere on the screen, those that are placed in the side bar are avaiable across view pages. Say you want your input selector to be avilable also on the metering page - just place it in the side bar. Extensive Routing The Routing page lets you route your audio channels to and from TouchControl 5. With support for 32 Dante® channels plus the physical I/Os, there is a lot of possibilities. For instance you could use the same channels for monitor control and metering, or split them so metering is independent from monitor control.

Lernen Sie TouchControl 5 kennen, unseren Dante®- oder RAVENNA-basierten (jetzt verfügbar) Immersive-Monitor-Controller mit Metering. Der TouchControl 5 setzt die Tradition unserer herausragenden Monitor-Controller in Broadcast-Qualität fort und definiert das Machbare neu, indem er fortschrittliche Messfunktionen und leistungsstarke Monitorsteuerung nahtlos miteinander verbindet - so erhalten Sie das Beste aus beiden Welten in einem kompakten Format mit kleiner Stellfläche. Er ist voll ausgestattet mit den bewährten, lautheitskonformen Messwerkzeugen von RTW und einer branchenführenden Monitor-Control-Engine, die eine breite Palette von Lautsprecherformaten, Lautsprecherkalibrierung, Bass-Management, Downmixing und mehrere Eingangskonfigurationen unterstützt.

Der TouchMonitor 5 ist unser kompaktes Loudness-Meter, das für Audio-over-IP-Anwendungen entwickelt wurde. Dieses Modell baut auf unserer stolzen Tradition der Herstellung von sendefähigen Messgeräten auf und verfügt über einen intuitiven 5-Zoll-Touchscreen und ein platzsparendes Design, das perfekt für Ihren Schreibtisch oder kleine Stellflächen geeignet ist. Der TouchMonitor 5 liefert die RTW-spezifischen Präzisionsmesswerkzeuge, insbesondere Loudness Chart zur Erfassung der Loudness über Zeit und ein Audio-Vektorskop zur Erkennung von Phasenproblemen.

Der TouchMonitor 5 ist unser kompaktes Loudness-Meter, das für Audio-over-IP-Anwendungen entwickelt wurde. Dieses Modell baut auf unserer stolzen Tradition der Herstellung von sendefähigen Messgeräten auf und verfügt über einen intuitiven 5-Zoll-Touchscreen und ein platzsparendes Design, das perfekt für Ihren Schreibtisch oder kleine Stellflächen geeignet ist. Der TouchMonitor 5 liefert die RTW-spezifischen Präzisionsmesswerkzeuge, insbesondere Loudness Chart zur Erfassung der Loudness über Zeit und ein Audio-Vektorskop zur Erkennung von Phasenproblemen.

Setting New Standards and Space-saving: TouchMonitor TM7 7" Desktop TouchMonitor for Post Production, TV Broadcast and Video EditingFeaturesEasy and fast touch screen control with comfortable onscreen helpHighly flexible screen layout options with scalable instrumentPowerful DSP platform for parallel display of multiple instruments16 channel audio interfacing including analog, AES3 and AES3id (depending on hardware version)3G-SDI interface for audio signals of 3G/HD/SD SDI data streams (depending on hardware version)Models with Dante™ or Ravenna/AES67 and ST 2110 AoIP connectivity for up to 32 channelsFully scalable, modular software approach for flexible configuration and easy on-site upgradesEthernet/LAN, USB, VGA and GPIO ports7" touch screen 16 : 9 TFTTable-top unit, approx. 198 x 138.5 (163) x 46 (95) mm, W x H x D (with table-stand), incl. mains adapterFlush mount versions available (please contact our sales department)Standard Software (4-ch. PPM, TruePeak meter, correlator, global keyboard, gain reduction)Other software modules available as optionsFor more Information please visit manufacturers webpage

Setting New Standards: TouchMonitor TM99" Desktop TouchMonitor for Post Production, TV Broadcast and Video EditingFeaturesEasy and fast touch screen control with comfortable onscreen helpHighly flexible screen layout options with scalable instrumentPowerful DSP platform for parallel display of multiple instruments16 channel audio interfacing including analog, AES3 and AES3id (depending on hardware version)Optional 3G-SDI interface for audio signals of 3G/HD/SD SDI data streamsModels with Dante™ or Ravenna/AES67 and ST 2110 AoIP connectivity for up to 32 channelsFully scalable, modular software approach for flexible configuration and easy on-site upgradesEthernet/LAN, USB, VGA and GPIO ports9" touch screen 16 : 9 TFTTable-top unit, approx. 245 x 165.5 (185.5) x 46.5 (95) mm, W x H x D (with table-stand), incl. mains adapterFlush mount versions available (please contact our sales department)Standard Software (4-ch. PPM, TruePeak meter, correlator, global keyboard, gain reduction)Other software modules available as optionsFor more Information please visit manufacturers webpage

Loudness in Radio Broadcasting: TouchMonitor TMR77" Desktop TouchMonitor for Radio ProductionFeaturesEasy and fast touch screen control with comfortable onscreen helpHighly flexible screen layout options with scalable instrumentPowerful DSP platform for parallel display of multiple instruments2 AES3 audio inputs and 2 outputs via XLR (4 channels)Ethernet/LAN, USB, VGA and GPIO ports7" touch screen 16 : 9 TFTFully scalable, modular software approach for flexible configuration and easy on-site upgradesStandard Software (4-ch. PPM, TruePeak meter, correlator, global keyboard, gain reduction)Table-top or panel-mount (OEM) unitOther software modules available as optionsCompletely configured models for direct useFor more Information please visit manufacturers webpage
