Microtech Gefell

Microtech Gefell BM 180The BM 180 stage microphone is a compact member of the micon series of studio condenser microphones.A classic 48V phantom powered condenser microphone design, the BM 180 ensures a high degree of intelligibility and clarity for speech, vocals and music, also when used in less favourable acoustic conditions.The design makes it particularly suited to suspension above stages. Sound engineers in Theatre, Opera and Television will be particularly impressed by the visually unobtrusive appearance of the microphone.The BM 190 comprises a BMK 190 microphone capsule and the BMV 190 stage microphone preamplifier. Use of a special capsule with a cardioid characteristic achieves excellent attenuation of undesired acoustic interference in the vicinity. The suspension coupling provides a secure positioning and precise orientation of the microphone.The stage microphone has a balanced frequency response and ensures a neutral capture of sound. The electronic circuitry employed generates a negligible noise level. The low output impedance means that XLR cable extensions can be used where required. The microphone is supplied in a dark bronze finish.  A  LEMO mini-connector system provides an easy way to exchange the BMK 190 cardioid capsule with a BMK 180 omnidirectional capsul Capsule system sure   Polar patterns omni Frequency range / Hz 40  18000 Sensitivity / mV/Pa 7 Equivalent loudness level / dB(A) 20 Max. SPL  (0,5%) / dB 147 Power Supply P 48 / XLR

Microtech Gefell BM 190The BM 190 stage microphone is a compact member of the micon series of studio condenser microphones.A classic 48V phantom powered condenser microphone design, the BM 190 ensures a high degree of intelligibility and clarity for speech, vocals and music, also when used in less favourable acoustic conditions.The design makes it particularly suited to suspension above stages. Sound engineers in Theatre, Opera and Television will be particularly impressed by the visually unobtrusive appearance of the microphone.The BM 190 comprises a BMK 190 microphone capsule and the BMV 190 stage microphone preamplifier. Use of a special capsule with a cardioid characteristic achieves excellent attenuation of undesired acoustic interference in the vicinity. The suspension coupling provides a secure positioning and precise orientation of the microphone.The stage microphone has a balanced frequency response and ensures a neutral capture of sound. The electronic circuitry employed generates a negligible noise level. The low output impedance means that XLR cable extensions can be used where required. The microphone is supplied in a dark bronze finish.  A  LEMO mini-connector system provides an easy way to exchange the BMK 190 cardioid capsule with a BMK 180 omnidirectional capsul Capsule system  Pressure gradien Polar patterns  cardioid   Frequency range / Hz  40 … 16000 Sensitivity / mV/Pa  14 Equivalent loudness level / dB(A)  15 Max. SPL  (0,5%) / dB  146 Power Supply  P 48 / XLR

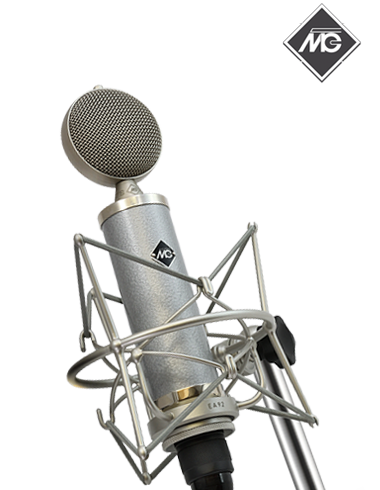

Das CMV 563 - M 7 S ist die originale Wiederauflage des legendären Gefell CMV 563. Es hat den typischen warmen, vollen Klang eines Röhrenmikrofons, der von zahlreichen Sängern und Solisten geschätzt wird. Der Röhren-Vorverstärker ist mit der EF 86 Pentode aufgebaut, die als Triode betrieben und hinsichtlich ihres Rauschverhaltens speziell ausgesucht wird. Das neue Netzgerät N 61 erzeugt die Versorgungsspannung für die Röhre. Es kann an Netzspannungen von 115 V oder 230 V mit 50 Hz oder 60 Hz betrieben werden. Das N 61 hat einen Netzschalter, einen 7-poligen Tuchel-Steckverbinder zum Anschluss des Mikrofons und einen 3-poligen XLR-Steckverbinder für das Mikrofon-Ausgangssignal. Das CMV 563 - M 7 S wird in einem Aluminiumkoffer ausgeliefert, der auch das Netzgerät N 61, das Anschlusskabel C 563.1, die elastische Mikrofonaufhängung EA 92 und einen G/B-Adapter zum Betrieb der historischen Mikrofonkapseln M 7, M 8 und M 9 mit Bajonettanschluss am CMV 563 beinhaltet.   Technische Daten Richtcharakteristik Niere Akustische Arbeitsweise Druckgradientenempfänger Übertragungsbereich 20 Hz bis 20.000 Hz Empfindlichkeit bei 1 kHz 17 mV/Pa Nennimpedanz 200 Ohm Ersatzgeräuschpegel nach CCIR 468-4 24 dB nach DIN EN 60268-4 16 dB-A Geräuschpegelabstand CCIR-bewertet (bez. auf 1 Pa bei 1 kHz) 70 dB A-bewertet (bez. auf 1 Pa bei 1 kHz) 78 dB-A Grenzschalldruckpegel bei 0,5% Klirrfaktor 115 dB Dynamikumfang 99 dB Betriebsspannung 120 V - Anodenstrom 1 mA - Heizspannung 5,8 V - Heizstrom 200 mA - Röhre (rausch- und klingarm) EF 86 Anschlussarmatur Mikrofon 7-pol. Tuchel Netzgerät XLR3M Gewicht 540 g Länge 216 mm Durchmesser 42 mm

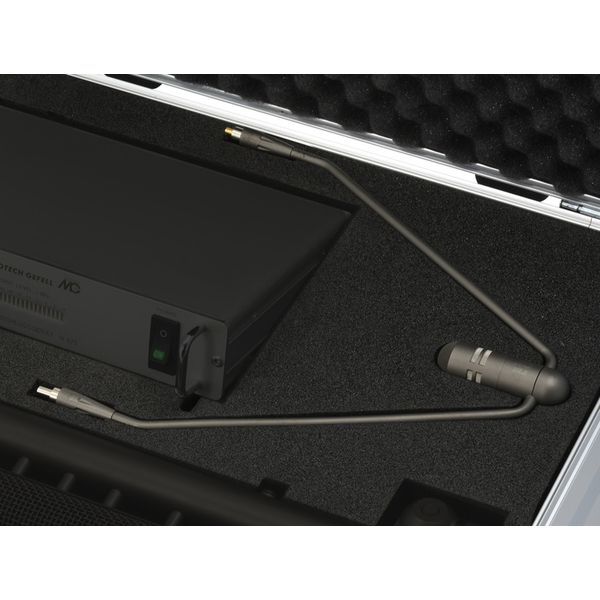

Das Microtech Gefell DM21 Delta Capsule KEM 975 DB ist ein hochwertiges digitales Kondensatormikrofonsystem für professionelle Broadcast-, Studio- und Messanwendungen. Durch die Kombination der DM21-Mikrofonkapsel mit dem digitalen Ausgangsmodul KEM 975 bietet dieses System eine äußerst präzise Klangaufnahme, extrem niedriges Eigenrauschen und direkte AES42-Digitalkonnektivität. Entwickelt für anspruchsvolle Recording-Umgebungen liefert das System transparente Klangwiedergabe, stabile Clock-Synchronisation und hervorragendes Impulsverhalten – ideal für Rundfunkstudios, Orchesteraufnahmen, Sprachproduktionen und immersive Audioanwendungen.

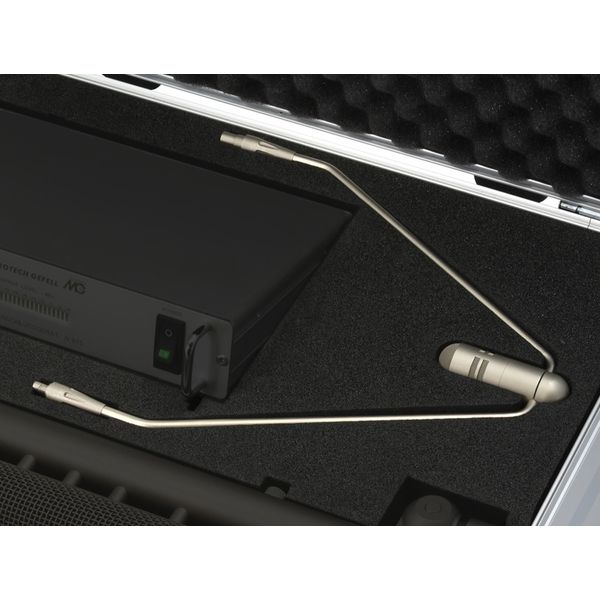

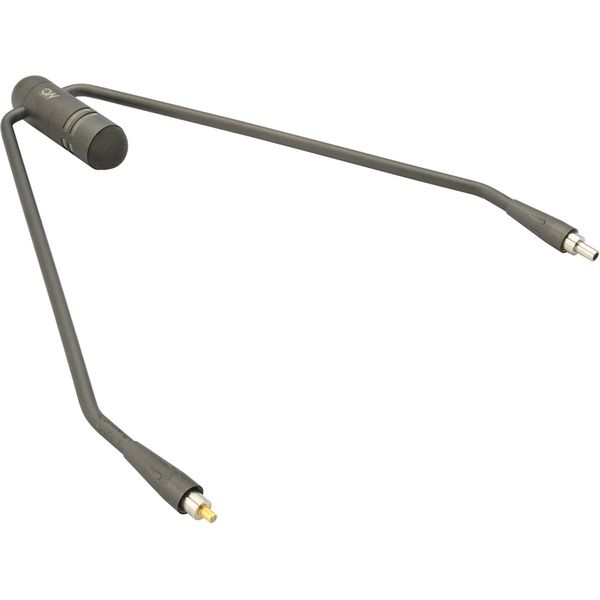

Das Microtech Gefell DM21 Delta Capsule KEM 975 SN ist ein hochwertiges digitales Kondensatormikrofonsystem für professionelle Studio-, Broadcast- und immersive Audioanwendungen. Durch die Kombination der präzisen DM21 Delta Capsule mit dem digitalen AES42-Ausgangsmodul KEM 975 SN bietet das System eine transparente Klangwiedergabe, exakte Transientenabbildung und extrem niedriges Eigenrauschen. Entwickelt für moderne digitale Produktionsumgebungen verfügt das Mikrofonsystem über integrierte A/D-Wandlung, stabile Synchronisation und hohen Dynamikumfang – ideal für Orchesteraufnahmen, Sprachproduktionen, Rundfunk und anspruchsvolle Studioanwendungen.

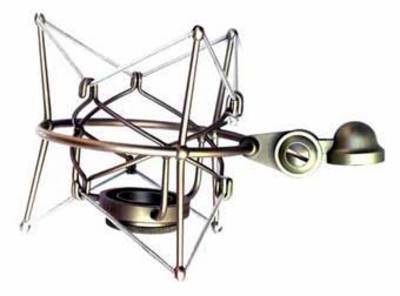

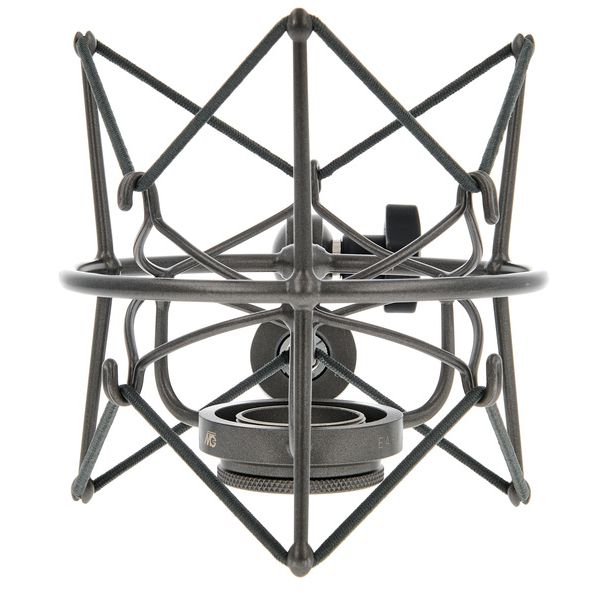

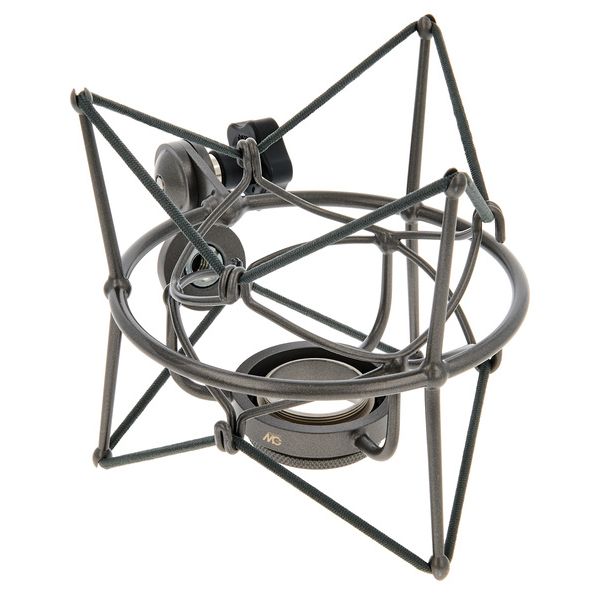

Die Microtech Gefell EA 92 Dark Bronze ist eine hochwertige elastische Mikrofonspinne für professionelle Studioanwendungen. Sie wurde entwickelt, um Trittschall, Vibrationen und mechanische Störungen effektiv zu reduzieren und eine optimale Entkopplung hochwertiger Mikrofone zu gewährleisten. Mit ihrer robusten Stahlkonstruktion und der eleganten Dark-Bronze-Oberfläche eignet sich die EA 92 ideal für Mikrofone wie das UM 900, UMT 800, UM92.1S und M92.1S von Microtech Gefell. Perfekt für Gesangsaufnahmen, Broadcast, Sprachproduktionen und hochwertige akustische Recording-Anwendungen.

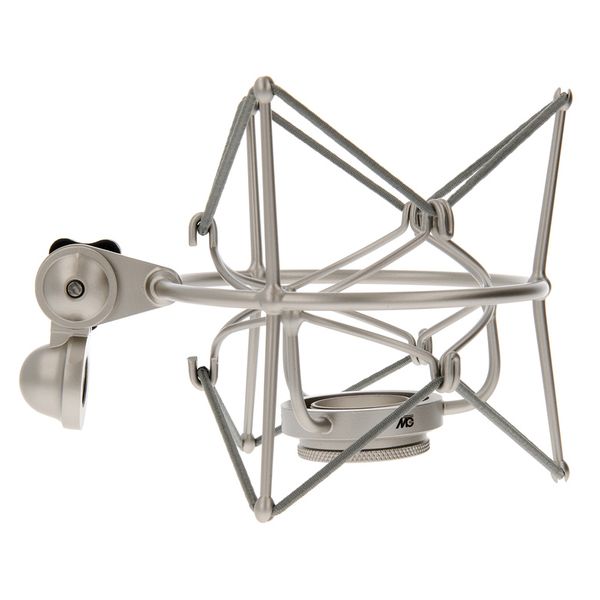

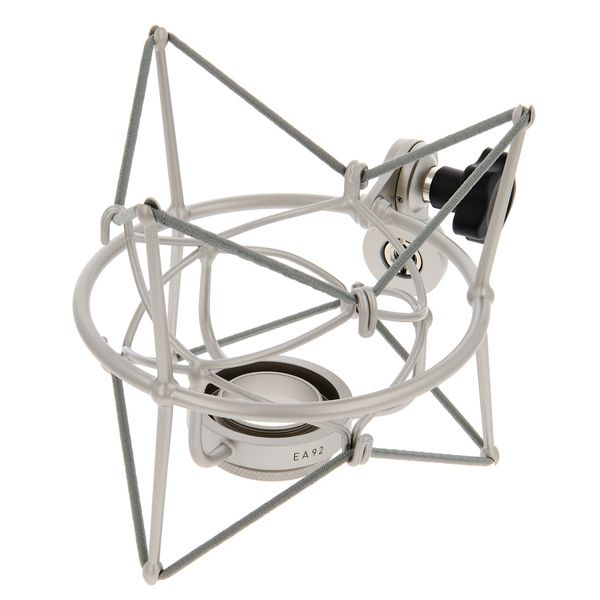

Spinne für UM 900, UMT 800, UM92.1S, M92.1S.Für weitere Informationen, besuchen Sie bitte die Homepage zu diesem Produkt.

Elastische Mikrofonspinne für kompatible Microtech Gefell Studiomikrofone. Entwickelt zur Reduzierung von Trittschall, mechanischen Vibrationen und Stativgeräuschen bei professionellen Recording-Anwendungen. Robuste Stahlkonstruktion mit Dark-Bronze-Oberfläche und integriertem Elastiksystem für stabile Mikrofonpositionierung in Studio-, Broadcast- und Sprachaufnahmen.

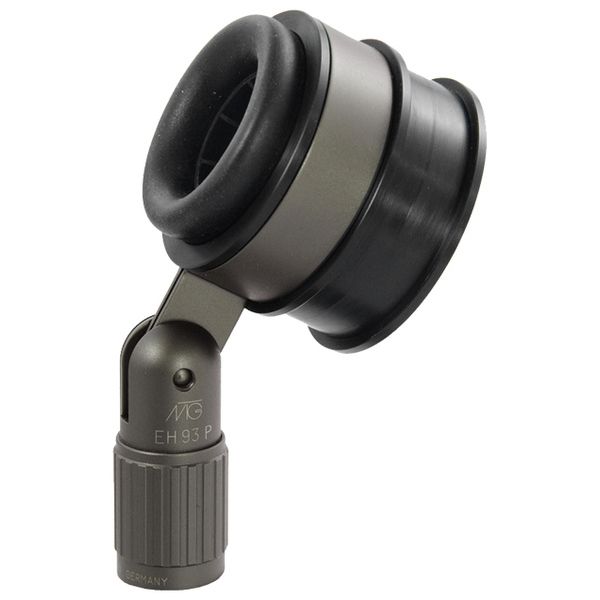

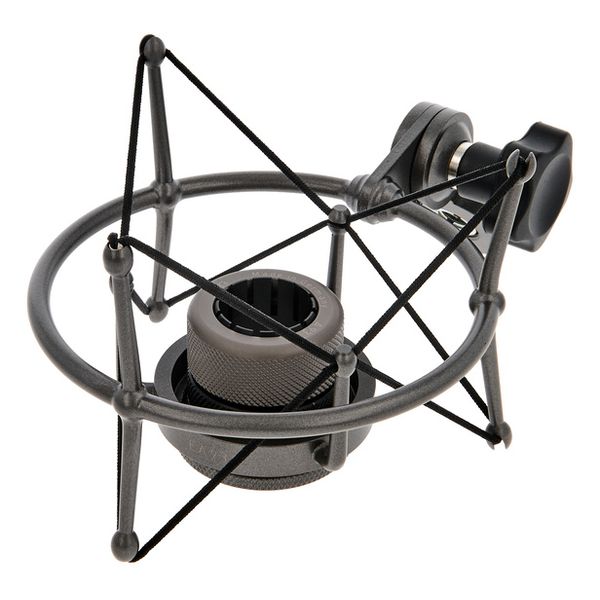

Mikrofonhalterung für kompatible Microtech Gefell Studiomikrofone. Entwickelt für sichere Mikrofonmontage in Studio-, Broadcast- und Sprachaufnahmen. Metallkonstruktion mit Dark-Bronze-Oberfläche und integriertem Gelenkmechanismus zur flexiblen Mikrofonpositionierung an Standard-Mikrofonstativen.

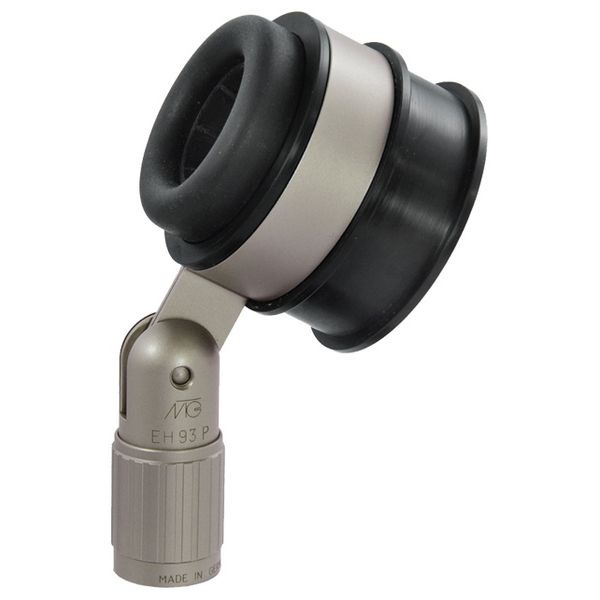

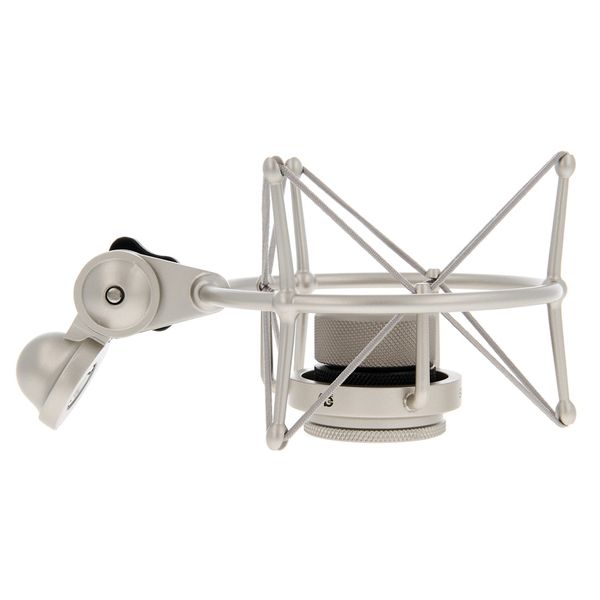

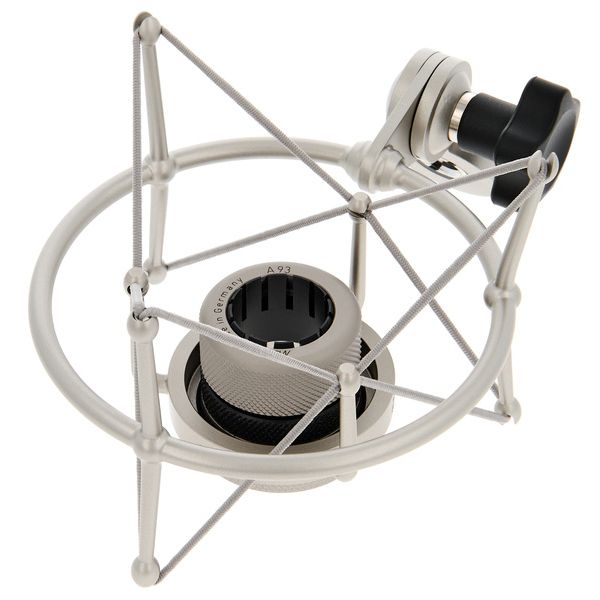

Mikrofonhalterung für kompatible Microtech Gefell Studiomikrofone. Entwickelt für sichere Mikrofonmontage in Studio-, Broadcast- und Sprachaufnahmen. Metallkonstruktion mit Satin-Nickel-Oberfläche und integriertem Gelenkmechanismus zur flexiblen Mikrofonpositionierung an Standard-Mikrofonstativen.

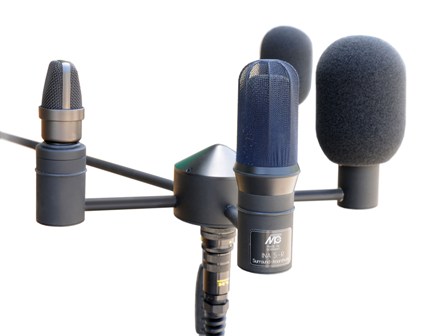

Microtech Gefell INA 5 RThe INA 5 R is an extended version of the INA 5th It has built-in elastic holder and integrated cable management. The surround arrangement can be expanded with a special rain-and wind protection and relays the microphone in and outdoor use. Technical Data : Studio Condenser Microphone M 930 M 940 M 950 Directivity Kidney Supercardioid Wide cardioid Acoustic Principle Pressure gradient Frequency response 40th .. 18000 Hz Field Sensitivity at 1 kHz 21 mV / Pa 23 mV / Pa 20 mV / Pa Nominal impedance 100 Ω 100 Ω 100 Ω Equivalent noise level CCIR 468-4 13 dB 12 dB 13 dB DIN EN 60651 7 dB - A 6 dB - A 7 dB - A Noise ratio to 1 Pa at 1 kHz CCIR - Rated 81 dB 82 dB 82 dB A - Rated 87 dB 88 dB 87 dB Maximum SPL for THD 0.5% 142 dB 141 dB 142 dB Maximum output voltage at RL = 1 k Ω 17 dBu 17 dBu 17 dBu at RL = 10 k Ω 18 dBu 18 dBu 18 dBu Dynamic range of the microphone amplifier 135 dB 135 dB 135 dB Power consumption (P 48, DIN 45596, IEC 268 - 15) 3.6 mA 3.6 mA 3.6 mA Fittings XLR connectors, 3 pole Gold plated Weight without MH 93.1 210 g Dimensions (L x Ø) 118 mm x 45 mm Surface nickel matte, dark bronze

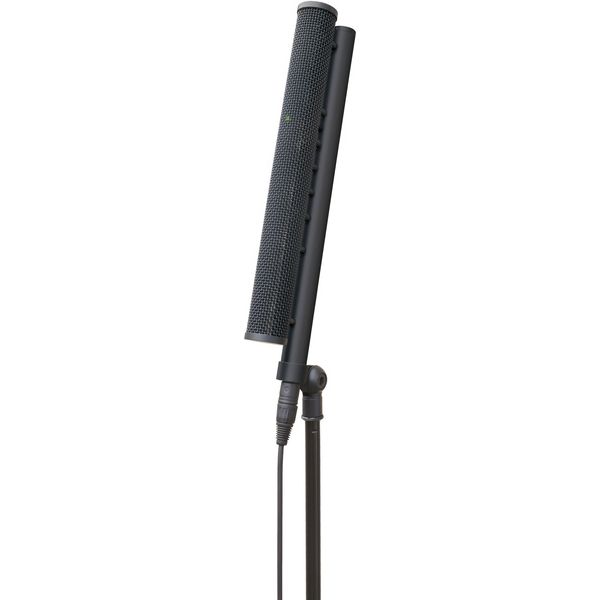

Cardioid Plane Microphone KEM 975 with Delta-Capsule The Cardioid Plane Microphone KEM 975 is a new design of the patented instantaneous line array microphone principle, which is already in use in the KEM 970. A completely new circuit design has been developed; besides the well-proven ceramic capsules of the M 300 series, Microtech Gefell have developed a low-noise preamplifier system for the KEM 975. Also, the construction of the housing has been completely revised without changing any of the critical dimensions of the Line Array itself; as the capsule positioning and relationship is an integral part of the design. The result of the revision is a shorted overall body length. Compared to the KEM 970, the KEM 975 Cardioid Plane Microphone has an increased dynamic range. There are 5 switch settings covering the entire Line level. Microtech Gefell’s well-proven optical principle to generate the capsule polarisation voltage is also used in the KEM 975 – this eliminates any “nasties” on the power line getting into the audio circuit.   Delta-Capsule IRT München (Institut für Rundfunktechnik), who originally designed and patented the line-array microphone and licensed Microtech Gefell to manufacture it, have significantly enhanced the directivity at low frequencies by the addition of a patented assembly that adds an extra microphone capsule mounted at the rear. This additional capsule assembly is available as an optional accessory. The advantage of this new construction, coupled with the improvements in lowering the noise floor, mean that the new KEM 975 is also suitable for music recordings as well as sound reinforcement, broadcast and video conferencing applications. By using an optimised filter system, the sound of the rear capsule is summed with the sound of the Microphone Line Array. The output of the complete arrangement is provided at the 3-pin XLR output connector of the N 975 power supply. Signal integration is automatically enabled (“plug and play principle”) when the Delta-Capsule system is connected to the KEM 975 microphone.   Power supply The N 975 power supply is connected to the microphone by a 5-pin XLR cable. The new power supply is available either as a half width 19” – 1U rack unit or, alternatively, as table-top variant.

Digitales Ausgangsmodul für kompatible Microtech Gefell Kondensatormikrofonkapseln. Entwickelt für den AES42-Digitalmikrofonbetrieb in Studio-, Broadcast- und Messanwendungen. Bietet integrierte A/D-Wandlung, digitale Signalübertragung und Synchronisationsfunktionen für professionelle Recording-Workflows. Metallgehäuse mit Dark-Bronze-Oberfläche zur Verwendung mit kompatiblen modularen Mikrofonsystemen.

Kleinmembran-Kondensatormikrofon für Studioaufnahmen, Broadcast und akustische Instrumente. Ausgestattet mit Nierencharakteristik, transformatorloser Schaltung und kompaktem Mikrofongehäuse für präzise Transientenabbildung und geringes Eigenrauschen. Geeignet für Stereoaufnahmen, Overheads, Streicher, Klavier, Chor und Sprachaufnahmen.

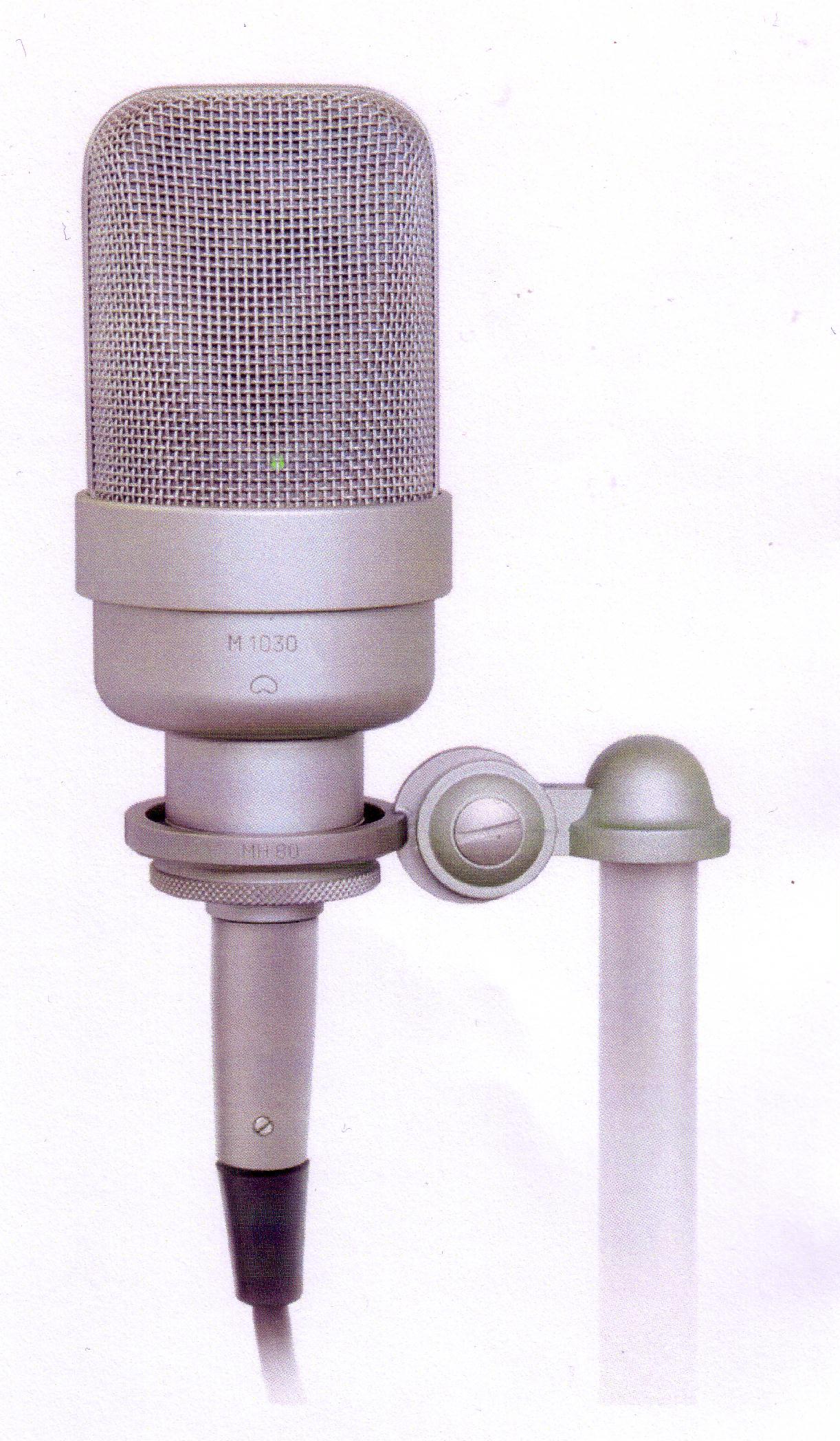

Microtech Gefell M 1030 Extreme dynamic range Noise floor 7 dB-A Universal applications New large diaphragm capsule Advanced circuit design Transformerless output Internal elastic suspension Optical ready indicator   Es gibt einen wohlwollenden Testbericht in der Sound&Recording, den Sie hier lesen können

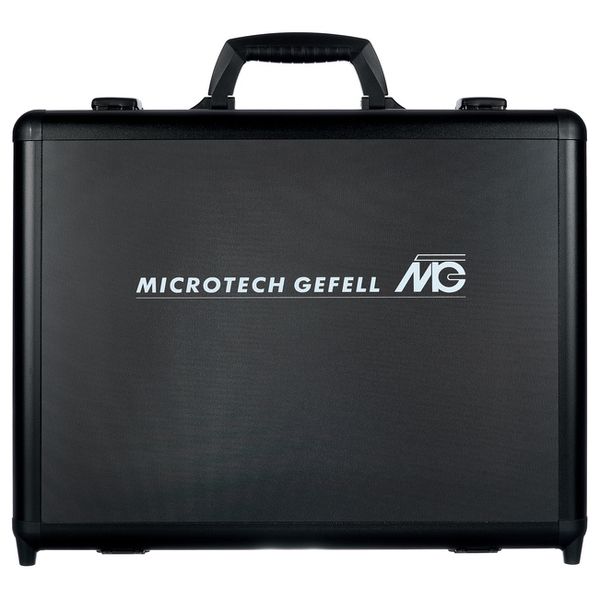

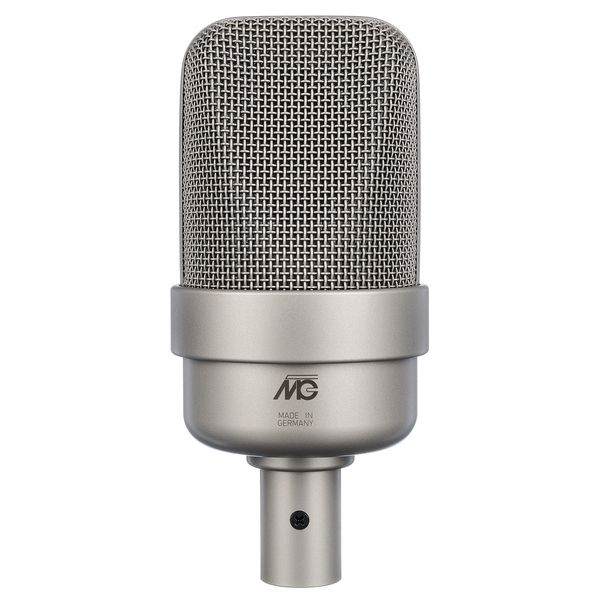

Großmembran-Kondensatormikrofon-Set mit Nierencharakteristik und inkludierter EA 92 Mikrofonspinne. Entwickelt für Gesangsaufnahmen, Sprachaufnahmen, Broadcast und akustische Instrumente im Studioeinsatz. Ausgestattet mit transformatorloser Schaltung, geringem Eigenrauschen und hoher Schalldruckfestigkeit in einem Großmembran-Design.

Microtech Gefell M 200Modular cardioid condenser capsule M20 & pre-amp module MV200 microphone set for studio and live reinforcement. The MV200 microphone pre-amplifier module is used with the M20, M21, & M27 interchangeable capsules. Features -10dB pad and low-frequency roll-off. Comes with deluxe wood case. Satin nickel finish.Features: Modular mic system Choice of 3 patterns Low noise output stage 16mm gold diaphragm Specifications: Pattern: Cardiod Frequency Response: 40 Hz - 20 kHz Sensitivity: 13 mV/Pa Self noise: 16 dB A-weighted Signal to noise: 80 dB A-weighted Maximum SPL: 145 dB A-weighted Dynamic Range: 121 dB Power requirement: 48V phantom

Microtech Gefell M 210The Gefell M200 cardioid is part of a series of three modular condenser mics that include the M210 hypercardioid and the M270 omnidirectional. Each mic comes complete with capsule head and microphone amplifier and capsules are interchangeable for maximum flexibility. The combined use of ceramics and a hand stretched gold evaporated Mylar (PE) capsule provides a rich, natural tone with universal appeal for studio, broadcast, on-stage and location sound.

Microtech Gefell M 221The condenser microphone M 221 unifies universal small diaphragm capsule technology with a metal diaphragm and a modular preamplifier. The use of a certificated measurement capsule combined with a preamplifier with 48 V phantom powering reaches a constant magnitude and phase response and transmission properties which are long-term stable. Application  Because of the small capsule dimensions the M 221 is ideally suited for applications where a low interference with the sound field is demanded. It is usable as a main microphone for recordings which should include a certain amount of the room response. As well the M 221 is suited as a spot microphone for recording instruments very close where the low frequencies should be transmitted in detail and original. Moreover it can be used for multichannel main microphone arrangements like AB stereophony or decca tree. For these applications the microphone is ideal because of its precise and long-time stable transmission properties. The M 221 has an excellent transient response because of the pressure transducer capsule and is really suitable to record instruments with extreme transients. With the both different sized spherical corpuses a high frequency accentuation can be produced in an acoustical way to increase the presence and to compensate the high frequency roll-off in the diffuse sound field.Acoustical Specifications The pick-up pattern is equivalent to the longitudinal direction of the microphone. As sound transducer a condenser capsule with a diameter of 12,5 mm and a very thin metal diaphragm is used. The pressure transducer capsule exhibits an omni-directional polar pattern without proximity effect. Because of the free field equalization the M 221 has a constant frequency response from 3,5 Hz up to 20 kHz (± 2 dB). The static pressure equalization between the capsule interior and the atmosphere goes through a vent to the preamplifier. Therefore the humidity adaptor TA 202 is usable to protect the microphone in application with high air humidity. The use of the M 221 with the spherical corpus KA 3 effects a frequency response accentuation which begins at approximately 1 kHz and goes constant at 3 dB from approximately 4 kHz up to 12 kHz. With the spherical corpus KA 4 the accentuation of the high frequencies starts also at approximately 1 kHz and goes constant at 3 dB between 3 kHz and 12 kHz. Electrical Specifications The transformerless circuit design of the electronic impedance converter with symmetrical output facilitates an output capability for sound pressures from15 dB(A) up to 136 dB with a maximum of 0,5 % THD (total harmonic distortion). The microphone is connected by a standard 3-pin XLR-male plug with gold-plated pins which realizes the powering by an external 48 V phantom supply according to IEC 61938 with a current consumption of 6 mA. Mechanical Specifications The M 221 consists of a microphone capsule and a microphone preamplifier as independent mechanic parts which are connected to a complete microphone through a screw thread. Microphone capsule and microphone preamplifier have an identical overall diameter of 12,7 mm which enlarges to 21 mm over the length of the microphone preamplifier to the connection side of the microphone. The shape of this enlargement is designed for a minimum interference with the sound field. Microphone capsule and microphone preamplifier have together a length of 170,4 mm. On the connection side of the M 221 there are standard microphone holders mountable. To reach a higher attenuation against solid-born sound and impulses there are elastic holders and suspensions usable. The weight of the M 221 is 123 g what allows to use the microphone with stand mountings as well as to hang up the microphone from the ceiling without any problems.Technical Data  Condenser Microphone M 211 Polar pattern Omni Acoustic operating principle Pressure transducer Frequency range 20 … 20000 Hz ± 2 dB Sensitivity at 1 kHz 50 mV / Pa Output impedance 100 Ω Noise level CCIR 468-4 28 dB DIN EN 60651 15 dB ( A ) Signal-to-noise ratio A-weighted 79 dB Max. output level    Ri =      1 kΩ    18 dBu Ri = 100 kΩ    19 dBu Max. SPL for K < 0,5 % 136 dB Dynamic range 121 dB power supply    48 V ± 4 V Current consumption 5,5 mA Output connector XLR3M Weight 123 g Dimensions ( L x Ø ) 170,4 x 12,7 / 21 mm

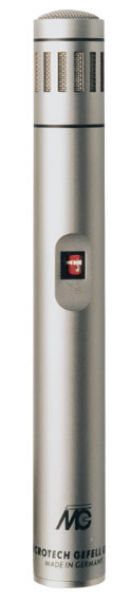

Microtech Gefell M 270The M270 provides the flattest response of the three SMS2000-series mics; it is flat to 3kHz, then rises to +6dB at 10kHz. This deliberate presence peak provides additional clarity and “brilliance” for ambient (“far-field”) recordings.The M270 mic ships in a padded wooden case in either of two finishes

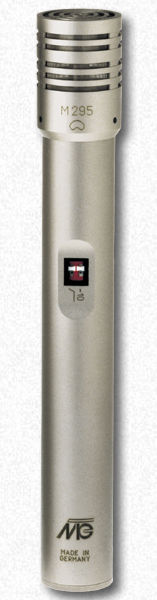

Microtech Gefell M 295The M 295 extens the studio microphone System SMS 2000. The proved microphone capsules M 70 and M 94 form a unit with the modified microphone amplifier MV 200.These microphones are designed for a universal applications in professional recording and sound reinforcement and meet the requirements of modern technics.The newly developed, transformerless circuit design substitutes the previous transformer for a symmetrical output stage. Its intrinsic noise and remarkably output capability emphasize the advantages of the microphone capsules M 70 and M 94. Microphone capsules with an extremly thin metal diaphragm enable brilliant sound transmission.The direction of maximum sensitivity is axial. The studio microphones are equipped with a wide range of accessories for many microphone mounting methods.lt is possible to activate a 10 dB-attenuator pad for handling very high sound pressure levels. A sensitivity reduction for low frequencies can be utilized to suppress the proximity effect. The two switches are into the middle of the preamplifiers.The microphone is equipped with a standard 3-pin XLR connector fitting to a microphone cable, e.g. C70. The operation voltage is  provided by 48 V phantom powering, according to the international standards DIN 45596 and IEC 268-15.They are available in a satin nickel or a black matt finish.Both condenser microphone capsules are pressure gradient transducer. The converter elements contain a nickel diaphragm with a thickness of less than 1 µm. The back-plate electrodes are Teflon-coated to increase operational reliability.M295 The frequency response in the upper range is nearly linear while in the Iower frequency band it features a slight roII-off to counteract the bass lift of dose speech (proximity effect). The microphone is thus ideally suited for recordings in close proximity to the sound source.lt is recommended to use a popscreen and to switch on the microphone bass rolI-off for closerange applications.A windscreen can be utilized to enhance life-like recording.

Microtech Gefell M 296The M296 condenser microphone is an addition to the metal diaphragm microphone family which includes the M 294 / M 295. Based on thenearly linear frequency response of the transmission factor up to 20 kHz it guarantees orthophonic recordings in the near and far field as well as recordings of high sound levels.lt is designed for professional applications in radio and television broadcasting, sound studios, concert halls, theatres and for high-quality recordings of all genres.The direction of maximum sensitivity is axial. The stable capsule contains a large diameter metal diaphragm similar to our reliable measuring microphone cartridges regarding its construction as a pressure transducer. Capsule and impedance converter are a single unit.The transformerless microphone preamplifier shows a high output capability and has a symmetrical output stage. A 10 dB preattenuation pad and the bass roll-off extend the application range. The two switches are sunk into the middle of the preamplifier.The microphone is equipped with a standard 3-pin XLR connector fitting to a microphone cable, e.g. C70. The operation voltage is provided by 48 V phantom powering according to the international standards DIN 45596 and IEC 268-15.A special version -the M 296 S- is available for measurement applications. Its frequency response complies with DIN EN 60 651for Class 2 sound level meters.The microphone is available in a satin nickel  or a black matt finish.Technical Specifications:Polar pattern:OmniAcoustical operating principle:Pressure transducerFrequency range:20 … 20000 Hz ± 2,5 dBSensitivity at 1 kHz:15 mV / PaSwitch position "reduced bass roll-off" at 90 Hz:-10 dBRated impedance:150 ΩEquivalent loudness level due to inherent noise CCIR 468-4:22 dBDIN EN 60651:14 dB - ASignal-to-noise-ratio(re. 1 Pa at 1 kHz) CCIR-weighted:72 dBA-weighted:80 dBMax. SPL for THD ≤ 0,5 %:134 dBwith preattenuation:144 dBTotal dynamic range:120 dBCurrent consumption (P 48, DIN 45596, IEC 268-15):3 mAOutput connector:3-pin XLR-connector,goldplated contactsWeight:157 gDimensions (L x Ø ):156 x 21/24 mm

Microtech Gefell M 297Capacitor-Studio Microphone

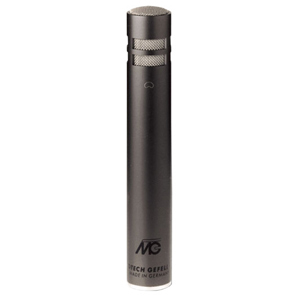

Microtech Gefell M 300The M 300 is a compact condenser microphone in studio quality. The frequency response of the transmission factor is practically linear for a wide range of sound incidence and has a smooth treble boost rising to about 3 dB between 6 and 10 kHz. The miniature microphone is well suited for vocal and instrumental soloists.The M 300 is designed for studio applications in radio, television broadcasting and films for live performance and recording of instruments, vocals and speech and sound reinforcement in the professional and semiprofessional market also under adverse acoustic conditions, e.g. in churches.A new low-noise integrated hybrid circuit and the transformer-less circuit design guarantee an extremely wide dynamic range by a low equivalent loudness level and a high reliability in operation. RFI susceptibility is very low. Technical Specifications:    Pattern: Cardioid    Response: 40Hz - 18kHz    Sensitivity: 12mV/Pa    Self Noise: 16dB A-weighted    Signal to noise: 78dB A-weighted    Maximum SPL: 147dB A-weighted    Dynamic Range: 131dB    Power Requirement: 48V phantom
