DiGiGrid

Features: Compact format 4 Input, 6 Output 96 KHz advanced audio interface Use as a stand-alone device or as an interface to a larger DiGiGrid system Analogue controls for pure sonic performance Designed for all applications: Studio, Educational, Home Studio and Live use. Enhance your DAW and expand your recording capabilities Professional quality network audio interface for PC and MAC High resolution input and output meters Connects to the SoundGrid network via a single Ethernet cable (Cat 5e/Cat 6)

Features: Just 9cm cubed in high grade aluminium extrusion for rugged yet flexible use Songwriters, musicians and engineers tool for 96KHz recording and headphone monitoring 2 inputs / 2 outputs / 48V Phantom / high pass filter and dedicated metering Analogue control path for highest quality warm sonic performance Connects to the SoundGrid network via a single Ethernet cable (Cat 5e/Cat 6) Optional stand mount adaptor for maximum flexibility of placement Stand alone or integrate into larger DiGiGrid Advanced Audio Networks

Features: Just 9cm cubed in high grade aluminium extrusion for rugged yet flexible use 4 types of high-quality monitoring inputs to suit all users AES/EBU on XLR for professional audio applications Connects to the SoundGrid network via a single Ethernet cable (Cat 5e/Cat 6) RCA for the consumer Audiophile Bluetooth for working direct with your digital music collection ¼” or 3.5mm jack sockets for your preferred headphone choice

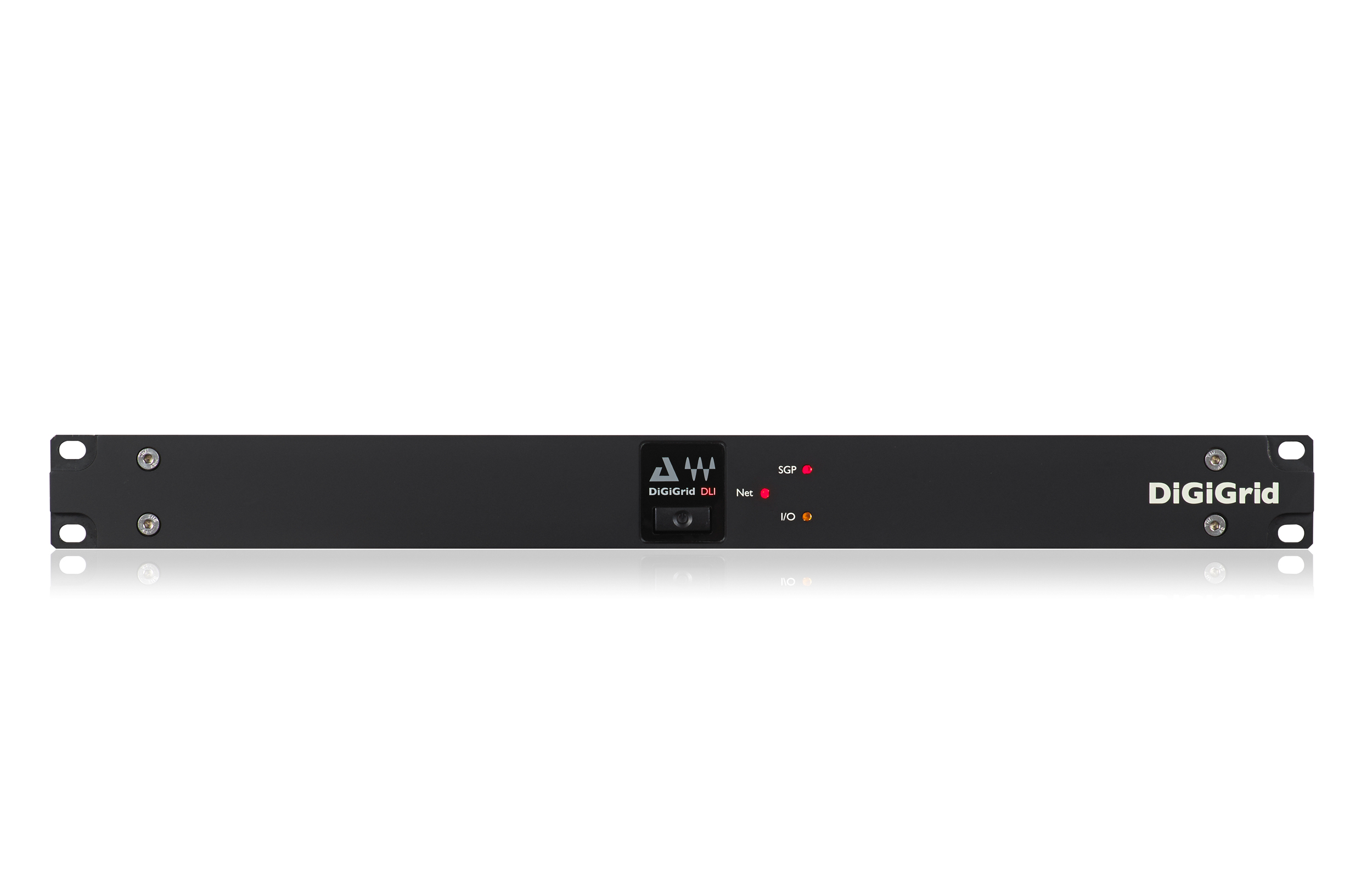

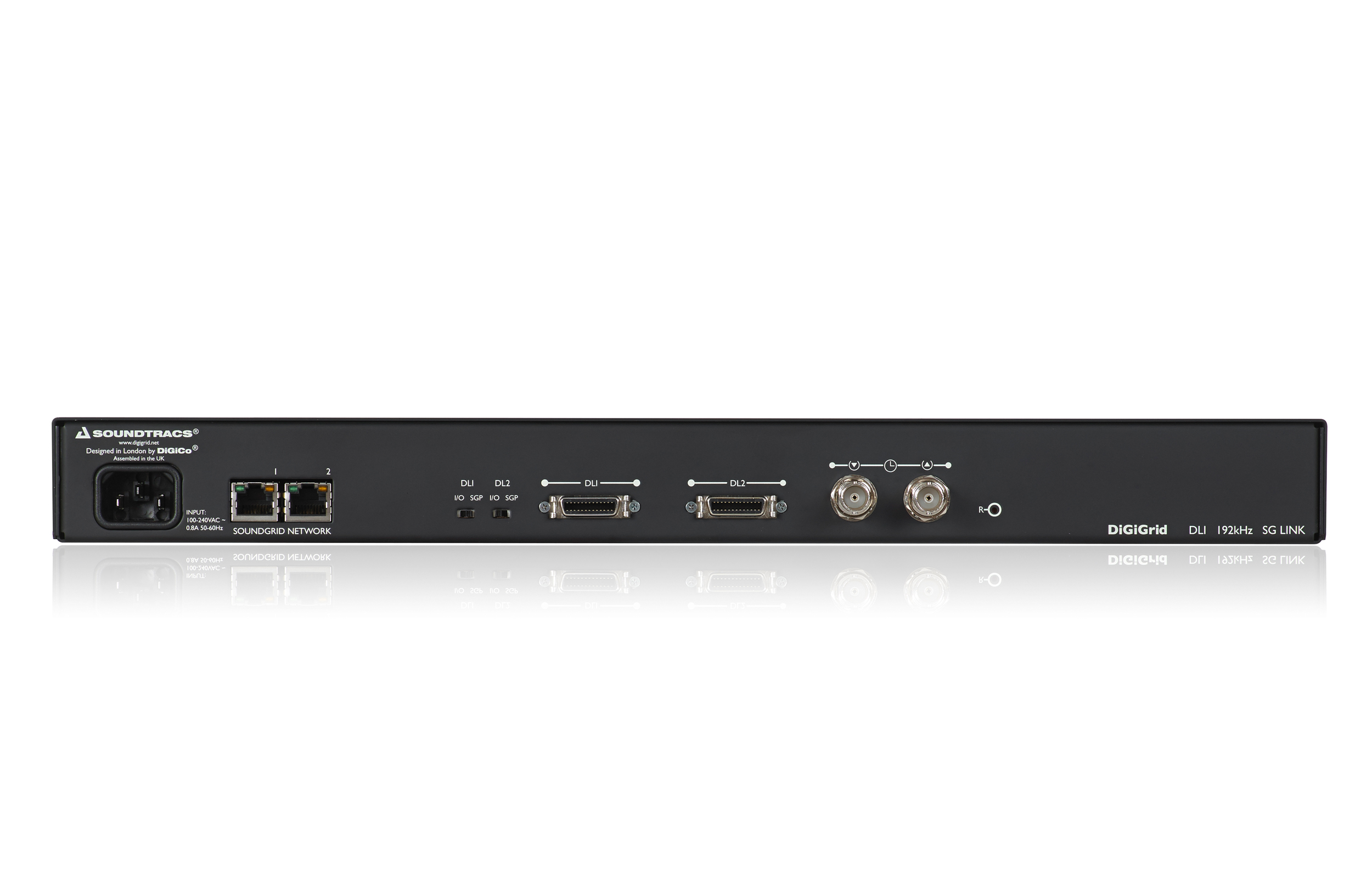

DiGiGrid DLI is a networking hub that bridges Pro Tools and SoundGrid. With two DigiLink ports giving you as many as 64 digital inputs and outputs, DiGiGrid DLI helps you get the most out of your existing Pro Tools system. Add a SoundGrid DSP server to your DLI, and you will enjoy unequaled processing power, with more options for recording, monitoring and mixing in real time. With full plugin integration inside your DAW, DLI lets you run hundreds of Waves and third-party SoundGrid-compatible plugins with near-zero latency of only 0.8 milliseconds. Hardware DiGiGrid DLI has two modes, I/O and SGP: In I/O mode, DLI bridges your Pro Tools system with DiGiGrid I/Os and SoundGrid DSP servers. The Pro Tools system (HD/HDX or HD Native) continues to be your playback engine, while DLI appears as individual I/Os from which you can expand your studio: just connect additional DiGiGrid I/Os and offload your plugin processing to additional SoundGrid servers. In SGP mode, DLI bridges the DAW of your choice (Logic, Cubase, Nuendo, Ableton, Pro Tools Native, etc.) with SoundGrid applications and ASIO/Core Audio drivers, lets you control various DigiLink-compatible I/Os, and enables you to use a SoundGrid server to which you can offload your plugin processing.   In both modes, a single Cat 5e or Cat 6 Ethernet cable will enable you to connect your system to additional DiGiGrid I/Os. Specifications 2 DiGiLink ports with 64 channels (32 channels per port) in either I/O or SGP mode I/O mode: DLI acts as an interface connected to HD Core, HD Accel, HDX, or HD Native cards; supports Pro Tools TDM 10.x and 11.x (see SoundGrid Studio for a list of compatible Pro Tools versions) [LINK would be provided later] SGP mode: DLS acts as a controller for DigiLink-enabled I/Os (Digi192, Digi96, HD Omni, HD I/O, Apogee Symphony I/O, Lynx Aurora 8, Lynx Aurora 16) 2 SoundGrid RJ45 Ethernet ports 1 AC input 1 Word Clock/Loop Sync I/O 1 USB port 1U rackmount Supported sample rates: 44.1, 48, 88.2 and 96 kHz (176.4 and 192 kHz will be supported in the future) Recovery switch Clocking options: Word Clock/Loop Sync, SoundGrid (SoE), or DigiLink Software The DLI installer includes the relevant drivers and software for your unit: the SoundGrid ASIO/Core Audio driver, the SoundGrid Studio Application, the eMotion ST mixer, StudioRack, and the DLI Control Panel. DiGiGrid DLI Comes with the Complete SoundGrid Studio System Software by Waves The SoundGrid Studio System is the next generation of sound technology. It is a real-time processing and networking platform designed to bring your studio up to light speed. It allows your DAW to offload its plugin processing to a SoundGrid DSP server and enables your devices to communicate with one another and with the devices of the people you work with. The SoundGrid Studio System integrates seamlessly with all DAWs and DiGiGrid (or other SoundGrid-compatible) I/Os, providing endless possibilities for setups of every size—from a single DAW with one DiGiGrid I/O, to an entire network of host computers, I/Os, and SoundGrid DSP servers. The SoundGrid Studio System Gives You the Power to Do More Real-Time Processing – Run hundreds of plugins simultaneously. Low-Latency Monitoring – Track and rehearse with full-on plugins in near-zero latency. Networking – Connect everything and everyone through a centralized hub. Seamless Integration – Connect multiple DAWs using the SoundGrid ASIO/Core Audio driver. Open Architecture – Compliant with SoundGrid-compatible Waves and third-party plugins. SoundGrid Studio System Software Components SoundGrid Studio Application – For managing the SoundGrid network on your host computer. eMotion ST Mixer –Low-latency monitoring for tracking and rehearsing. StudioRack –For running plugin chains, saving and loading their presets, and offloading their processing to a SoundGrid DSP server. SoundGrid ASIO/Core Audio – Connects any DAW to the SoundGrid network as a software I/O. SoundGrid Studio Application The SoundGrid Studio Application is your tool for managing all software and hardware connected to the SoundGrid network. With its dynamic I/O mapping ability, the SoundGrid Studio Application lets you configure your SoundGrid network, manage its various components, and set up any combination of drivers and SoundGrid-compatible devices. It also enables I/O sharing between several computers, allowing you to manage their resources from your host computer. The SoundGrid Studio Application enables you to: Configure your SoundGrid ASIO/Core Audio driver and DiGiGrid I/Os. (Auto-configuration Wizard available.) Process, mix and monitor in real time (together with StudioRack and the eMotion ST mixer). Connect and patch multiple hardware devices and software I/Os. Stream audio from and to multiple host computers running different DAWs. Create and save your own configuration templates. Control the parameters of your DiGiGrid I/Os (channel input gain, phantom power, etc.). eMotion ST Mixer eMotion ST is the mixer part of the SoundGrid Studio System. Combined with StudioRack, it lets you run SoundGrid plugins for low-latency monitoring, giving you complex monitor mixing options while recording with your DAW. eMotion ST is a high-quality mixer with 8 multi-purpose inputs, 64 additional StudioRack input channels, 2 FX busses, 6 mix busses, and a main stereo mix. Since the mixer operates within the SoundGrid network, any DiGiGrid I/O or any available SoundGrid-compatible I/O device, whether hardware or driver-based, can provide it with inputs and outputs. The eMotion ST mixer can run hundreds of Waves and third-party SoundGrid-compatible plugins in low latency, replacing in this respect the external mixer traditionally used to create monitor mixes for studios and headphones. 8 multi-purpose mono/stereo input channels 2 stereo FX aux buss/returns and 6 stereo aux buss/returns Up to 64 mono channel feeds from StudioRack plugins 8 insert slots per channel for SoundGrid plugins Connects to multiple DiGiGrid I/Os and other SoundGrid-compatible devices and hosts Compliant with SoundGrid-compatible Waves and third-party plugins Fully integrates with StudioRack Enables use of SoundGrid plugins as standalone processors for any purpose Requires at least one DiGiGrid I/O and a SoundGrid DSP server StudioRack StudioRack is a software rack dedicated to running plugin chains. The processing of each chain can then be directed to your host computer’s CPU or to a SoundGrid DSP server (if present), as you choose. When you process your plugin chains on a SoundGrid server, StudioRack lets you monitor your tracks in extremely low latency via the eMotion ST mixer. StudioRack is compatible with most popular DAWs, with a dedicated component for Pro Tools TDM and HDX systems which enables you to offload your plugin processing to the SoundGrid server if you choose to use one. Compatible with most popular DAWs Plugin chains are processed on local CPU or SoundGrid DSP server Compatible with Pro Tools HD/HDX and HD Native Compatible with Waves and third-party plugins Enables  monitoring in super-low latency Up to 8 plugins per rack Fully automatable Plugin chain presets can be loaded on any DAW as well as on MultiRack and eMotion ST Instant access to plugin parameters within each chain Intuitive MIDI control over all plugins Avid Control Surface support DiGiGrid DLI Control Panel For controlling and overseeing your DiGiGrid DLI settings and the DLI’s connection with peripheral DigiLink-enabled devices. Set and view clock settings: source, sample rate, type, status Control all connections to DigiLink-enabled peripheral I/Os Set and control analog and digital inputs and outputs Save and load presets of unit settings Save your settings along with your Waves and SoundGrid host application sessions

Custom-designed with the control room in mind, the DiGiGrid IOC audio interface features a variety of connectivity options: 2 mic/line inputs with broadcast-grade preamps, 8 line inputs/outputs, 16 AES inputs/outputs, an ADAT input/output, plus two powerful headphone outputs. Plug into the SoundGrid network using a single Ethernet cable, and the IOC will open up a world of real-time tracking, mixing and monitoring, with super-low latency of only 0.8 milliseconds. With the DiGiGrid IOC and a SoundGrid DSP server, you can run hundreds of SoundGrid-compatible plugins from Waves and other developers, all fully integrated within your DAW. Hardware General 8x line inputs (25-pin D-Con) 8x line outputs (25-pin D-Con) 16x AES/EBU I/O (2x 25-pin D-Con) 1x ADAT I/O (8 channels @ 48kHz; 4 channels @ 96kHz; 2 channels @ 192kHz*) 2x Mic inputs (XLR/TRS combo) 2x SoundGrid RJ45 Ethernet ports 1x Word clock I/O 1x AC input 2x headphone outputs with analog level knobs 1U rack-mounted Supported sample rates: 44.1, 48, 88.2, 96, 176.4*, 192* kHz Clock Synchronization via Word Clock input, AES/EBU, SoundGrid (SoE), Internal Reset switch Multiple broadcast level format settings (jumpers on all analog I/Os)   Inputs Mic input impedance: 2K5 Ohms Phantom power: 48V Line input impedance: 8K0 Ohms Mic gain range: -20 to +60dB in 0.5dB steps Line gain range: -30 to +50dB in 0.5dB steps Mic maximum input level: +26dBu Line maximum input level: +36dBu Mic equivalent input noise: >-126dB (150 Ohm source, Gain +60dB) Frequency response: +/-0.5dB 20Hz to 20kHz Channel separation: Better than 90dB (40Hz to 15kHz)   Outputs Maximum line output level: +22dBu Residual line output noise: Frequency Response: +/-0.5dB 20Hz to 20kHz Line output impedance: 50 Ohms Channel separation: Better than 90dB (40Hz to 15kHz) Software The IOC installer includes the relevant drivers and software for your unit: the SoundGrid ASIO/Core Audio driver, the SoundGrid Studio Application, the eMotion ST mixer, StudioRack, and the IOC Control Panel. The SoundGrid Studio System is the next generation of sound technology. It is a real-time processing and networking platform designed to bring your studio up to light speed. It allows your DAW to offload its plugin processing to a SoundGrid DSP server and enables your devices to communicate with one another and with the devices of the people you work with. The SoundGrid Studio System integrates seamlessly with all DAWs and DiGiGrid (or other SoundGrid-compatible) I/Os, providing endless possibilities for setups of every size—from a single DAW with one DiGiGrid I/O, to an entire network of host computers, I/Os, and SoundGrid DSP servers. The SoundGrid Studio System Gives You the Power to Do More Real-Time Processing – Run hundreds of plugins simultaneously. Low-Latency Monitoring – Track and rehearse with full-on plugins in near-zero latency Networking – Connect everything and everyone through a centralized hub. Seamless Integration – Connect multiple DAWs using the SoundGrid ASIO/Core Audio driver Open Architecture – Compliant with SoundGrid-compatible Waves and third-party plugins.   SoundGrid Studio System Software Components SoundGrid Studio Application – For managing the SoundGrid network on your host computer. eMotion ST Mixer –Low-latency monitoring with SoundGrid plugins for tracking and rehearsing. StudioRack –For running plugin chains, saving and loading their presets, and offloading their processing to a SoundGrid DSP server. SoundGrid ASIO/Core Audio – Connects any DAW to the SoundGrid network as a software I/O. SoundGrid Studio Application The SoundGrid Studio Application is your tool for managing all software and hardware connected to the SoundGrid network. With its dynamic I/O mapping ability, the SoundGrid Studio Application lets you configure your SoundGrid network, manage its various components, and set up any combination of drivers and SoundGrid-compatible devices. It also enables I/O sharing between several computers, allowing you to manage their resources from your host computer. The SoundGrid Studio Application enables you to: Configure your SoundGrid ASIO/Core Audio driver and DiGiGrid I/Os. (Auto-configuration Wizard available.) Process, mix and monitor in real time (together with StudioRack and the eMotion ST mixer). Connect and patch multiple hardware devices and software I/Os. Stream audio from and to multiple host computers running different DAWs. Create and save your own configuration templates. Access the DiGiGrid I/O Control  Panel for controlling the parameters of your I/O (channel input gain, phantom power, etc.). eMotion ST Mixer eMotion ST is the mixer part of the SoundGrid Studio System. Combined with StudioRack, it lets you run SoundGrid plugins for low-latency monitoring, giving you complex monitor mixing options while recording with your DAW. eMotion ST is a high-quality mixer with 8 multi-purpose inputs, 64 additional StudioRack input channels, 2 FX busses, 6 mix busses, and a main stereo mix. Since the mixer operates within the SoundGrid network, any DiGiGrid I/O or any available SoundGrid-compatible I/O device, whether hardware or driver-based, can provide it with inputs and outputs. The eMotion ST mixer can run hundreds of Waves and third-party SoundGrid-compatible plugins in low latency, replacing in this respect the external mixer traditionally used to create monitor mixes for studios and headphones. 8 multi-purpose mono/stereo input channels 2 stereo FX aux buss/returns and 6 stereo aux buss/returns Up to 64 mono channel feeds from StudioRack plugins 8 insert slots per channel for SoundGrid plugins Connects to multiple DiGiGrid I/Os and other SoundGrid-compatible devices and hosts Compliant with SoundGrid-compatible Waves and third-party plugins Fully integrates with StudioRack Enables use of SoundGrid plugins as standalone processors for any purpose Requires at least one DiGiGrid I/O and a SoundGrid DSP server StudioRack StudioRack is a software rack dedicated to running plugin chains. The processing of each chain can then be directed to your host computer’s CPU or to a SoundGrid DSP server, as you choose. When you process your plugin chains on a SoundGrid server, StudioRack lets you monitor your tracks in extremely low latency via the eMotion ST mixer. Compatible with most popular DAWs Plugin chains are processed on local CPU or SoundGrid DSP server Compatible with Waves and third-party plugins Enables  monitoring in super-low latency Up to 8 plugins per rack Fully automatable Plugin chain presets can be loaded on any DAW as well as on MultiRack and eMotion ST Instant access to plugin parameters within each chain Intuitive MIDI control over all plugins Avid Control Surface support

Ideal for your studio’s performance/recording room, DiGiGrid IOX is a high-count I/O interface featuring 12 mic/line inputs with broadcast/studio-quality preamps and 6 line outputs. With four customizable headphone outputs which allow individual mixes for each musician, the IOX delivers high-resolution monitoring whether you’re performing in the studio or listening in the control room. Plug the IOX into your SoundGrid network with a single Ethernet cable, and you will enter a new world of real-time tracking, mixing and monitoring. And that’s not all: With a SoundGrid DSP server on your network, you can run hundreds of SoundGrid-compatible plugins from Waves and other developers, fully integrated within your DAW, with latency of only 0.8 milliseconds. Hardware General 12x mic/line inputs (XLR/TRS combo) 6x line outputs (TRS) 1x word clock I/O 2x SoundGrid RJ45 Ethernet ports 1x AC input 4x headphone outputs with analog level knobs 6x channel line outputs (TRS) 1U rack-mounted Supported sample rates: 44.1, 48, 88.2, 96, 176.4*, 192* kHz Clock synchronization via Word Clock input, SoundGrid (Sync over Ethernet), Internal Reset switch Multiple broadcast level format settings (jumpers on all analog I/Os) Inputs Mic input impedance: 2K5 Ohms Phantom power: 48V Line input impedance: 8K0 Ohms Mic gain range: -20 to +60dB in 0.5dB steps Line gain range: -30 to +50dB in 0.5dB steps Mic maximum input level: +26dBu Line maximum input level: +36dBu Mic equivalent input noise: >-126dB (150 Ohm source, Gain +60dB) Frequency response: +/-0.5dB 20Hz to 20kHz Channel separation: Better than 90dB (40Hz to 15kHz) Outputs Maximum line output level: +22dBu Residual line output noise: Frequency Response: +/-0.5dB 20Hz to 20kHz Line output impedance: 50 Ohms Channel separation: Better than 90dB (40Hz to 15kHz) Software The IOX installer includes the relevant drivers and software for your unit: the SoundGrid ASIO/Core Audio driver, the SoundGrid Studio Application, the eMotion ST mixer, StudioRack, and the IOX Control Panel. DiGiGrid IOX Comes with the Complete SoundGrid Studio System Software by Waves The SoundGrid Studio System is the next generation of sound technology. It is a real-time processing and networking platform designed to bring your studio up to light speed. It allows your DAW to offload its plugin processing to a SoundGrid DSP server and enables your devices to communicate with one another and with the devices of the people you work with. The SoundGrid Studio System integrates seamlessly with all DAWs and DiGiGrid (or other SoundGrid-compatible) I/Os, providing endless possibilities for setups of every size—from a single DAW with one DiGiGrid I/O, to an entire network of host computers, I/Os, and SoundGrid DSP servers. The SoundGrid Studio System Gives You the Power to Do More Real-Time Processing – Run hundreds of plugins simultaneously. Low-Latency Monitoring – Track and rehearse with full-on plugins in near-zero latency Networking – Connect everything and everyone through a centralized hub. Seamless Integration – Connect multiple DAWs using the SoundGrid ASIO/Core Audio driver Open Architecture – Compliant with SoundGrid-compatible Waves and third-party plugins. SoundGrid Studio System Software Components SoundGrid Studio Application – For managing the SoundGrid network on your host computer. eMotion ST Mixer –Low-latency monitoring with SoundGrid plugins for tracking and rehearsing. StudioRack –For running plugin chains, saving and loading their presets, and offloading their processing to a SoundGrid DSP server. SoundGrid ASIO/Core Audio – Connects any DAW to the SoundGrid network as a software I/O. SoundGrid Studio Application The SoundGrid Studio Application is your tool for managing all software and hardware connected to the SoundGrid network. With its dynamic I/O mapping ability, the SoundGrid Studio Application lets you configure your SoundGrid network, manage its various components, and set up any combination of drivers and SoundGrid-compatible devices. It also enables I/O sharing between several computers, allowing you to manage their resources from your host computer. The SoundGrid Studio Application enables you to: Configure your SoundGrid ASIO/Core Audio driver and DiGiGrid I/Os. (Auto-configuration Wizard available.) Process, mix and monitor in real time (together with StudioRack and the eMotion ST mixer). Connect and patch multiple hardware devices and software I/Os. Stream audio from and to multiple host computers running different DAWs. Create and save your own configuration templates. Access the DiGiGrid I/O Control  Panel for controlling the parameters of your I/O (channel input gain, phantom power, etc.). eMotion ST Mixer eMotion ST is the mixer part of the SoundGrid Studio System. Combined with StudioRack, it lets you run SoundGrid plugins for low-latency monitoring, giving you complex monitor mixing options while recording with your DAW. eMotion ST is a high-quality mixer with 8 multi-purpose inputs, 64 additional StudioRack input channels, 2 FX busses, 6 mix busses, and a main stereo mix. Since the mixer operates within the SoundGrid network, any DiGiGrid I/O or any available SoundGrid-compatible I/O device, whether hardware or driver-based, can provide it with inputs and outputs. The eMotion ST mixer can run hundreds of Waves and third-party SoundGrid-compatible plugins in low latency, replacing in this respect the external mixer traditionally used to create monitor mixes for studios and headphones. 8 multi-purpose mono/stereo input channels 2 stereo FX aux buss/returns and 6 stereo aux buss/returns Up to 64 mono channel feeds from StudioRack plugins 8 insert slots per channel for SoundGrid plugins Connects to multiple DiGiGrid I/Os and other SoundGrid-compatible devices and hosts Compliant with SoundGrid-compatible Waves and third-party plugins Fully integrates with StudioRack Enables use of SoundGrid plugins as standalone processors for any purpose Requires at least one DiGiGrid I/O and a SoundGrid DSP server StudioRack StudioRack is a software rack dedicated to running plugin chains. The processing of each chain can then be directed to your host computer’s CPU or to a SoundGrid DSP server, as you choose. When you process your plugin chains on a SoundGrid server, StudioRack lets you monitor your tracks in extremely low latency via the eMotion ST mixer. Compatible with most popular DAWs Plugin chains are processed on local CPU or SoundGrid DSP server Compatible with Waves and third-party plugins Enables  monitoring in super-low latency Up to 8 plugins per rack Fully automatable Plugin chain presets can be loaded on any DAW as well as on MultiRack and eMotion ST Instant access to plugin parameters within each chain Intuitive MIDI control over all plugins Avid Control Surface support

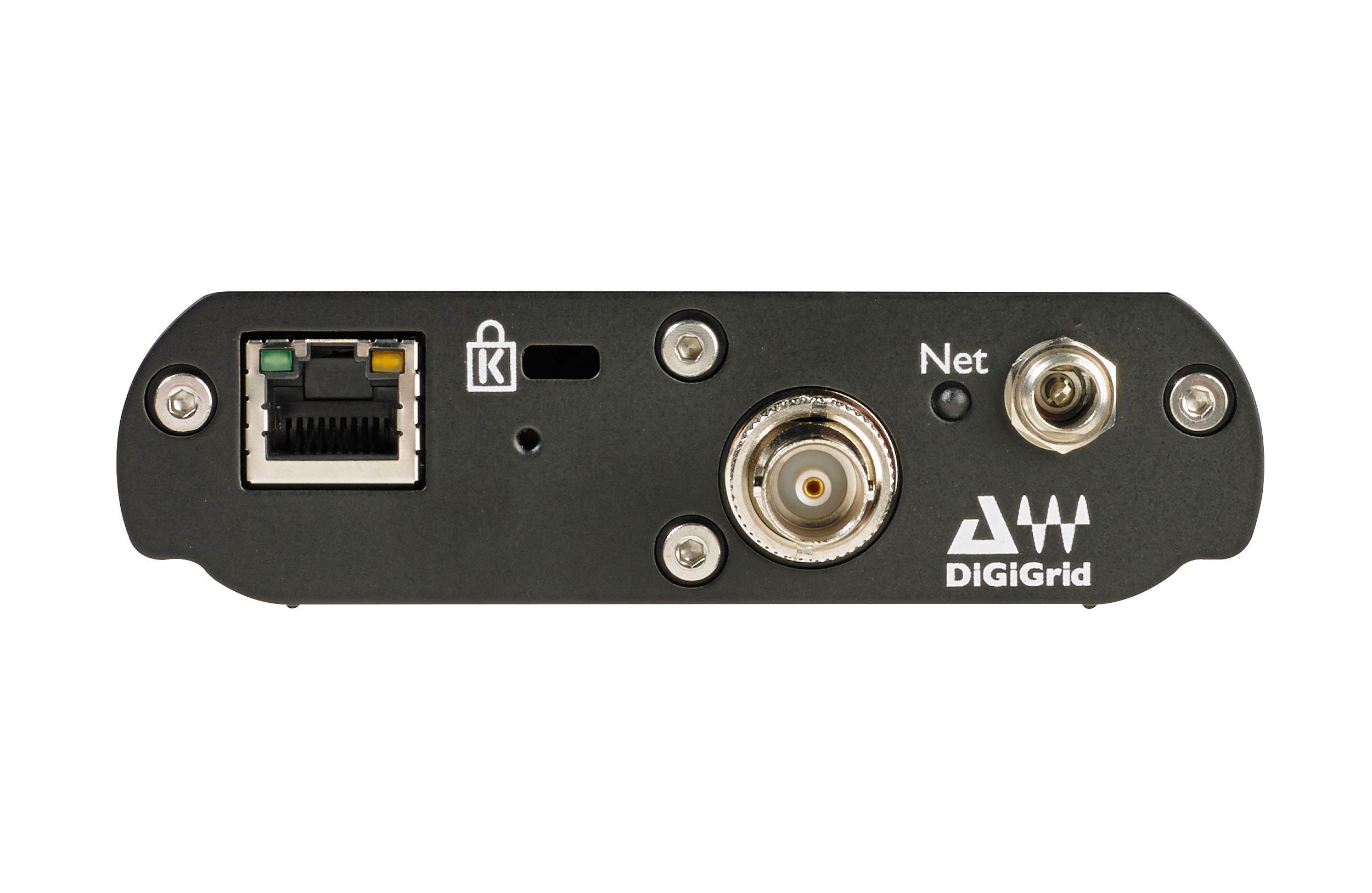

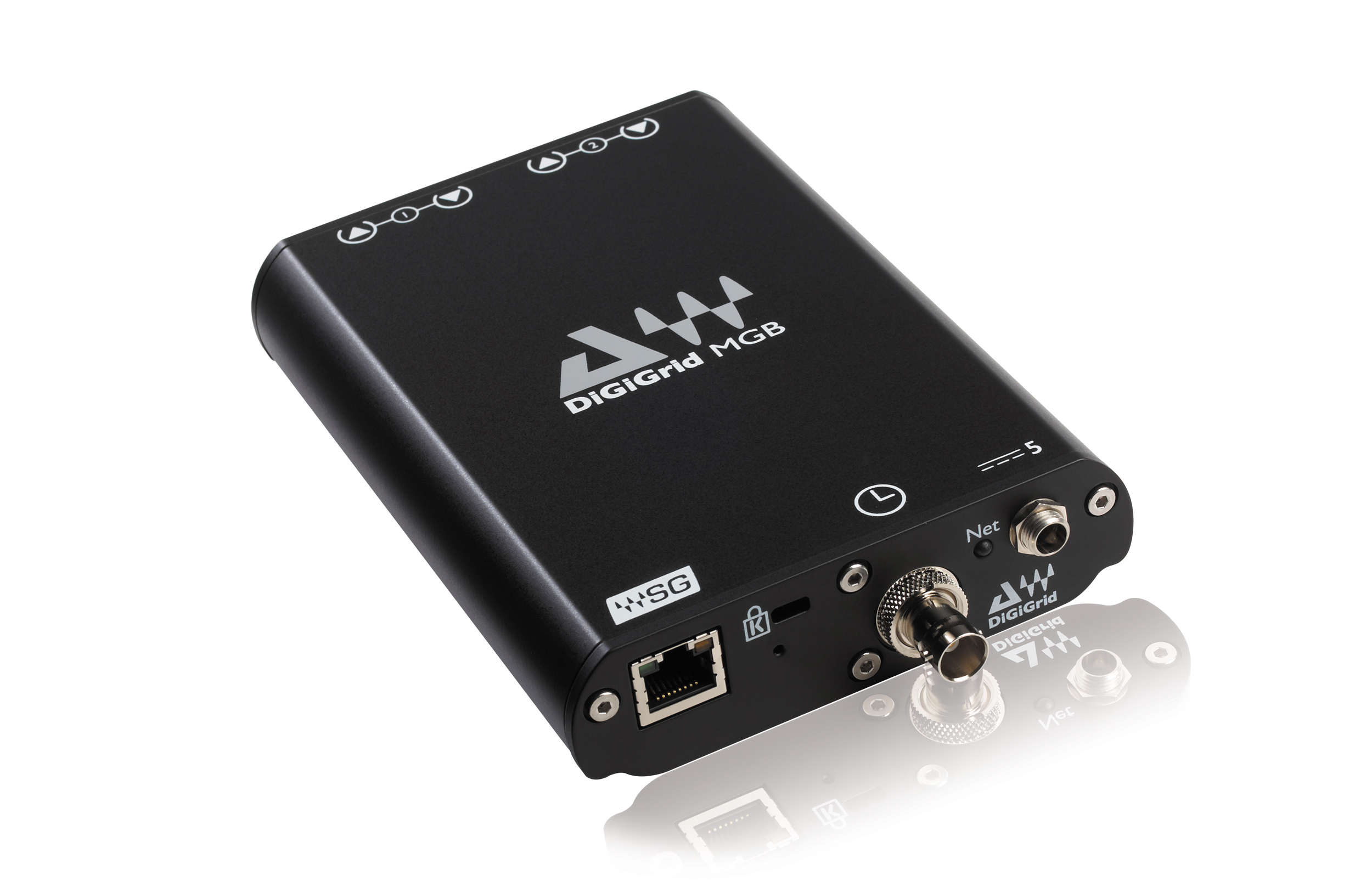

Compact and portable, the DiGiGrid MGB interface lets you plug any coaxial MADI-enabled device into the power of the Waves SoundGrid networking and processing platform. Record, process and playback up to 128 audio channels, using literally hundreds of Waves and third-party plugins, with super-low latency, clocking in at only 0.8 milliseconds! You can even record to two computers simultaneously: One for virtual soundcheck, the other for backup. So if you’re on the tour bus, in your hotel room, at the airport – wherever – you can quickly and conveniently setup your next show, using only your laptop. With a DiGiGrid MGB MADI-to-SoundGrid interface, real-time low-latency networking and processing is only an Ethernet cable away. Hardware Plug the MGB straight into your computer to record up to 128 channels with simultaneous playback of 128 channels. Add a SoundGrid DSP server and DiGiGrid SWI network switch plus Waves MultiRack SoundGrid host application, and your MADI-compatible live or broadcast console now has real-time low-latency processing capabilities. And if you require a higher level of audio quality, a simple configuration change switches the MGB to 96kHz, for 64 channels of recording and 64 channels of simultaneous playback.   Specifications MADI Coaxial I/O (BNC) Supported sample rates: 44.1, 48, 88.2, 96 kHz 112/128 channel I/O @ 48kHz 56/64 channel I/O @ 96kHz 56 and 64 channel mode support Supports double wire (48k frame) and single wire (96k frame) @ 96kHz Clock Synchronization via Word Clock input, MADI (Port 1 or 2), SoundGrid (Sync over Ethernet), Internal 1 SoundGrid RJ45 Ethernet port Reset switch DiGiCo Stage Rack channel 57 support Software The MGB installer includes the relevant drivers and software for your unit: the SoundGrid ASIO/Core Audio driver, the SoundGrid Studio Application, the eMotion ST mixer, StudioRack, and the MGB Control Panel. DiGiGrid MGB Comes with the Complete Soundgrid Studio System Software by Waves The SoundGrid Studio System is the next generation of sound technology. It is a real-time processing and networking platform designed to bring your studio up to light speed. It allows your DAW to offload its plugin processing to a SoundGrid DSP server and enables your devices to communicate with one another and with the devices of the facilities you work with. The SoundGrid Studio System integrates seamlessly with all DAWs and DiGiGrid (or other SoundGrid-compatible) I/Os, providing endless possibilities for setups of every size—from a single DAW with one DiGiGrid I/O, to an entire network of host computers, I/Os, and SoundGrid DSP servers. The SoundGrid Studio System Gives You the Power to Do More Real-Time Processing – Run hundreds of plugins simultaneously. Low-Latency Monitoring – Track and rehearse with full-on plugins in near-zero latency Networking – Connect everything and everyone through a centralized hub. Seamless Integration – Connect multiple DAWs using the SoundGrid ASIO/Core Audio driver Open Architecture – Compliant with SoundGrid-compatible Waves and third-party plugins.   SoundGrid Studio System Software Components SoundGrid Studio Application – For managing the SoundGrid network on your host computer. eMotion ST Mixer –Runs plugins in real time for recording, mixing and low-latency monitoring when tracking and rehearsing. StudioRack –For running plugin chains, saving and loading their presets, and offloading their processing to a SoundGrid DSP server. SoundGrid ASIO/Core Audio – Connects any DAW to the SoundGrid network as a software I/O. SoundGrid Studio Application The SoundGrid Studio Application is your tool for managing all software and hardware connected to the SoundGrid network. With its dynamic I/O mapping ability, the SoundGrid Studio Application lets you configure your SoundGrid network, manage its various components, and set up any combination of drivers and SoundGrid-compatible devices. It also enables I/O sharing between several computers, allowing you to manage their resources from your host computer. The SoundGrid Studio Application enables you to: Configure your SoundGrid ASIO/Core Audio driver and DiGiGrid I/Os. (Auto-configuration Wizard available.) Process, mix and monitor in real time (together with StudioRack and the eMotion ST mixer). Connect and patch multiple hardware devices and software I/Os. Stream audio from and to multiple host computers running different DAWs. Create and save your own configuration templates. Access the DiGiGrid I/O Control  Panel for controlling the I/O’s parameters eMotion ST Mixer eMotion ST is the mixer part of the SoundGrid Studio System. Combined with StudioRack, it lets you run SoundGrid plugins for low-latency monitoring, giving you complex monitor mixing options while recording with your DAW. eMotion ST is a high-quality mixer with 8 multi-purpose inputs, 64 additional StudioRack input channels, 2 FX busses, 6 mix busses, and a main stereo mix. Since the mixer operates within the SoundGrid network, any DiGiGrid I/O or any available SoundGrid-compatible I/O device, whether hardware or driver-based, can provide it with inputs and outputs. The eMotion ST mixer can run hundreds of Waves and third-party SoundGrid-compatible plugins in low latency, replacing in this respect the external mixer traditionally used to create monitor mixes for studios and headphones. 8 multi-purpose mono/stereo input channels 2 stereo FX aux buss/returns and 6 stereo aux buss/returns Up to 64 mono channel feeds from StudioRack plugins 8 insert slots per channel for SoundGrid plugins Connects to multiple DiGiGrid I/Os and other SoundGrid-compatible devices and hosts Compliant with SoundGrid-compatible Waves and third-party plugins Fully integrates with StudioRack Enables use of SoundGrid plugins as standalone processors for any purpose Requires at least one DiGiGrid I/O and a SoundGrid DSP server. StudioRack StudioRack is a software rack dedicated to running plugin chains. The processing of each chain can then be directed to your host computer’s CPU or to a SoundGrid DSP server, as you choose. When you process your plugin chains on the SoundGrid server, StudioRack lets you monitor your tracks in extremely low latency via the eMotion ST mixer. Compatible with most popular DAWs Plugin chains are processed on local CPU or SoundGrid DSP server Compatible with Waves and third-party plugins Enables  monitoring in super-low latency Up to 8 plugins per rack Fully automatable Plugin chain presets can be loaded on any DAW as well as on MultiRack and eMotion ST Instant access to plugin parameters within each chain Intuitive MIDI control over all plugins Avid Control Surface support DiGiGrid MGB Control Panel Clock settings: source, sample rate, type, status SMUX and Hi-Speed modes available for 96/88.2 kHz operation 56/64 channel operation modes Save and load presets of unit settings Save your settings along with your Waves and SoundGrid host application sessions

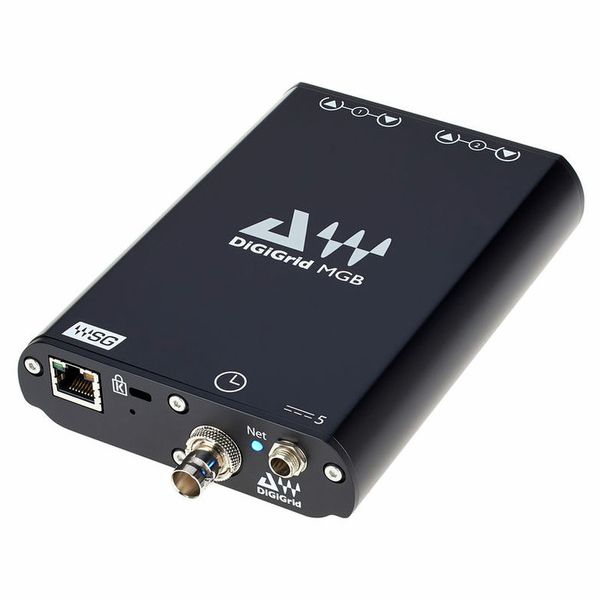

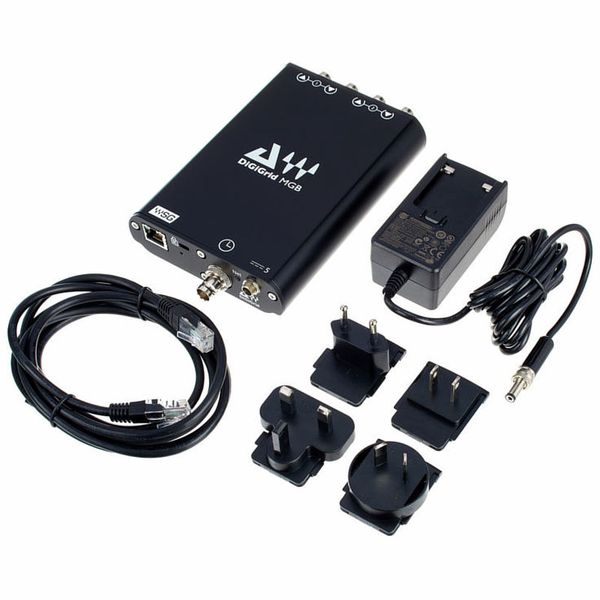

Das DiGiGrid MGB - MADI BNC ist ein professionelles Audio-Netzwerkinterface zur Verbindung von MADI-fähiger Hardware mit SoundGrid-Netzwerken. Entwickelt für Live-Sound, Broadcast, Tonstudios und Immersive-Audio-Anwendungen ermöglicht das MGB die nahtlose Integration von MADI-Geräten in latenzarme SoundGrid-Umgebungen. Mit hoher Kanalanzahl, zuverlässiger BNC-MADI-Konnektivität und professioneller Netzwerkintegration bietet es maximale Flexibilität für moderne Audioworkflows.

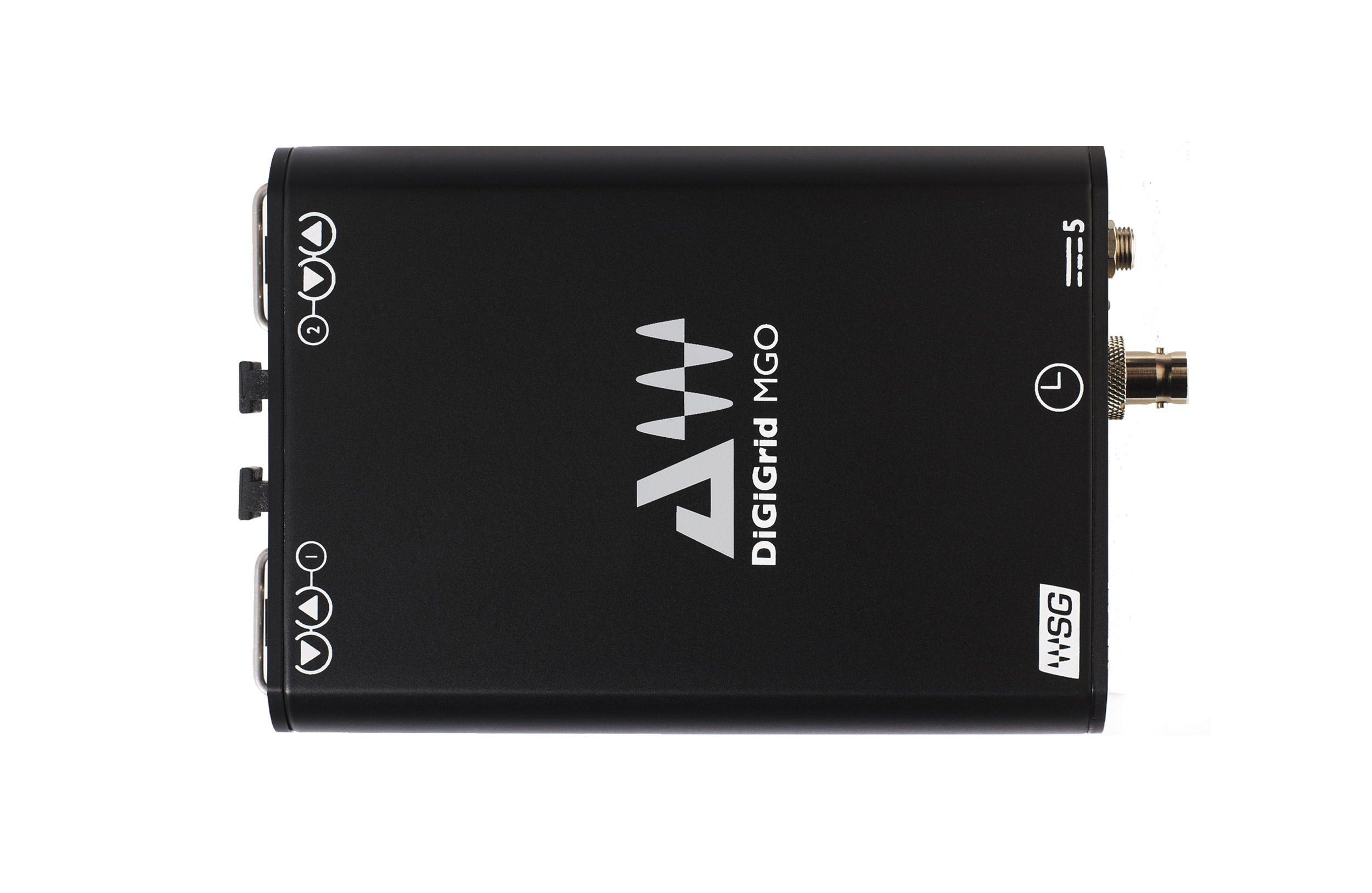

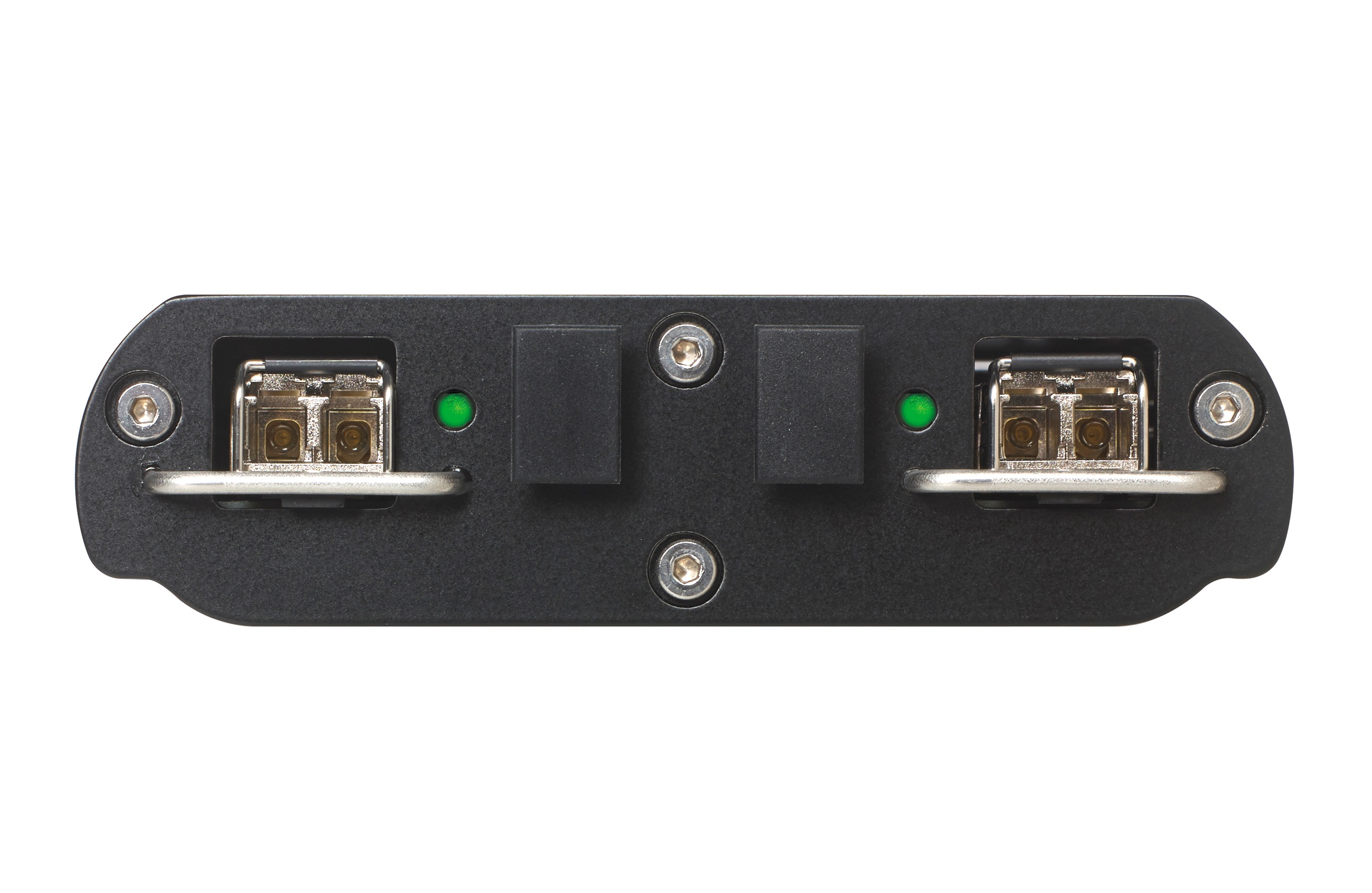

The DiGiGrid MGO interface gives you the ability to connect any optical MADI-enabled device to Waves SoundGrid, for networking and processing. Use hundreds of Waves and third-party plugins to record, process and playback up to 128 audio channels, with super-low latency of only 0.8 milliseconds. This compact and portable MADI interface even lets you record to two computers at the same time, so you can use one for virtual soundcheck, the other for backup. Whether you’re in a hotel room, on the tour bus or between flights, you can get to work setting up your next show – on your laptop. With a DiGiGrid MGO MADI-to-SoundGrid interface and an Ethernet cable, real-time low-latency networking and processing is at your fingertips. Hardware In its most basic mode, connect the MGO straight to your laptop or desktop: You can now record up to 128 channels through your computer’s 1GB Ethernet port, with simultaneous playback of 128 channels. Add a SoundGrid DSP server and SWI plus Waves MultiRack SoundGrid host application, and now any MADI-compatible live or broadcast console has instant access to real-time low-latency processing. Does your application demand a higher level of audio quality? A simple configuration change switches the unit over to 96kHz, with 64 channels of recording and 64 channels of simultaneous playback. And if longer distance optical fiber cable runs are required, simply upgrade either or both of the MGO’s standard dual mode transceivers to optional single mode transceivers.   Specifications MADI Optical I/O (SFP) Supported sample rates: 44.1, 48, 88.2, 96 kHz 112/128 channel I/O @ 48kHz 56/64 channel I/O @ 96kHz 56 and 64 channel mode support Double wire (48k frame) and single wire (96k frame) @ 96kHz support Clock synchronization via Word Clock input, MADI (port A), SoundGrid (Sync over Ethernet), Internal 1 SoundGrid RJ45 Ethernet port Reset switch DiGiCo Stage Rack channel 57 support Software The DiGiGrid MGO interface gives you the ability to connect any optical MADI-enabled device to Waves SoundGrid, for networking and processing. Use hundreds of Waves and third-party plugins to record, process and playback up to 128 audio channels, with super-low latency of only 0.8 milliseconds. This compact and portable MADI interface even lets you record to two computers at the same time, so you can use one for virtual soundcheck, the other for backup. Whether you’re in a hotel room, on the tour bus or between flights, you can get to work setting up your next show – on your laptop. With a DiGiGrid MGO MADI-to-SoundGrid interface and an Ethernet cable, real-time low-latency networking and processing is at your fingertips. Videos Hardware Software Setup Downloads The MGO installer includes the relevant drivers and software for your unit: the SoundGrid ASIO/Core Audio driver, the SoundGrid Studio Application, the eMotion ST mixer, StudioRack, and the MGO Control Panel. DiGiGrid MGO Comes with the Complete Soundgrid Studio System Software by Waves The SoundGrid Studio System is the next generation of sound technology. It is a real-time processing and networking platform designed to bring your studio up to light speed. It allows your DAW to offload its plugin processing to a SoundGrid DSP server and enables your devices to communicate with one another and with the devices of the facilities you work with. The SoundGrid Studio System integrates seamlessly with all DAWs and DiGiGrid (or other SoundGrid-compatible) I/Os, providing endless possibilities for setups of every size—from a single DAW with one DiGiGrid I/O, to an entire network of host computers, I/Os, and SoundGrid DSP servers. The SoundGrid Studio System Gives You the Power to Do More Real-Time Processing – Run hundreds of plugins simultaneously. Low-Latency Monitoring – Track and rehearse with full-on plugins in near-zero latency Networking – Connect everything and everyone through a centralized hub. Seamless Integration – Connect multiple DAWs using the SoundGrid ASIO/Core Audio driver Open Architecture – Compliant with SoundGrid-compatible Waves and third-party plugins. SoundGrid Studio System Software Components SoundGrid Studio Application – For managing the SoundGrid network on your host computer. eMotion ST Mixer –Runs plugins in real time for recording, mixing and low-latency monitoring when tracking and rehearsing. StudioRack –For running plugin chains, saving and loading their presets, and offloading their processing to a SoundGrid DSP server. SoundGrid ASIO/Core Audio – Connects any DAW to the SoundGrid network as a software I/O. SoundGrid Studio Application The SoundGrid Studio Application is your tool for managing all software and hardware connected to the SoundGrid network. With its dynamic I/O mapping ability, the SoundGrid Studio Application lets you configure your SoundGrid network, manage its various components, and set up any combination of drivers and SoundGrid-compatible devices. It also enables I/O sharing between several computers, allowing you to manage their resources from your host computer. The SoundGrid Studio Application enables you to: Configure your SoundGrid ASIO/Core Audio driver and DiGiGrid I/Os. (Auto-configuration Wizard available.) Process, mix and monitor in real time (together with StudioRack and the eMotion ST mixer). Connect and patch multiple hardware devices and software I/Os. Stream audio from and to multiple host computers running different DAWs. Create and save your own configuration templates. Access the DiGiGrid I/O Control  Panel for controlling the I/O’s parameters eMotion ST Mixer eMotion ST is the mixer part of the SoundGrid Studio System. Combined with StudioRack, it lets you run SoundGrid plugins for low-latency monitoring, giving you complex monitor mixing options while recording with your DAW. eMotion ST is a high-quality mixer with 8 multi-purpose inputs, 64 additional StudioRack input channels, 2 FX busses, 6 mix busses, and a main stereo mix. Since the mixer operates within the SoundGrid network, any DiGiGrid I/O or any available SoundGrid-compatible I/O device, whether hardware or driver-based, can provide it with inputs and outputs. The eMotion ST mixer can run hundreds of Waves and third-party SoundGrid-compatible plugins in low latency, replacing in this respect the external mixer traditionally used to create monitor mixes for studios and headphones. 8 multi-purpose mono/stereo input channels 2 stereo FX aux buss/returns and 6 stereo aux buss/returns Up to 64 mono channel feeds from StudioRack plugins 8 insert slots per channel for SoundGrid plugins Connects to multiple DiGiGrid I/Os and other SoundGrid-compatible devices and hosts Compliant with SoundGrid-compatible Waves and third-party plugins Fully integrates with StudioRack Enables use of SoundGrid plugins as standalone processors for any purpose Requires at least one DiGiGrid I/O and a SoundGrid DSP server StudioRack StudioRack is a software rack dedicated to running plugin chains. The processing of each chain can then be directed to your host computer’s CPU or to a SoundGrid DSP server, as you choose. When you process your plugin chains on the SoundGrid server, StudioRack lets you monitor your tracks in extremely low latency via the eMotion ST mixer. Compatible with most popular DAWs Plugin chains are processed on local CPU or SoundGrid DSP server Compatible with Waves and third-party plugins Enables  monitoring in super-low latency Up to 8 plugins per rack Fully automatable Plugin chain presets can be loaded on any DAW as well as on MultiRack and eMotion ST Instant access to plugin parameters within each chain Intuitive MIDI control over all plugins Avid Control Surface support DiGiGrid MGO Control Panel Clock settings: source, sample rate, type, status SMUX and Hi-Speed modes available for 96/88.2 kHz operation 56/64 channel operation modes Save and load presets of unit settings Save your settings along with your Waves and SoundGrid host application sessions
