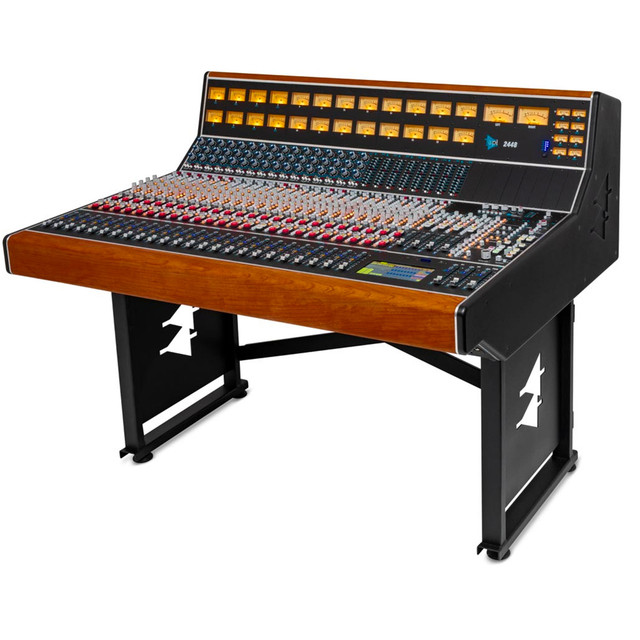

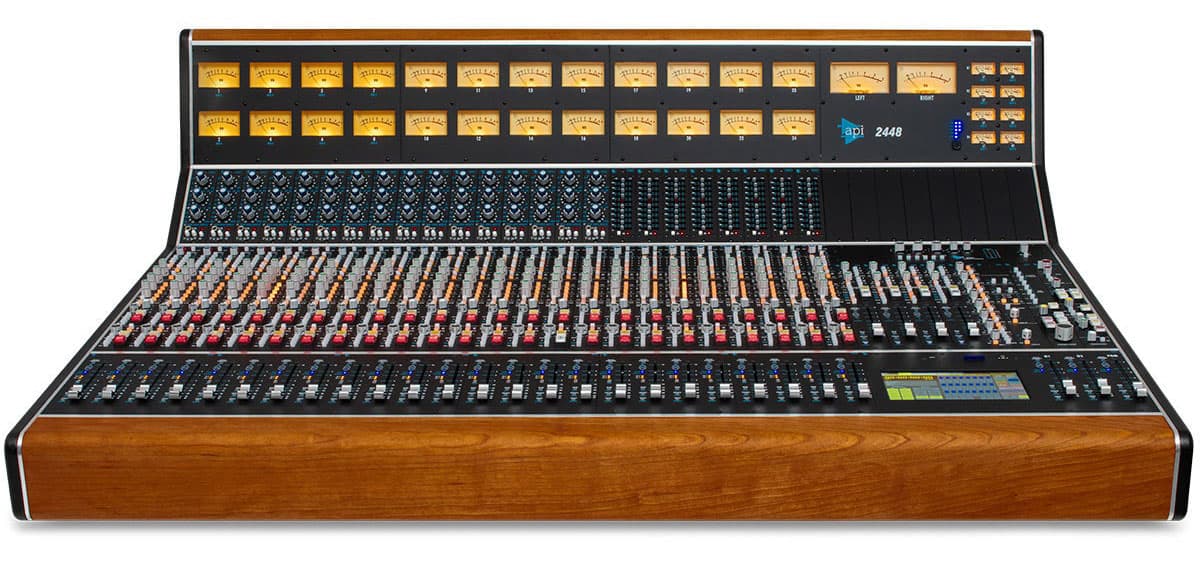

Die API 2448 ist eine Inline-Aufnahmekonsole mit zwei Signalwegen, die das Erbe der Vintage-Modelle 1604 und 1608 mit moderner Flexibilität verbindet. Mit 24 Kanälen für Mehrspuraufnahmen und bis zu 56 Kanälen für das Mischen bietet die 2448 die klanglichen Vorteile einer großformatigen Konsole in einem kompakteren und leichter zugänglichen Paket. Die 2448 wurde nach den kompromisslosen Standards von API gebaut, die auch für die Flaggschiff-Konsolen Vision, Legacy AXS und 1608-II gelten, und ist für Studios konzipiert, die sowohl Zuverlässigkeit als auch den charakteristischen API-Sound verlangen. Mit zwei Audiowegen pro Kanal, Stereo-Returns und optionaler Final Touch™-Automatisierung bietet sie einen vielseitigen Workflow für Tracking, Mixing und Hybrid-Setups. Die 2448 setzt die über 50-jährige Tradition von API fort, professionelle Studios weltweit mit innovativen analogen Konsolen der Weltklasse auszustatten, die Funktionalität, Flexibilität und Wärme vereinen.

The API 2500+ Stereo Bus Compressor allows adjustment of sonic qualities to alter the punch and tone of the stereo mix. The 19-inch, rack-mountable unit features a dual-channel design that can be configured for stereo compression or for use as two separate units via a single compression setting. Among the many qualities which make the 2500+'s unique is its use of API's patented THRUST® circuit for a chest-hitting, punchy bottom end. Another distinctive feature of the 2500+ is its selectable "old" or "new" compression, with the old style using the "feed back" type of compression found in the API 525, and the new style using the "feed forward" type in which the compressor side chain is fed directly from the unit input. Additionally, the output stage of the 2500+ offers an auto-makeup gain button that permits the user to vary the threshold or ratio while automatically maintaining a constant output level. Added to the 2500+ is the Mix/Blend circuit. First featured in the limited production 50th Anniversary Edition, Mix/Blend control provides either cross fader or parallel mixing of the compressed and uncompressed signal. Three different user settings are offered: OFF - compressed signal only X (Cross) - allows the MIX control to adjust between 100% uncompressed to 100% compressed - increasing one, while decreasing the other || (Parallel) - allows the MIX control to dial in compressed signal to blend into the uncompressed signal, (which remains the same). The 2500+ ensures fidelity with its fully balanced design and two front panel VU meters showing input, output and gain reduction levels. The 2500+ features API's industry exclusive five-year parts warranty and offers the user the reliability, sonic excellence and long life characteristic of all API products. Features API 2520 Op Amps Expanded variable threshold between -20dBu to +20dBu Selectable ratio, attack, and release times Patented THRUST® filter with 3 settings for frequency dependent side chain control Variable link between left and right channels Old "feed back" and new "feed forward" compression Soft, Medium, or Hard knee for easy to sharp compression Auto or manual gain make up 1/4" balanced side chain inputs Output clips at +32dBu New Mix/Blend circuit "Over Threshold" LED illuminates when input audio crosses the set threshold Stereo analog meters to show input level, output level, and gain reduction Full hard-wired relay bypass

Features API's Classic 312 Microphone Preamp in a 500 Series module Vintage Style Analog VU Meter Maximum 69dB of gain Traditional API fully discrete circuit design with 2520 Op Amp Proprietary AP2516 Input Transformer 20 dB pad switch 3:1 Output Transformer Tap Selection Switchable 48V phantom power Peak LED

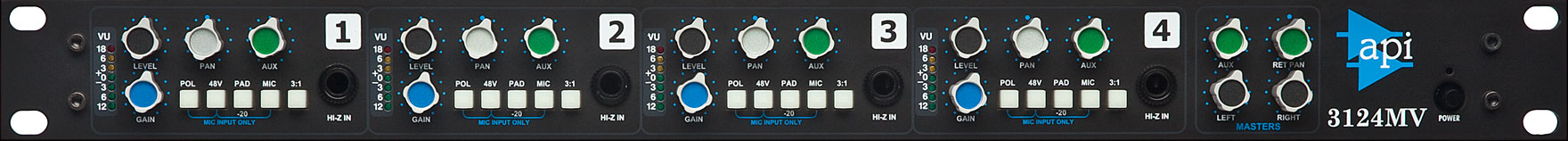

Features Classic API Circuit Design Uses API 2520 Op Amps Variable Output Level Control 3:1 Output Transformer Tap Selection Four XLR Mic Inputs Four 1/4" Un-Balanced Inputs Front Panel Polarity Switch Front Panel 20 dB Pad Switch Front Panel Mic/Line Switch Front Panel 48V Power Switch

Features Classic API Circuit Design Uses API 2520 Op Amps Variable Output Level Control 3:1 Output Transformer Tap Selection Four female XLR mic inputs Four front panel 1/4" Hi Z instrument inputs Front panel polarity switches Front panel -20dB pad switches Front panel mic/instrument switches Front panel 48V power switches   Like the API 3124+, the 3124V is a high quality, compact, 4-channel mic preamp. It is equipped with the RE-115 K mic input transformer and the proprietary output transformer found in all API mic pres and throughout the API product line. Additionally, the 3124V offers Variable Output Level Control and switchable 3:1 output transformer selection. The unit has an internal 48-volt phantom power supply, which is switchable for each channel, as well as -20dB pad switches that affect both the mic and Hi-Z instrument inputs, both located on the front panel. The 3124V also features up to 65dB of gain. Additionally, the Hi-Z front panel inputs feed directly to the op amps, which allow a low level input such as a guitar or bass to be amplified without a matching transformer or direct box. These Hi-Z inputs can take levels as high as +20dBu, making them perfect for keyboards and other high level devices. The mic preamp outputs are on rear panel male XLR connectors.

Kundenretoure / OVP Beschädigt     Features Classic API Circuit Design Uses API 2520 Op Amps Variable Output Level Control 3:1 Output Transformer Tap Selection Four female XLR mic inputs Four front panel 1/4" Hi Z instrument inputs Front panel polarity switches Front panel -20dB pad switches Front panel mic/instrument switches Front panel 48V power switches   Like the API 3124+, the 3124V is a high quality, compact, 4-channel mic preamp. It is equipped with the RE-115 K mic input transformer and the proprietary output transformer found in all API mic pres and throughout the API product line. Additionally, the 3124V offers Variable Output Level Control and switchable 3:1 output transformer selection. The unit has an internal 48-volt phantom power supply, which is switchable for each channel, as well as -20dB pad switches that affect both the mic and Hi-Z instrument inputs, both located on the front panel. The 3124V also features up to 65dB of gain. Additionally, the Hi-Z front panel inputs feed directly to the op amps, which allow a low level input such as a guitar or bass to be amplified without a matching transformer or direct box. These Hi-Z inputs can take levels as high as +20dBu, making them perfect for keyboards and other high level devices. The mic preamp outputs are on rear panel male XLR connectors.

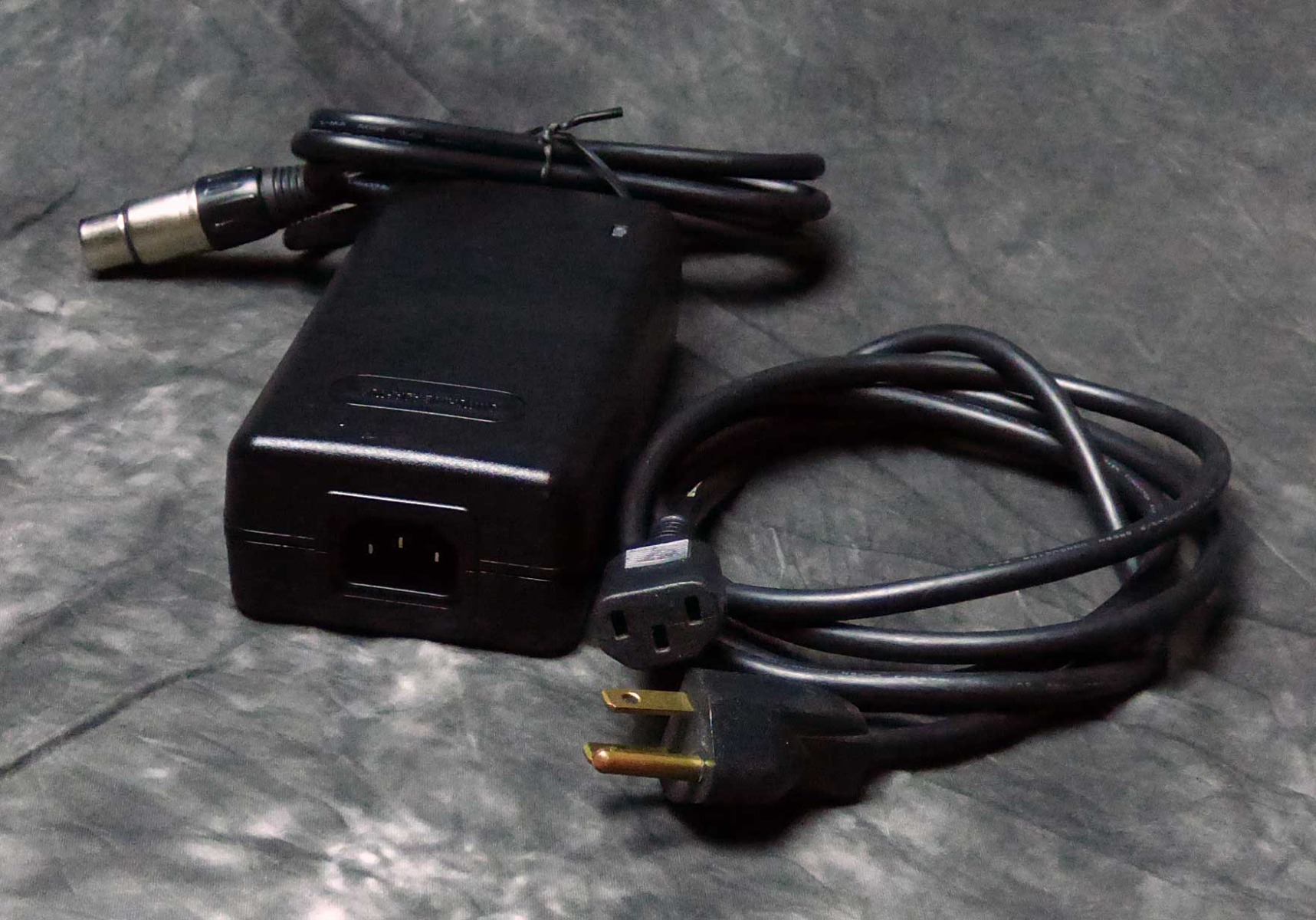

10 slot Rack with Power SupplyThe API Model 500VPR is powered externally by a tri-polar power supply and is designed to accept API standard format 5.25" X 1.5" modules. The 500VPR is internally wired for PIN 2 hot, and comes with the API L200PS. The input/output jacks are both XLRs. The 500VPR can hold up to ten API modules. API makes several modules to fit this rack, including the 550A, 550b, 560, 525, and 512c. Like all API products, the 500VPR rack enjoys API's standard 5 year warranty.Specifications:Size:     19" X 5.5" X 7.5" DeepSize (Boxed for Shipping):     22" X 10.5" X 16"Actual Weight:     7.62 lbs.Shipping Weight:     10.86 lbs.

API 505 DI Direct Input Like the console-based API 205L, the 505-DI is specifically designed to accept a guitar, bass or keyboard direct input while minimizing any loading effect on Hi-Z instrument pickups. Additionally, the 505-DI's Gain Control is used to normalize an instrument's input level, up to a +4 dBu output level. API's unique TONE control reduces potential low end "mud" in the signal, while turning on the BRIGHT switch adds additional clarity if desired. The various combinations of TONE and BRIGHT controls can eliminate the need for any EQ on the instrument while recording, keeping the signal path short and pure. This minimal signal path eliminates the need to use a standard direct box, which many times still requires a mic input, equalizer, and a fader to get the signal to a recordable level. The 505-DI is capable of boosting any instrument to a hefty line level without additional amplifiers. Use of the 100K / 400K LOAD switch allows the tone of the pickup to be altered slightly, alternately brightening or darkening the high frequency content. When inserting an instrument with an internal preamp or a line level instrument such as a sampler or a keyboard, the 505-DI offers a 20 dB PAD switch to drop the level without loading, thereby retaining the integrity of the incoming signal. Features Wide Range Gain Control with 55dB of gain Front Panel Hi-Z Input Front Panel Thru routing TONE Control helps customize your sound BRIGHT Switch boosts clarity and presence 10 segment LED VU meter for monitoring output level Peak Output LED Indicator 20 dB pad switch, applies to mic/line/instrument 100K / 400K Switchable Load Traditional API fully discrete circuit design Uses the famous API 2520 and 2510 Op-Amps

The API 512c is a mic / line / instrument preamp designed to provide a low noise, unusually good sounding front end for all types of audio systems. Sonically, it offers the distinct API sound at an extremely affordable price. Offering low noise (-129 EIN) and 65 dB of gain, the 512c includes phantom power, and switchable polarity, -20 dB pad and Mic/Line or Instrument selector. Front panel XLR and 1/4 inch connectors combined with rear panel mic access allows for additional flexibility when installed into an API lunchbox®, API's 10 position 500V vertical rack, or an API console.The API 512c remains faithful to the circuit designs of API's founder, Saul Walker. Fully featured and still hand assembled, the 512c carefully preserves the original sound character that made it so much a part of the early days of recording. Offering high headroom and a wide variety of inputs and input access points, it is equally at home in the commercial recording studio as it is in the home project studio.The 512c Mic/Line Preamp makes use of the 2510 and 2520 op-amps and therefore exhibits the reliability, long life, and uniformity which are characteristic of all API products. Features:Mic Preamp with 65 dB of gainFront and Back Panel Mic Input AccessLine/Instrument Preamp with 50 dB of gainFront and Back Panel Line/Instrument InputLED VU meter for monitoring output level20 dB pad switch, applies to mic/line/instrument48v Phantom switchable powerTraditional API fully discrete circuit designUses the famous API 2520 Op-AmpTechnical Specifications:Rear Connector:     Output on edge connector, MIC Input on edge connector, can be defeatedFront Connectors:     XLR MIC Input, HI-Z 1/4" Unbal InputGain Range:     MIC, 10 dB min, 65 dB max. Unbal HI-Z Input, 14 dB min, 50 dB maxMaximum Input Levels:     MIC, +8 dBu, Unbal HI-Z Input, +36 dBuInput Impedance:     MIC Input, 1500 Ohms (150 Ohm mic), HI-Z Unbal Input, 20 K OhmsOutput Impedance:     Less than 75 Ohms, Transformer BalancedClipping Level:     +30 dBuFrequency Response:     +0, -.3, 30 to 20 kHzNoise:     Equivalent Input Noise: -129, Mic In. -125, Un-Balanced In.Actual Metered Noise: Mic, -95 dBu, Un-Bal., -90 dBuDistortion:     Less than .05% @ +4 Out, Less than .1% @ +28 OutSize:     1.50" X 5.25" X 6" DeepShipping Weight/Actual Weight:     2 lbs./1 lb. 7 oz.Power Consumption:     ±12/18 Volts/DC, @40 ma.

Features Mic Preamp with 65 dB of gain Variable Output Level Control 3:1 Output Transformer Tap Selection Front and Back Panel Mic Input Access Line/Instrument Preamp with 45 dB of gain Front Panel Combo-style XLR + 1/4 inch Line/Instrument Input LED VU meter for Gain Level indication 20 dB pad switch, applies to mic/line/instrument 48v Phantom switchable power Traditional API fully discrete circuit design with 2520 Op Amp Features API's unique Five Year Warranty The API 512v is a mic / line / instrument preamp, world famous for its ability to provide a low noise (-129 EIN) and unusually good sounding front end for all types of audio applications. Sonically, it delivers the instantly recognizable API sound at an affordable price, and in the scalable API 500 Series format. Offering an impressive 65 dB of gain, the 512v includes front panel Variable Output control, switchable 3:1 output transformer selection, phantom power, switchable polarity, -20 dB pad, and Mic or Instrument/Line selector. The front panel Combo-style XLR and 1/4 inch connector combined with rear panel mic access allows for additional flexibility when installed into an API lunchbox®, API's 10 position 500V vertical rack, or into an API console. The API 512v remains faithful to the circuit designs of API's founder Saul Walker. Artfully combining those circuits with API's proprietary transformers and the incomparable 2520 op-amp, the 512v is a highly musical and rich-sounding analog mic pre, equally at home in commercial recording spaces as it is in smaller home studios. Fully featured and still hand assembled, the 512v exhibits the reliability, long life, and uniformity which are characteristic of all API products.

Originally released in the 70's, the API 525 is a "feedback" type compressor. An input (threshold) control and output (make-up gain) control are provided, along with an additional "Ceiling" fine-tune function which can increase gain reduction (lower threshold) while simultaneously raising output level to match, so the user can alter dynamics "on the fly" without level changes. A compression/limit switch sets ratio at either 2:1 or 20:1. Attack time is as fast as 15u/s. Four auto release modes are offered via two switches, 0.1s, 0.5s, 1.5s, & 2.0s. A De-Ess function inserts an inverse vocal energy curve filter in the detector for effective sibilance/pop reduction. The 525 design has been taken from the original blue prints and spec control drawings from the API archives.Release times vary with frequency, with high frequency / full bandwidth content released faster than lower frequencies for natural envelope tracking. Attack time is fixed, chosen to catch the fastest peaks, without "pumping". Equally useful as a tracking, mixdown or program compressor/limiter, the 525 utilizes "vintage" dynamics control and an easy to use multi-function control set. The 525 has a hard-wire bypass switch, a balanced input, and a pinout that is the same as all the other 500 series modules. Two or more 525s can be linked for multi-channel compression.The API 525 Compressor makes use of the 2510 and 2520 op-amps and exhibits the reliability, long life, and uniformity which are characteristic of all API products. Features:Exact reissue of API's original 525 from the early 70'sPeak detecting "feedback" compressor/limiterVariable Threshold and Output levelsUnique "Ceiling" control combines key functionsAnalog VU meter for monitoring gain reduction4 Switchable release modesDe-Ess functionTraditional API fully discrete circuit designActive Balanced Input/OutputHardwire bypass Technical Specifications:Input Impedance:     > 30 K Ohms, BalancedOutput Impedance:     100 Ohms, Transformer coupled, BalancedOperating Levels:     -15 dBu to +20 dBuMaximum Gain Reduction:     25 dBNoise:     98 dB below +10 dBu output, at 10 dB of CompressionHarmonic Distortion:     0.5% Max, 30 to 20 kHzAttack Time:     15 micro secondsRelease Times:     .1, .5, 2.0, 2.5 secondsDe-essing:     Inversion of the Voice Energy CurveSlopes:     Compression, 2:1, Limit, 20:1Metering:     Compression or Limiting-Illuminated Analog dB meter, shows Gain ReductionFrequency Response:     ±.5 dB, 30 to 20 kHzPower Requirements:     ±12/18 Volts/DC, @80 ma.

Seit den frühen 1970er Jahren und der Neuauflage vor über 20 Jahren hat sich der 525 Discrete Compressor als einer der am meisten geschätzten Vintage-Style-Kompressoren in der Branche etabliert. Aufbauend auf der leistungsstarken Kernschaltung des ursprünglichen 525, behält der neue 525A den diskreten Audio-Signalweg bei und erweitert die Funktionalität für noch mehr Anwendungen im modernen Studio. Er kombiniert gekonnt APIs firmeneigene Transformatoren sowie die 2510- und 2520-Operationsverstärker und bewahrt die klanglichen Eigenschaften des Originals, während er die Zuverlässigkeit, lange Lebensdauer und Gleichmäßigkeit zeigt, die charakteristisch für alle API-Produkte sind.

Features Feed-forward or feed-back compression Hard or soft knee compression Patented THRUST® switch for frequency-dependent sidechain control Continuously variable, 31 position detented THRESHOLD control Continuously variable, 31 position detented RATIO control Continuously variable, 31 position detented ATTACK and RELEASE controls Continuously variable, 31 position detented OUT (output) level control 10-segment gain reduction/VU meter (GR/Output) Overload LED IN switch with soft and hard relay bypass Audio circuit uses the 2510 and 2520 discrete op-amps   The API 527A Compressor/Limiter takes its place alongside the family of API VCA based compressors, including the 225L compressor and 529, 2500, and 2500+ stereo bus compressors. Anyone familiar with these units will immediately be at home with the 527A. Features common to the line include "feed forward" (NEW) and "feed-back" (OLD) gain reduction methods selectable on the front panel, provide a choice of "that old way" or "the new way" of compression, for the highest level of flexibility in signal gain control. The "old way" or feed-back method is what most of the classic compressors used for the gain control circuit. The "new way" gain reduction is more typical of the newer VCA type compressors that rely on RMS detectors for the gain control voltage. There is a "SOFT"/"HARD" knee switch for an "over-easy" type compression resulting in a very natural, uncompressed sound or a typical sharp knee type that lends itself to a much more severe limiting effect. The patented THRUST® function can be switched in and out via the front panel as well, applying a filter before the RMS detector circuit that preserves that punchy bottom end. Two or more 527A Compressor/Limiters can be linked together via a DC link allowing multiple units to be combined for stereo and multichannel applications. The output level remains fairly constant regardless of the threshold or ratio control, much like the "more/less" Ceiling control on the API 525 Compressor. This allows for live adjustments without any noticeable gain changes in the program level. The 527A Compressor/Limiter makes use of the 2510 and 2520 discrete op-amps and exhibits the reliability, long life, and signature sound which are characteristic of API products.

Features Continuously variable detented Gain, Threshold, Attack, Ratio and Release controls 10 segment LED meters show Gain Reduction and selectable Input or Output Level Over Threshold LED Patented THRUST® Switch for frequency dependent side chain control 3 selectable compressor curve Knee settings Selectable New or Old switch for feed-forward or feed-back operation Selectable variable or auto compressor make-up gain Three way In/Out including full hard relay bypass Audio circuit uses 2520 and 2510 Discrete Op Amps with transformer output The new 529 Stereo Compressor combines the unmistakable sound of API's compression technology with the convenience and popularity of the API 500 Series format. Carefully designed to deliver a wide range of compression options, the 529 delivers warmth, clarity and punch, whether used for subtle adjustments or heavy compression effects. Based on the unprecedented success of the 2500, the 529 takes many of the features and controls from API's famous stereo compressor and puts them into the first dual slot 500 series module from API. This stereo compressor features API's patented THRUST® circuitry for a punchy low end, along with an Old/New switch that lets you choose between classic and modern compression characteristics: Old for vintage-style feedback compression and New for today's more common feed-forward compression. The Auto-makeup Gain button lets you adjust ratio and threshold controls without affecting the output level. Using API's discrete op-amps and transformer technology, the 529 delivers the legendary analog sound of API. The 529 is backed by API's unique 5 year warranty.

535-LA Line AmplifierFeatures: Continuously variable detented input level trim Polarity button 20dB Input Pad Calibrated Level mode Output Ratio selector Clip LED indicator Continuously variable Output Gain Traditional API fully discrete circuit design Audio circuit uses the famous 2510 and 2520 Op-Amps Traditional API fully discrete circuit design Modeled after API's highly prized console-based 325 booster cards, the 535 can both amplify and attenuate incoming and outgoing signals for ultimate flexibility—all while providing API's trademark warmth and tone.The 535 excels at adding warmth to a variety of signals. Recommended uses include: Warm up digital signals of all kinds Add Tone to Keyboard rigs Add warmth to any mix Audio playback devices, mic preamps, or audio processing devices that do not have their own level control will also benefit from the added tone and control of the 535-LA.The 535-LA also includes a balanced input, a polarity switch, a 20dB pad for incoming signal attenuation and a three position toggle switch, which allows for different output gain levels from the transformer. This is designed to drive long balanced lines with low distortion just as the 325 booster card does. Output gain range is from 6dB to 45dB. The 535 utilizes the discrete 2510 and 2520 Op-Amps along with API's proprietary transformers to create the unique, warm and reliable sound that API users expect. Like all API products, the 535-LA features API's unique 5 year warranty.

The beginnings of the 5500 circuit can be traced back to the original 550 equalizer designed by Saul Walker, the founder of Automated Processes Inc. The 550 was designed as a console equalizer, which uses an unbalanced input due to the architecture of the recording console. Because the ergonomics of a console dictate that the controls take up little space, sometimes the number of included functions can be limited. The 5500 is specifically designed to address these limitations; it has a balanced input, a true straight-wire bypass, an integrated power supply with noiseless muting and a range control that expands its versatility to mastering applications.The 5500's input XLR is connected to an active balanced circuit. The unit's output XLR is driven from a transformer coupled output and can drive any load from 600 ohms or more to full output capability. There is no change from input to output in the unit's polarity, so it is suitable in studios using either pin 2 or pin 3 as the "hot" connection. Additionally, the 5500 has a 1/4 inch input connector that interrupts any present signal on the input XLR. It is balanced and can be driven from either balanced or unbalanced sources. A positive signal on the tip will deliver a positive signal on pin 2 of the output XLR. Using the 1/4 inch input does not bypass any internal circuitry and does not change the gain or operating levels.Features:    Classic 550b Equalizer design    Two range switches to individually alter gain steps    Useable as a 550b, 550D or 550M    Peak/shelf switch on Hi and Lo bands    True hardwire bypass    Balanced In and Out on XLR    Unbalanced input on 1/4"    EQ In/Out switchTechnical Specifications:    Power Consumption, Quiescent:     .66 Watts    Size:     19" X 1.75" (1U) X 11.25" Deep    Size (Boxed for Shipping):     23.25" X 6.5" X 16"    Actual Weight:     9.68 lbs.    Shipping Weight:     13.51 lbs.

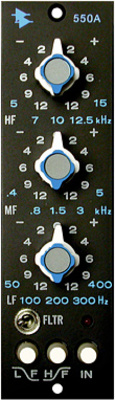

API 550aDiscrete 3 Band EQFew equalizers enjoy the respect and admiration of the coveted API 550A. Designed by the now-legendary Saul Walker in the late '60s, the discrete 550A was first used as a modular OEM equalizer. As the industry rapidly embraced the sonic quality of the 550A, it quickly found its way into many custom console designs by Frank DeMedio and other leading engineers. Many of these consoles are still in use today.The 550A provides reciprocal equalization at 21 points in 7 steps of boost to a maximum of 12dB of gain at each point. The fifteen equalization points are divided into three overlapping ranges. The high and low frequency ranges are individually selectable as either peaking or shelving, and a band-pass filter may be inserted independently of all other selected equalization settings. Frequency ranges and boost/cut are selected by three dual-concentric switches, and a pushbutton "in" switch allows the EQ to be silently introduced to the signal path. A small toggle switch is used to insert the band-pass filter into the 550A.The combination of Walker's incomparable 2520 op amp and his "Proportional Q" circuitry gives the 550A user an uncomplicated way to generate acoustically superior equalization. Features:    3 bands of classic API equalization    Each band offers 7 API selected frequency centers    Reciprocal and repeatable filtering    Maximum 12 dB of boost/cut per band    EQ Band 1 and 3 offer shelf/peak switching    "Proportional Q" narrows filter Q at extremes    Traditional API fully discrete circuit design    High headroom +30 dB clip levelTechnical Specifications:    Input Impedance:     66 kΩ high level, 17 kΩ low level   Output Impedance:     Less than 85Ω (transformer isolated)   Nominal Operating Level:     –15 dBm to +12 dBm   Insertion Loss:     None (bridging)   Frequency Response, Unequalized:     ±0.5 dB 30 Hz to 20 kHz   Noise:     Unequalized, output noise of –90 dBm, high level strapping and, –98 dBm, low level strapping, 20 Hz to 20 kHz unweighted   Distortion:     .05% THD max, 30 Hz to 20 kHz @ +4 dBm, .07% THD max, 30 Hz to 20 kHz @ +18 dBm   Clipping Level (3% THD):     +30 dBm   Power Requirement:     ±15 volts to ±18 volts @ 70 ma                        Toggle Switch:50 Hz to 15 kHz band-pass filter In or out                        Push Button: LF range Peak or Shelf                         Push Button: HF range Peak or Shelf                        Push Button: Equalization In or Out                        Tally light when In   Connector:     30 pin PC connector supplied   Size:     1.5" X 5.25" X 7.75" Deep   Size (Boxed for Shipping):     4.5" X 6.25" X 10.25"   Actual Weight:     2 lbs.   Shipping Weight:     2.53 lbs.

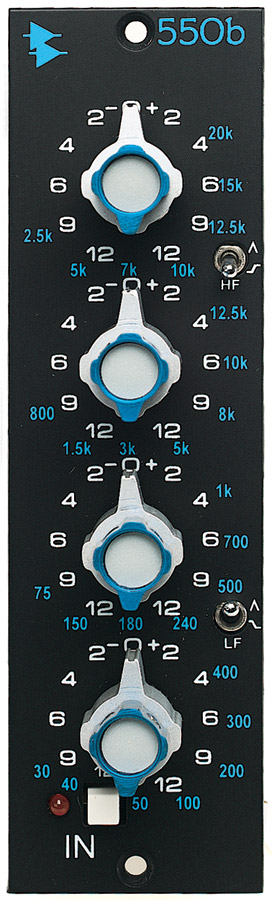

Based on API's original 550 from the late '60s, the API 550b is a continuation of the EQ that played a major role in the history of music recording, but with an additional filter band and several new frequencies. Incorporating API's exclusive circuitry and proprietary components (such as the legendary API 2520 Op Amp), the 550b artfully blends the past with the present. So many hit records still depend on the unique 550 sound that engineers around the world find it to be an invaluable tool. In fact, the 550b design has been taken from the original blue prints and spec control drawings from the API archives. It is unlike any other EQ you will ever use.Rather than offer a huge assortment of complex features, the API 550b provides exactly the right number of controls. Its four EQ bands are overlapped significantly to aid in dual roles as problem solver and sweetening device with each band offering seven switchable filter frequencies that span four-to-five octaves. These frequencies, purposely selected to be musical rather than numeric, were selected by an experienced "who's who" list of the industry's most proficient engineers.Making use of API's "Proportional Q," an innovation designed by Saul Walker in the '60s, the 550b intuitively widens the filter bandwidth at minimal settings and narrows it at higher settings without the need for additional bandwidth controls. This unique feature minimizes the "phase-shift" sound found in many equalizers. In addition, the reciprocal nature of the 550b enables the user to "undo" what has been done previously with exact precision.The benefits of the API 550b are most obvious to those who work with EQ on a continuous basis. If major tonal restructuring is required, the extraordinary headroom made possible with API's 2520 Op Amp offers the predictable and warm analog performance, even under duress. With a surprisingly wide range of tonal variations, the 500b is an invaluable and professional audio tool with great flexibility and excellent sonic ability. Features:Four bands of our famous sounding equalizationEach band offers seven API selected frequency centersReciprocal and repeatable filtering12 dB of boost/cut per bandEQ band 1 and 4 offer shelf/peak switching"Proportional Q" narrows filter Q at extremesTraditional API fully discrete circuit designHigh headroom +30 dB clip levelRe-issue of 1967 API 550 EQ with an extra bandTechnical Specifications:Number of Bands:     FourFilter Type:     "Low" and "High" bands are Peak/Shelf switchable. Low-Mid and Mid-High are peaking typeFilter Frequency Centers:     Low: 30, 40, 50, 100, 200, 300, 400HzLow-Mid: 75, 150, 180, 240, 500, 700, 1KhzMid-High: 800, 1.5K, 3K, 5K, 8K, 10K, 12.5KHigh: 2.5K, 5K, 7K, 10K, 12.5K, 15K, 20KFilter Boost/Cut:     ±12 dBFilter Slope:     12 dB per OctaveInput Impedance:     18.5 K +4 in, 7.5 K -2 inOutput Impedance:     Less than 75 OhmsNominal Levels:     -15 to +15 dBuClipping Level:     +30 dBu @ ±16 VFrequency Response:     +0, -.3, 30 to 20 kHzNoise:     Actual, unw noise, <-98 dBu, 20-20 kHzDistortion:     .07% max, @ +18 dBu OutputConnectors:     15 position .156sp edge connectorSize:     1.5" X 5.25" X 6" DeepShipping Weight/Actual Weight:     3 lbs./2.5 lbsPower Consumption:     ±12/18 Volts/DC,@ 40 ma.

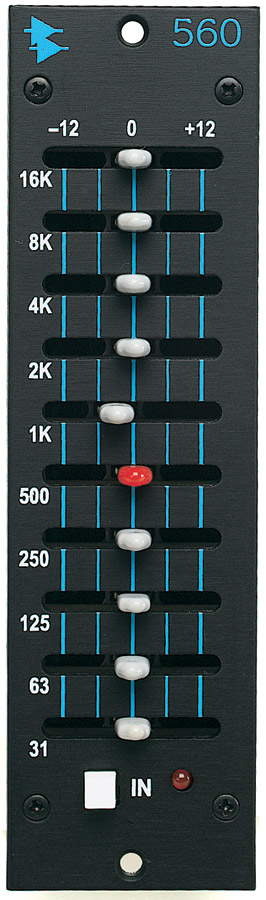

Originally conceived for use in API consoles of the '60s and '70s, the 560 is a unique device designed to accomplish tasks that no other EQ can. Extremely fast to set and reset using accurate zero detents, the curve shaping potential of the 560 remains unmatched. With a wide range of 500 mounting options, from racks to consoles, the 560 proves an invaluable asset to all critical performance applications. Based on API's original 560 EQ, the current production 560 has improved resolution in the ±4 dB area and possesses our exclusive circuitry and proprietary components, including the API 2520 Op Amp.The extraordinary headroom made possible with the 2520 offers consistent analog performance even when using radical EQ curves. Of course, the 2520's ability to drive low impedance loads is key when it is paired with API's custom output transformers. The results are quite audible with better low frequency reproduction and tighter imaging, which gives you that legendary API "punch in your gut" sound.The 10 precision EQ bands make the 560 ideal for signal sweetening and room tuning. A great companion to a parametric EQ, the 560 utilizes API's unique "Proportional Q" design introduced during the '60s. This design intuitively widens the filter bandwidth at lower boost/cut levels and narrows it at higher settings. Additionally, boost and cut characteristics are identical, allowing previous actions to be undone if desired.Reliable, durable and uniform, the API 560 EQ delivers that "one-of-a-kind API sound" with precision easy set filtering and high headroom in a compact package. If you want the sound of classic American music in an easy-to-set graphic EQ package, you want the API 560. Features:10 bands of API proprietary equalizationFamiliar graphics operation on one octave centers12 dB of boost/cut per band"Proportional Q" narrows filter Q at extremesAdditional resolution within the ±4 regionCenter detent for reliable resetSilent bypass buttonBased on the original 1969 API 560 EQTechnical Specifications:Number of Bands:     10Filter Type:     Proportional Q, Octave entered, Continuously Adjustable LevelFilter Frequency Centers:     31, 63, 125, 250, 500, 1kHz, 2kHz, 4kHz, 8kHz, 16kHzFilter Boost/Cut:     +/- 12 dBFilter Slope:     12 dB per Octave at full boost or cutInput Impedance:     20k Resistive, BalancedOutput Impedance:     Less than 85 OhmsNominal Levels:     -15 to +15 dBuClipping Level:     Better than +28 dBuFrequency Response:     +0, -.25, 30 Hz to 20kHzNoise:     -95 dBu EQ Out, -90 dBu EQ In, Unweighted 20 to 20kHzDistortion:     .05% max, @ +20 dBu OutputConnectors:     15 position .156 sp edge connectorSize:     1.50" X 5.25" X 6" DeepShipping/Actual Weight:     2 Lbs/1.5 LbsPower Requirements:     ± 12/18 Volts/DC @ 60 ma.Rack Frame and Power Supply Options:     Fits 500V (10 slot rack, requires API 200PS Power Supply, 500H (2 slot rack, internal power supply), 500b "lunchbox®" (4 slot portable rack with internal power supply), API Legacy Consoles and vintage API Classic Consoles.

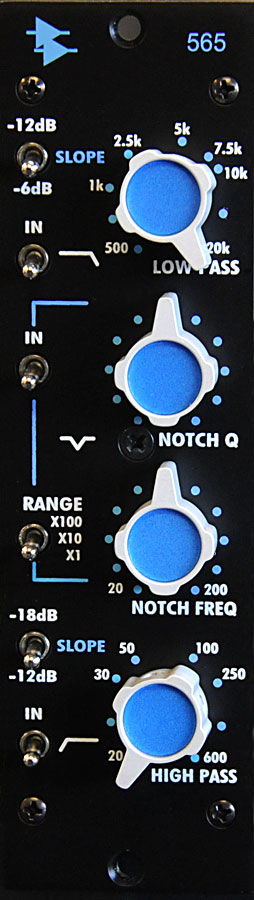

Features sweepable low-pass filter (500Hz to 20kHz, -6 or -12dB slope) sweepable high-pass filter (20Hz to 400Hz, -12 or -18dB slope) variable notch filter (fully sweepable between 20Hz and 20kHz) The 565 Filter Bank module has circuits that are true to the musical filters of the famed 215 module found in large format API consoles.

Aufbauend auf APIs reichhaltigem Erbe an extrem hochwertigen Aufnahmekonsolen stellen wir den ASM164 vor, einen 16-Kanal-Analogmixer, der API-Summing-Leistung in einem praktischen 19-Zoll-Rack-Format bietet. Mit einem Design, das auf dem Summing-Bereich der THE BOX® Console basiert, ist der ASM164 für professionelle Projektstudios, Heimstudios und Produktionsanlagen aller Art konzipiert. Der ASM164 wurde entwickelt, um den legendären API-Sound in einem effizienten, kostengünstigen Paket bereitzustellen.

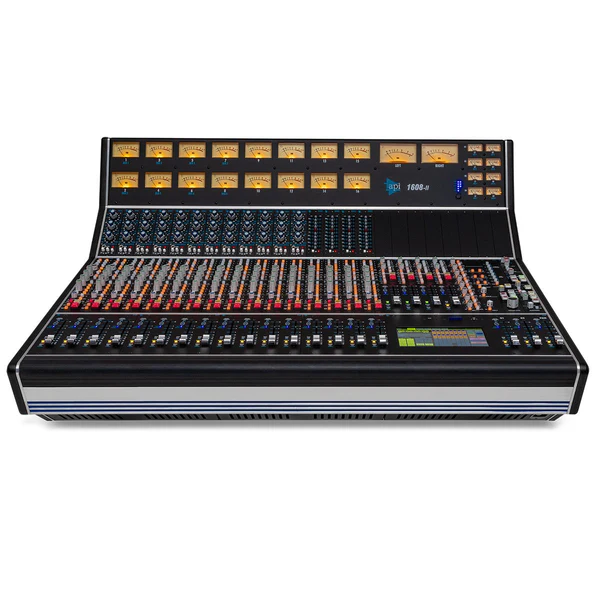

Aufbauend auf der langen Tradition hochwertiger Aufnahmekonsolen von API bietet das Modell 1608-II den legendären Klangcharakter des Vintage-Modells API 1604 und des Originals 1608, ergänzt durch moderne Upgrades für die Produzenten, Toningenieure und Musiker von heute. Das 1608-II bietet wichtige Verbesserungen, insbesondere vier automatisierbare Stereo-Returns, die die acht Mono-Echo-Returns des klassischen 1608 ersetzen. Mit 16 Eingangskanälen, integrierten Mikrofonvorverstärkern, EQs und Unterstützung für Erweiterungsmodule der 500er-Serie bietet das 1608-II eine unübertroffene Vielseitigkeit in einer Konsole mittleren Formats. Der 1608-II wurde nach denselben hohen Standards wie die Flaggschiff-Konsolen Vision, Legacy AXS und 2448 von API handgefertigt und ist ein Kraftpaket an Zuverlässigkeit, Flexibilität und klanglicher Exzellenz. Ob beim Tracking, Mischen oder in hybriden Workflows – diese Konsole bringt den unverwechselbaren API-Sound und -Workflow in das moderne Studio.

Das API 2500+ The Ultimate Audio Processing Tool ist ein Weltklasse-Tool, das entwickelt wurde, um Ihren Mix mit dem unverwechselbaren API-Sound zu formen, zu verfeinern und zu verbessern. Aufbauend auf der langjährigen Tradition von API im Bereich der präzisen Analogtechnik bietet das 2500+ Vielseitigkeit und Leistung sowohl für Studio- als auch für Live-Umgebungen. Das Herzstück des 2500+ ist die patentierte THRUST®-Schaltung von API, die den tiefen Frequenzen unvergleichliche Kraft und Klarheit verleiht, ohne den Mix zu trüben. Mit wählbaren Kompressionsmodi für Feedback (klassischer API 525-Stil) und Feedforward (moderne Präzision) haben Toningenieure die Flexibilität, zwischen Vintage-Wärme und zeitgemäßer Kontrolle zu wählen. Dank seiner großen Auswahl an Ratio-, Attack- und Release-Optionen eignet er sich gleichermaßen für filigranes akustisches Material, kraftvolle Drums oder volle Stereomischungen. Die variable Stereo-Link-Steuerung des Geräts ermöglicht eine flexible Abbildung und Dynamik über beide Kanäle hinweg, während die automatische Make-up-Gain-Funktion unabhängig von Threshold-Einstellungen für konsistente Ausgangspegel sorgt. Der 2500+ ist robust gebaut und mit den legendären 2520-Operationsverstärkern von API ausgestattet. Er ist ein zuverlässiges, musikalisches und unverzichtbares Werkzeug für Profis, die höchste Klangqualität verlangen.

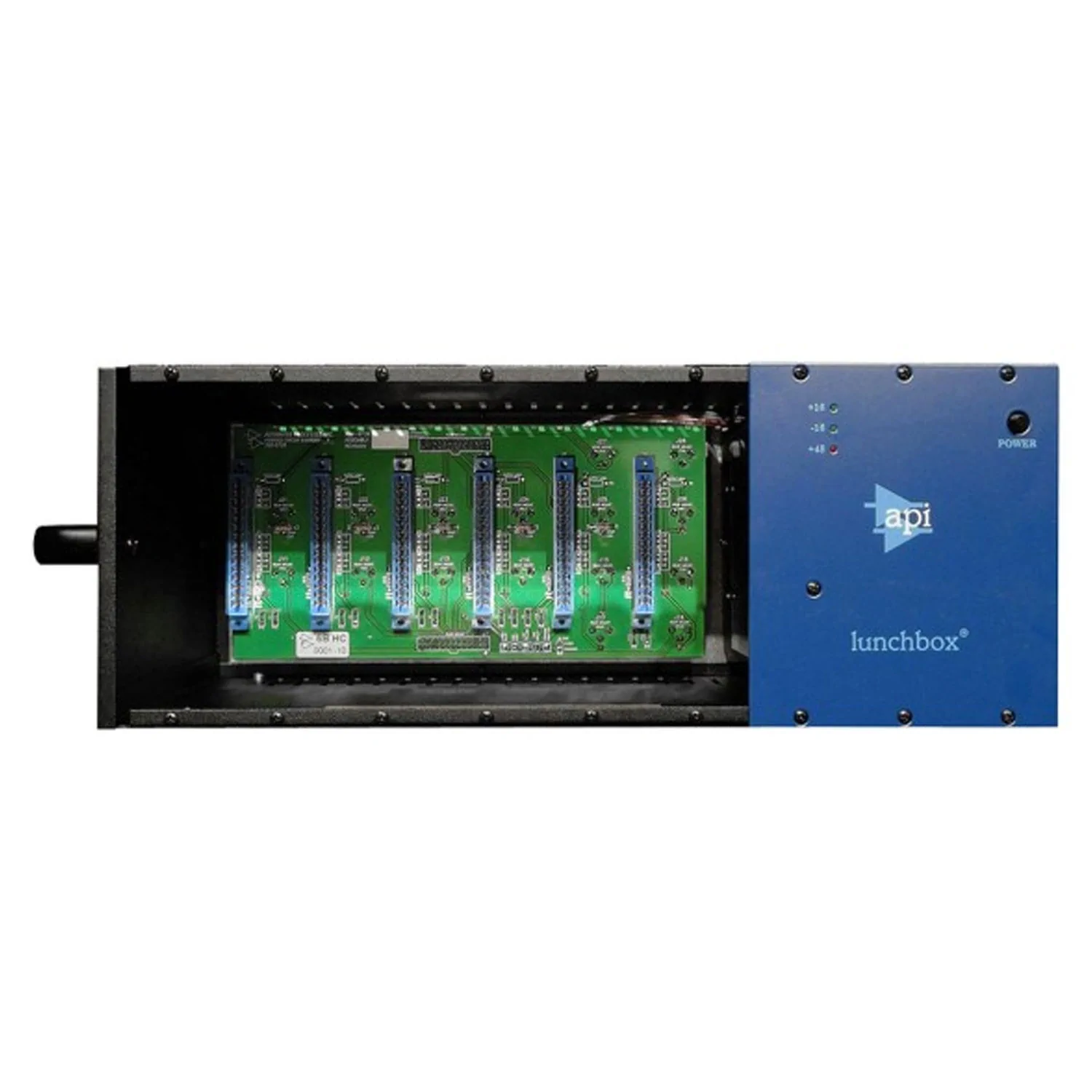

Die API 500-6B Lunchbox ist ein kompaktes, robustes und tragbares 6-Slot-Rack, das für die Aufnahme beliebiger Kombinationen von Modulen der API 500-Serie ausgelegt ist. Die Lunchbox eignet sich perfekt für Studios, Live-Tontechniker und mobile Aufnahmesysteme und bietet die legendäre Flexibilität von API in einem praktischen Format. Mit seinem integrierten Netzteil, der Phantomspeisung und den vielseitigen I/O-Optionen bietet das 500-6B Toningenieuren die Freiheit, individuelle Kanalzüge, Stereo-Aufnahmeketten oder tragbare Gesangs-/Instrumenten-Rigs mit den renommierten Modulen von API wie dem 512c Mic Preamp, den 525/527 Compressors und den 550A/550b/560 EQs zu erstellen. Ganz gleich, ob Sie im Studio aufnehmen, vor Ort mischen oder eine personalisierte Signalkette aufbauen – das API 500-6B bietet zuverlässige Leistung, professionelle Konnektivität und die bewährte Verarbeitungsqualität von API in einem äußerst tragbaren Design.
