CMC2 - Compact Monitor Controller

The Drawmer CMC2 is a compact desktop monitoring controller with three input sources and two stereo speaker outputs and a general subwoofer output. It uses the same high quality audio circuitry as the ever popular Drawmer MC2.1 & MC3.1 monitor controllers with a reduced feature set for smaller studios.

The CMC2 has 2 balanced stereo Inputs and a 3.5mm jack Aux input for Smartphones/MP3 Players, with variable level control. It supports 2 sets of monitors plus a sub-woofer, as well as headphones, with a separate amplifier and level control. A mix check section with phase reverse switch, mono summing and dim is provided for quick access to key features for monitoring.

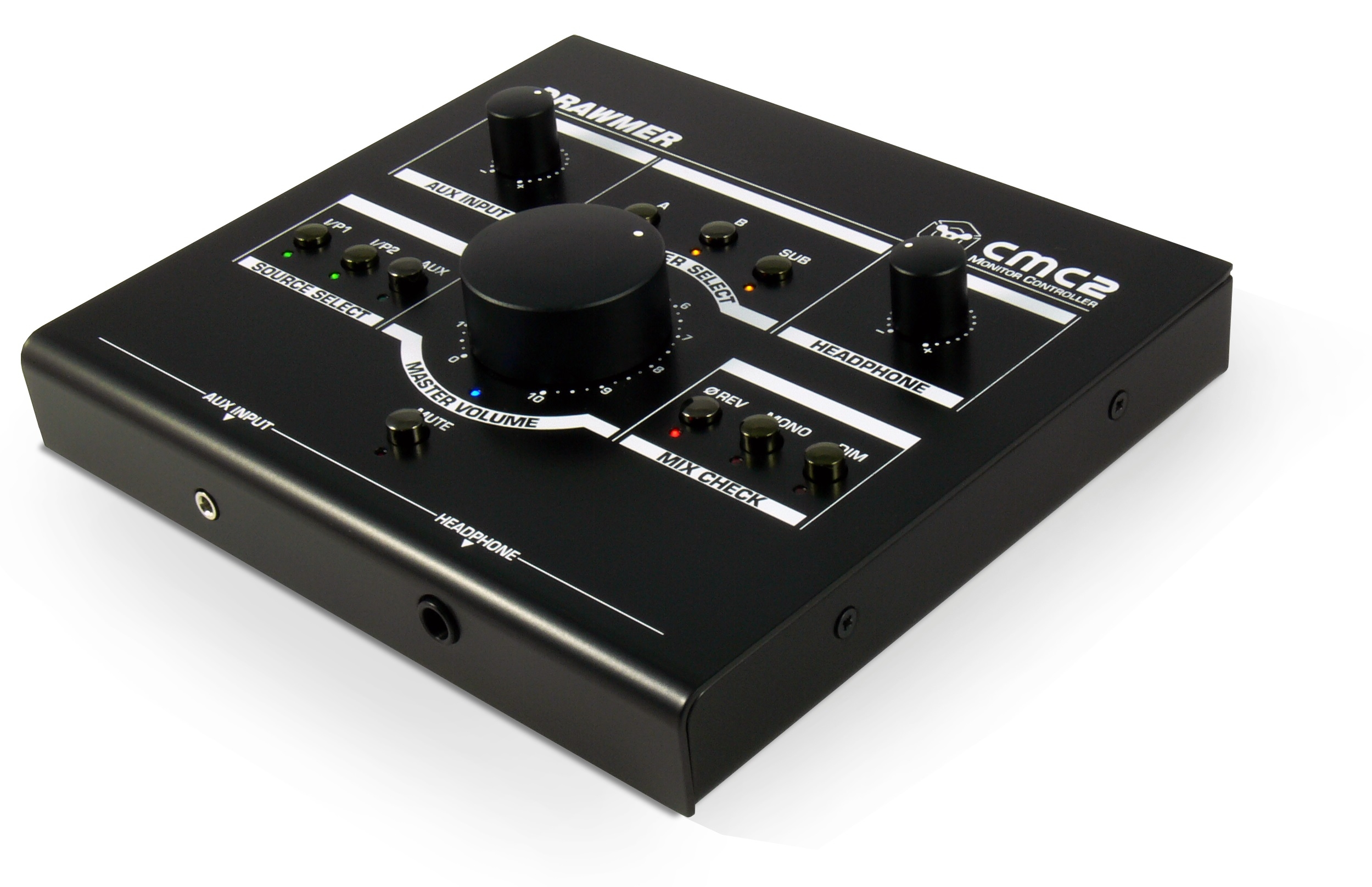

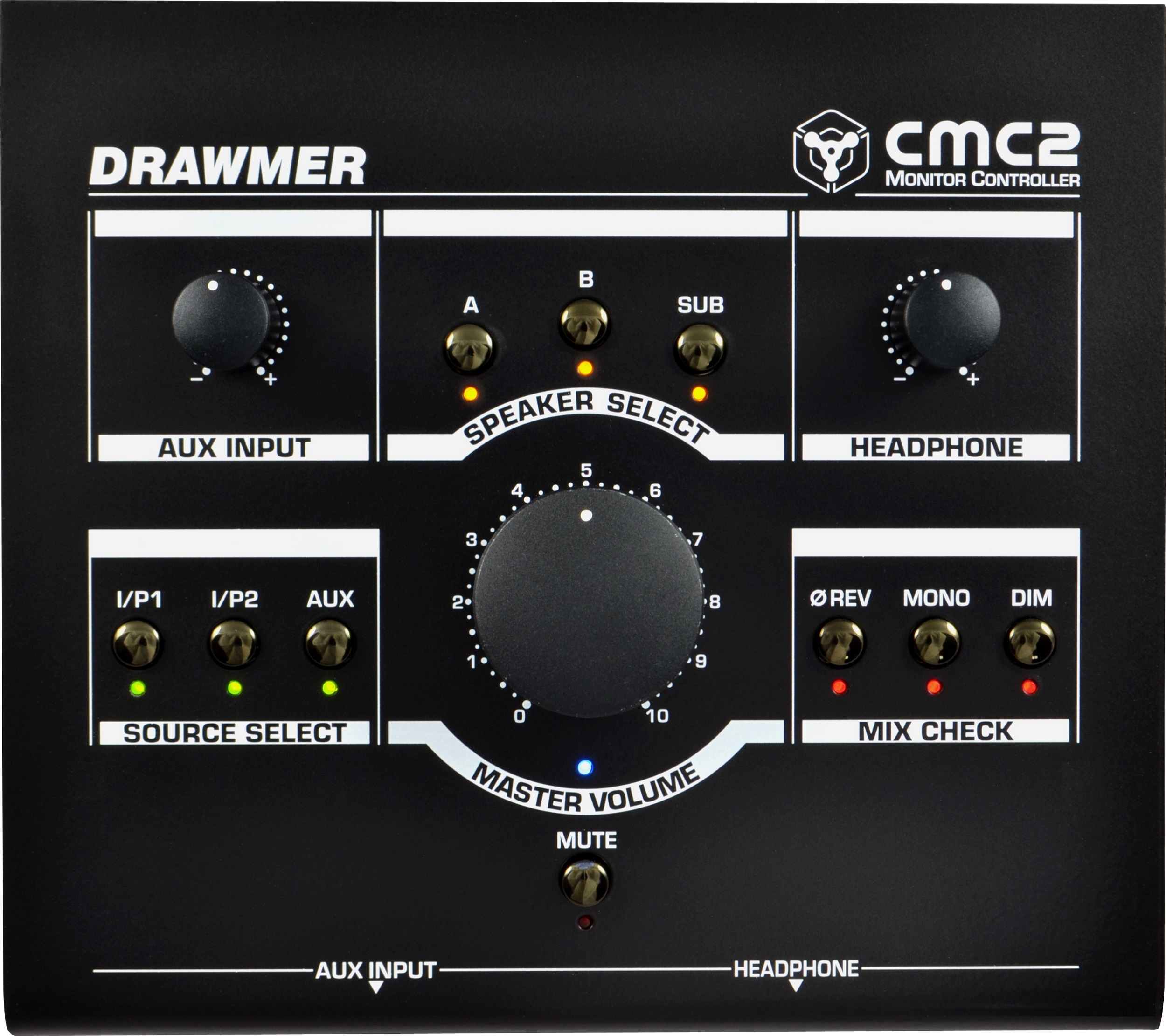

The CMC2 is built in a very smart and stylish rugged low profile desktop enclosure with an ergonomic user interface. A Kensington security slot provides protection from thieves. The active circuitry guarantees a transparent sound without any coloration and faithfully reproduces what has been recorded.

Features

  • Compact monitoring controller
  • Ultra low noise and transparent circuit design.
  • 2x stereo balanced line inputs on stereo-jack
  • 1x front panel 3.5mm AUX Input with Level Control for connecting MP3 player, smartphone or tablet etc.
  • 2x speakers plus a dedicated mono Subwoofer output, each with timed relay protection
  • 1x front panel headphone output with individual level control
  • Large volume knob incorporating a paralleled custom quad pot for excellent channel matching and smooth feel
  • Mix Checking facilities Include Dim, Phase Reverse, Mono and Mute
  • Very low profile desktop enclosure with a footprint of just 18x16cm.
  • Rugged steel chassis and stylish brushed aluminium cover


Technical Specifications

  • Input Level (max.): 21dBu
  • Output Level (max.): 21dBu
  • Dynamic Range: 115dB
  • Crosstalk: > 80dB
  • THD+N: 0,002%
  • Frequency Response: 20Hz - 20kHz +/- 0.2dB
  • Phase Response: 20Hz - 20kHz +/- 2degrees
  • Power Requirements: 100-240VAC (external) / 15 V, 1A DC
  • Dimension (W x H x D): 183 x 45 x 164 mm
  • Weight: 1.1 kg
